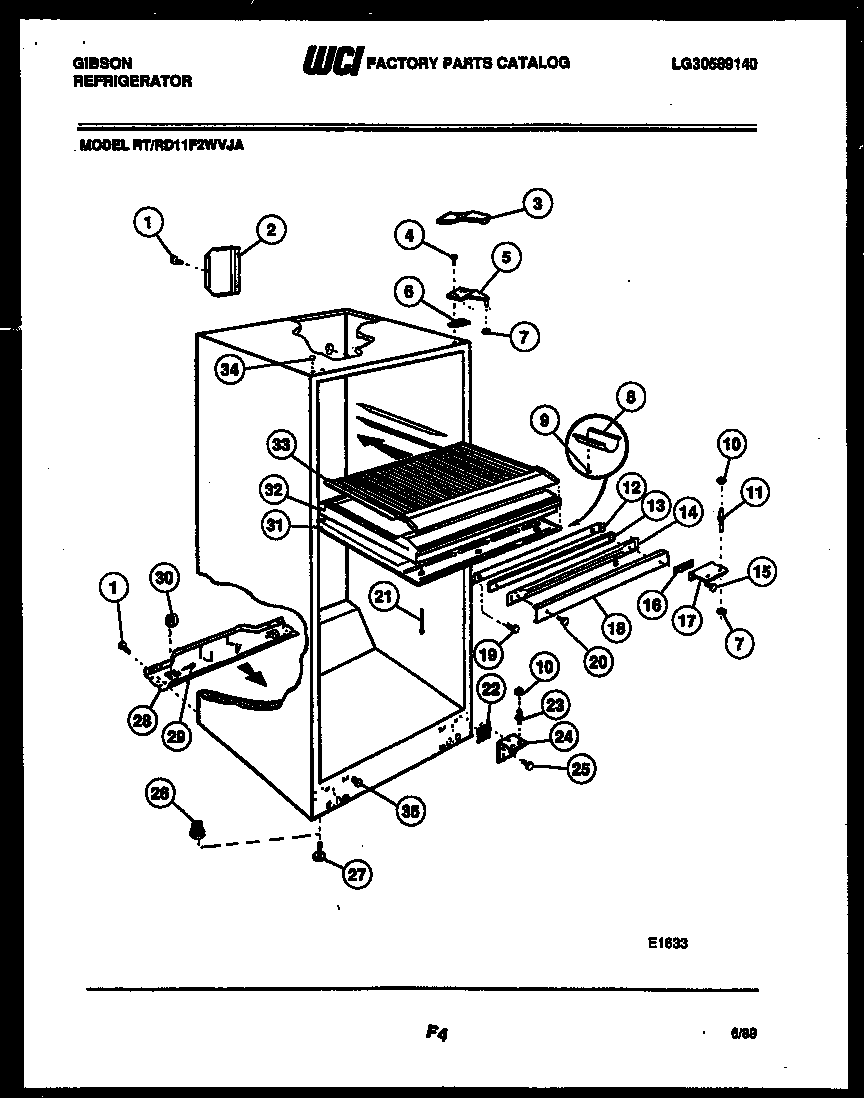

RD11F2WVJA 03 – CABINET PARTS

Products

Position	Product
1	SCREW (6)
2	WCI G185078
3	COVER-HINGE-WHITE
3	WCI 3001695
3	WCI 3001696
4	241710601 Frigidaire Refrigerator Screw
5	WCI G185080
6	WCI G185081
8	WCI G185083
9	WCI G185085
10	WCI G185082
11	WCI G142220
12	WCI G185087
13	WCI G89643
14	WCI 3204929
15	SCREW, BRACKET MOUNTING (4)
16	WCI G185091
17	WCI G185092
18	WCI G185150-11
18	WCI G185150-09
18	WCI G185150
19	WCI G185096
20	WCI 3001699
20	SCREW COVER-WHITE (NON-ILLUSTRATED)
20	SCREW COVER-ALMOND (NOT ILLUSTRATED)
21	WCI G185098
22	WCI G185099
23	5303001321 Frigidaire Refrigerator Lower Hinge Pin
24	WCI G185101
25	WCI G185102
26	WCI 3001700
27	WCI G185104
28	WCI G185105
29	WCI G185106
30	WCI G185107
31	WCI G185108
32	WCI G185109
33	WCI G185110
34	WCI G174747–01
34	WCI G174747-11
34	WCI G174747-09
35	WCI 3204939
35	WCI 3204941
35	WCI 3204940
