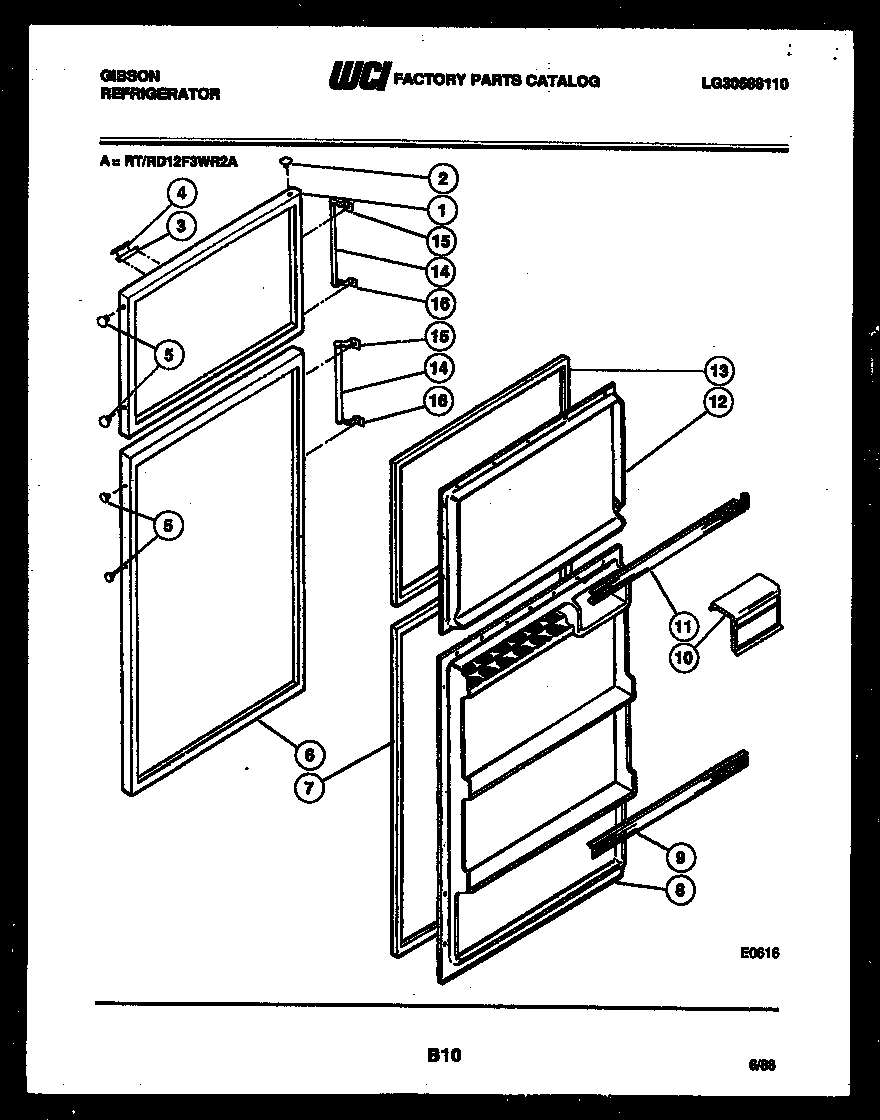

RD12F3WR2A 02 – DOOR PARTS

Products

Position	Product
*10446	WCI G185566
*10446	WCI G89643
1	WCI G181285
1	WCI G181285-08
1	WCI G181285-09
1	WCI G181285-10
1	WCI G181285-11
2	WCI G169332-10
2	WCI G169332-11
2	WCI G169332-09
2	WCI G169332-01
2	WCI G169332-08
3A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
3	WCI G175117-01
4	LABEL, UPPER
5	WCI G162977-10
5	WCI G162977-11
5	WCI G162977-08
5	240494001 Frigidaire Refrigerator Plug Button
5	WCI G162977-09
6	WCI G181289-08
6	WCI G181289-09
6	WCI G181289
6	WCI G181289-11
6A	BEARING, HINGE (3)
6	WCI G181289-10
7	WCI G186932-04
8	WCI G165701-01
9	WCI G164698-17
10	WCI G163222-40
11	WCI G164698-18
12A	5304455651 Frigidaire Refrigerator Screw
12	WCI G165702-01
13	WCI G186932-05
14	WCI G162938-02
15	END-HANDLE TOP
16	END-HANDLE BTM
