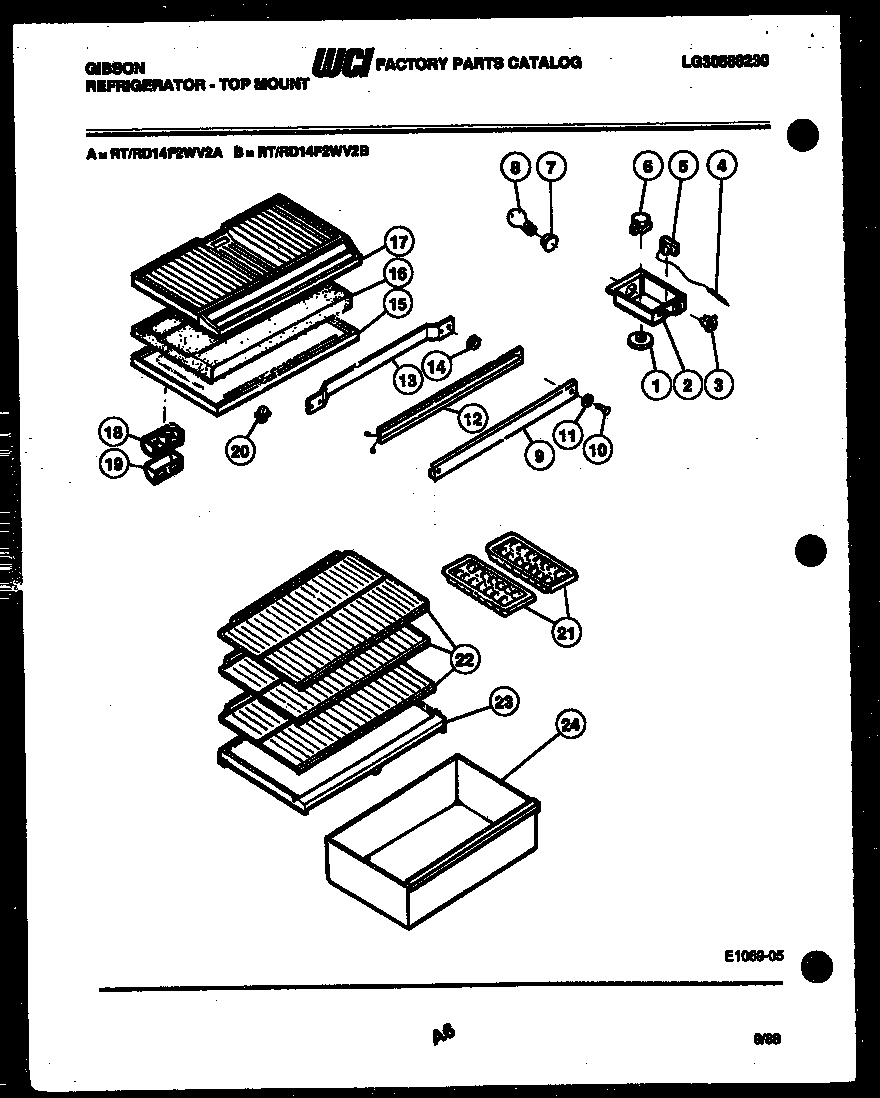

RD14F2WV2A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1KNOB-TEMP CONTROL
2WCI G174765-03
2B5304455650 Frigidaire Refrigerator Screw
2ALABEL-CONTROL BOX (NON-ILLUSTRATED)
3WCI G178402-05
4TUBE
5AWCI G107080
5CONTROL-COLD
6A5304455649 Frigidaire Refrigerator Screw
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7SOCKET LIGHT
8316538904 Frigidaire Oven Lamp Light
9WCI G174520-08
9MULLION
9WCI G174520-09
9WCI G174520-10
9WCI G174520-11
10SCREW, BRACKET MOUNTING (4)
11WASHER (2)
12WCI G187921
13CLAMP, MULLION MOUNTING
14SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
15TOP-REFRIGERATOR
15ASCREW (5)
16DIVIDER-COMPARTMENT
16AHARNESS, WIRING
17BOTTOM ( FREEZER )
18DEFLECTOR AIR
19WCI G162178
205309918806 Frigidaire Refrigerator Light Switch Door
21215667501 Frigidaire Refrigerator Ice Tray Primary
22SHELF (2)
23COVER-CRISPER
24WCI G162973-31
