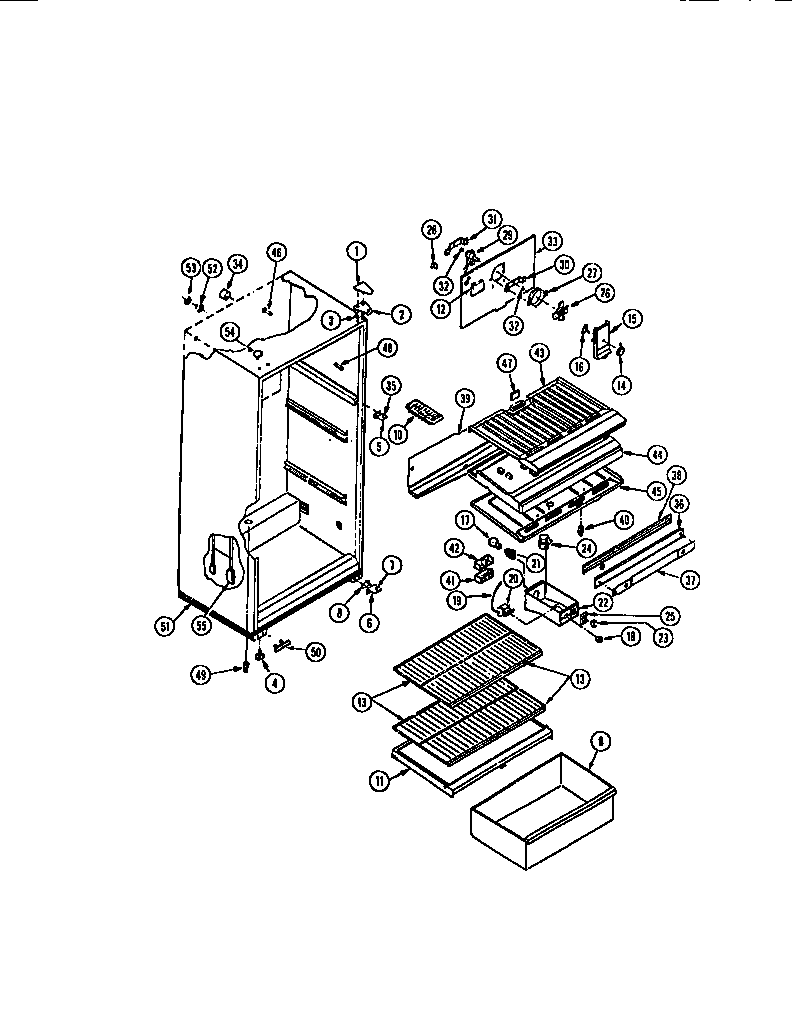

RD15F1DU2A 02 – CABINET

RD15F1DU2A 02 – CABINET

Written by

in

RD15F1DU2A 02 – CABINET

Products

PositionProduct
*64962BUTTON, PLUG, LINER (2)
*64961TAPPING PLATE (2)
*64963BUTTON, LINER
*64960TAPPING, PLATE (2)
1COVER, TOP HINGE, ALMOND
2A241710601 Frigidaire Refrigerator Screw
2BRACKET, TOP HINGE
3WCI G183861
3BWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
3AWCI G103903
4LEG-LEVELING (2)
4ANUT, ANCHOR (2)
5WCI G142220
6BRACKET, HINGE, LOWER
75303001321 Frigidaire Refrigerator Lower Hinge Pin
8SHIM, HINGE
9WCI G162973-31
10215667501 Frigidaire Refrigerator Ice Tray Primary
11COVER-CRISPER
12BUTTON-DECORATIVE
13SHELF (2)
14KNOB-DAMPER
15COVER-FAN
16ANUT, DAMPER MOUNTING
16DAMPER FAN COVER
17316538904 Frigidaire Oven Lamp Light
18KNOB
19TUBE
20AWCI G107080
20CONTROL-COLD
21SOCKET LIGHT
22AWCI G183060
22WCI G176722-03
23WCI G178402-02
24A5304455649 Frigidaire Refrigerator Screw
24215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25WCI G188379-01
265308000010 Frigidaire Refrigerator Evaporator Fan Blade
27RING, FAN ORIFICE
28WCI G164571
295300158289 Frigidaire Evaporator Fan Motor
30WCI G185302
31WCI G185303
32G187559 Frigidaire Refrigerator Bushing
33COVER-COIL
33ANUT, ORIFICE (2)
34TUBE, INSULATION (2)
35BRACKET, HINGE CENTER
35ASCREW, BRACKET MOUNTING (4)
36ASPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
36BWASHER (2)
36WCI G174520-11
37CLAMP, MULLION MOUNTING
38WCI G187921
39TROUGH-DRAIN
405309918806 Frigidaire Refrigerator Light Switch Door
41WCI G162178
42DEFLECTOR AIR
43BOTTOM ( FREEZER )
44DIVIDER-COMPARTMENT
45TOP-REFRIGERATOR
45ASCREW (5)
46WCI G163669
47WCI G182809
48TRIM CORNER-ALMOND
49CLIP (4)
50WCI G166912
51BASE-CABINET
52WCI G174733
53WCI G174734
54WCI G174747-11
55HARNESS, WIRING
