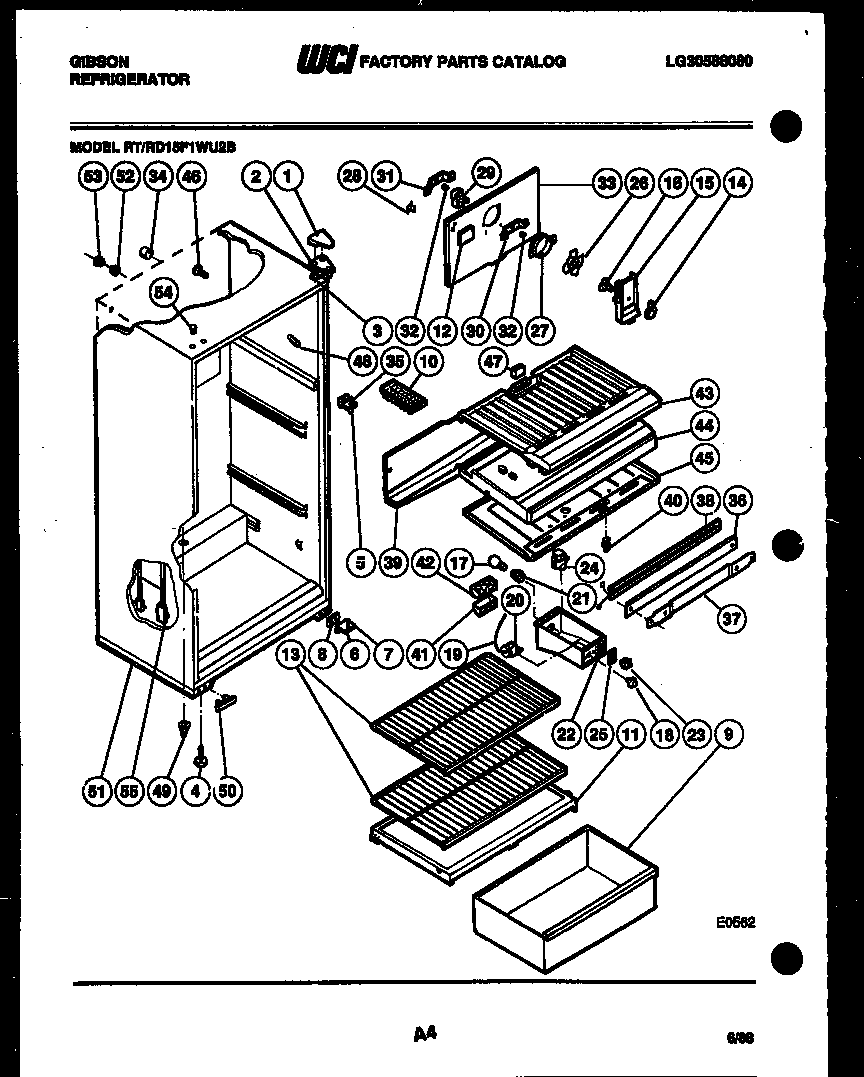

RD15F1WU2B 03 – CABINET PARTS

RD15F1WU2B 03 – CABINET PARTS

Written by

in

RD15F1WU2B 03 – CABINET PARTS

Products

PositionProduct
*10270TAPPING PLATE (2)
*10270BUTTON, LINER
1COVER HINGE, WHITE
1COVER HINGE, COFFEE
1COVER, TOP HINGE, AVOCADO
1COVER, TOP HINGE, ALMOND
1COVER HINGE, WHEAT
2BRACKET, TOP HINGE
2A241710601 Frigidaire Refrigerator Screw
3AWCI G103903
3AWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
3WCI G183861
4ANUT, ANCHOR (2)
4LEG-LEVELING (2)
5WCI G142220
6BRACKET, HINGE, LOWER
75303001321 Frigidaire Refrigerator Lower Hinge Pin
8SHIM, HINGE
9WCI G162973-31
10215667501 Frigidaire Refrigerator Ice Tray Primary
11COVER-CRISPER
12BUTTON-DECORATIVE
13SHELF (2)
14KNOB-DAMPER
15COVER-FAN
16ANUT, DAMPER MOUNTING
16DAMPER FAN COVER
17316538904 Frigidaire Oven Lamp Light
18KNOB
19TUBE
20CONTROL-COLD
20AWCI G107080
21SOCKET LIGHT
22WCI G176722-03
22AWCI G183060
23WCI G178402-02
24A5304455649 Frigidaire Refrigerator Screw
24215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25WCI G188379-01
265308000010 Frigidaire Refrigerator Evaporator Fan Blade
27RING, FAN ORIFICE
28WCI G164571
295300158289 Frigidaire Evaporator Fan Motor
30WCI G185302
31WCI G185303
32G187559 Frigidaire Refrigerator Bushing
33ACOVER-COIL
34TUBE, INSULATION (2)
35ASCREW, BRACKET MOUNTING (4)
35BRACKET, HINGE CENTER
36ASPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
36WCI G174520-08
36WCI G174520-09
36WCI G174520-10
36MULLION
36BWASHER (2)
37CLAMP, MULLION MOUNTING
38WCI G187921
39TROUGH-DRAIN
405309918806 Frigidaire Refrigerator Light Switch Door
41WCI G162178
42DEFLECTOR AIR
43BOTTOM ( FREEZER )
44DIVIDER-COMPARTMENT
45ASCREW (5)
45TOP-REFRIGERATOR
46WCI G163669
47PAD, FOAM (2)
48TRIM (4)
48TRIM, WHEAT
48WCI G162365-11
48TRIM, COFFEE
48TRIM-CAB CORNER-AVOC
49CLIP (4)
50WCI G166912
51BASE-CABINET
52WCI G174733
53WCI G174734
54WCI G171747-11
54WCI G171747-10
54WCI G174747-09
54WCI G174747-08
54WCI G174747–01
55HARNESS, WIRING
