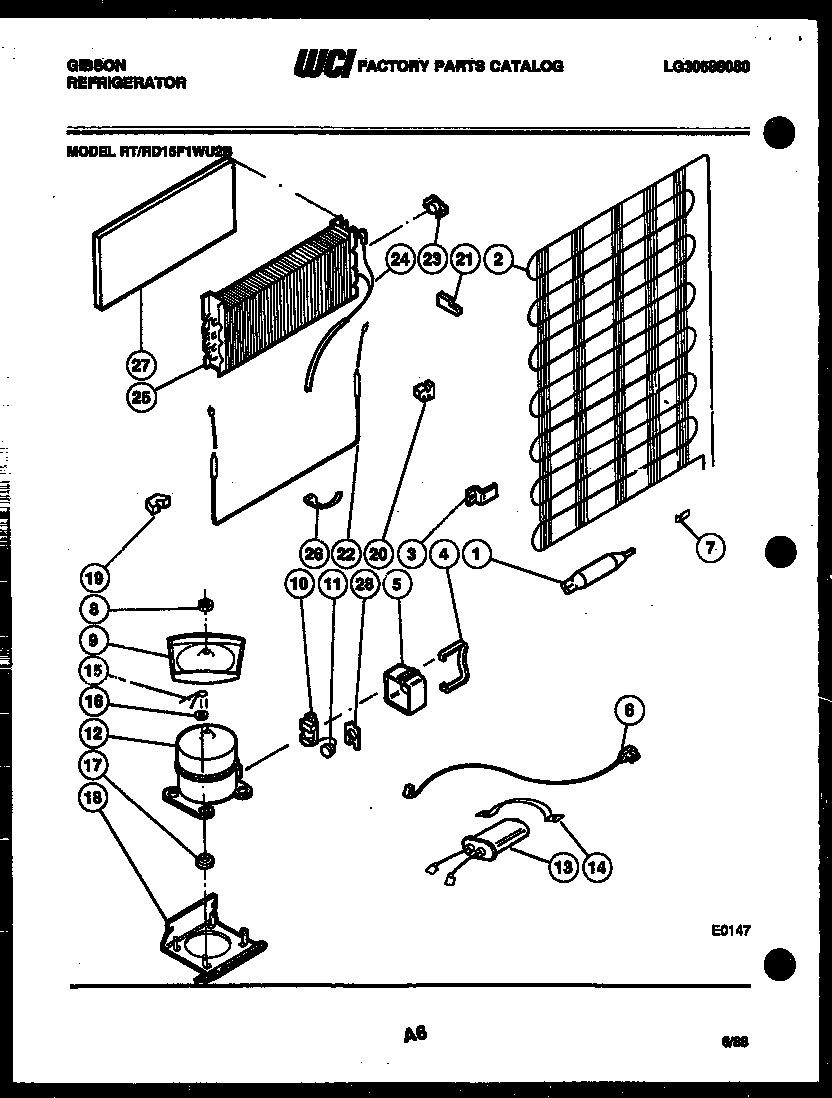

RD15F1WU2B 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*10275	WCI G183584
*10275	HARNESS-COMPRESSOR
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G178225
3	BRACKET-CONDENSER MOUNTING (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	CORD, SERVICE
7	WCI G101747
8	NUT, LOCK
9	DEFROST PAN & NUT
10	WCI G182225-18
11	WCI G188877
12	COMPRESSOR
13	WCI G188885-01
14	STRAP-CAPACITOR
15	CLIP, COMPRESSOR MOUNTING (4)
16	WASHER, COMPRESSOR MOUNTING (4)
17	218513300 Frigidaire Refrigerator Compressor Mount Grommet
18	WCI G162822
19	BLOCK, LEFT SIDE
20	BLOCK, EVAPORATOR, RH
21	PLUG, EVAPORATOR INSULATION BLOCK, R H
22	WCI G162432-02
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	WCI G163389
25	WCI G164563
26	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
27	INSULATOR
28	RETAINER, OVERLOAD
