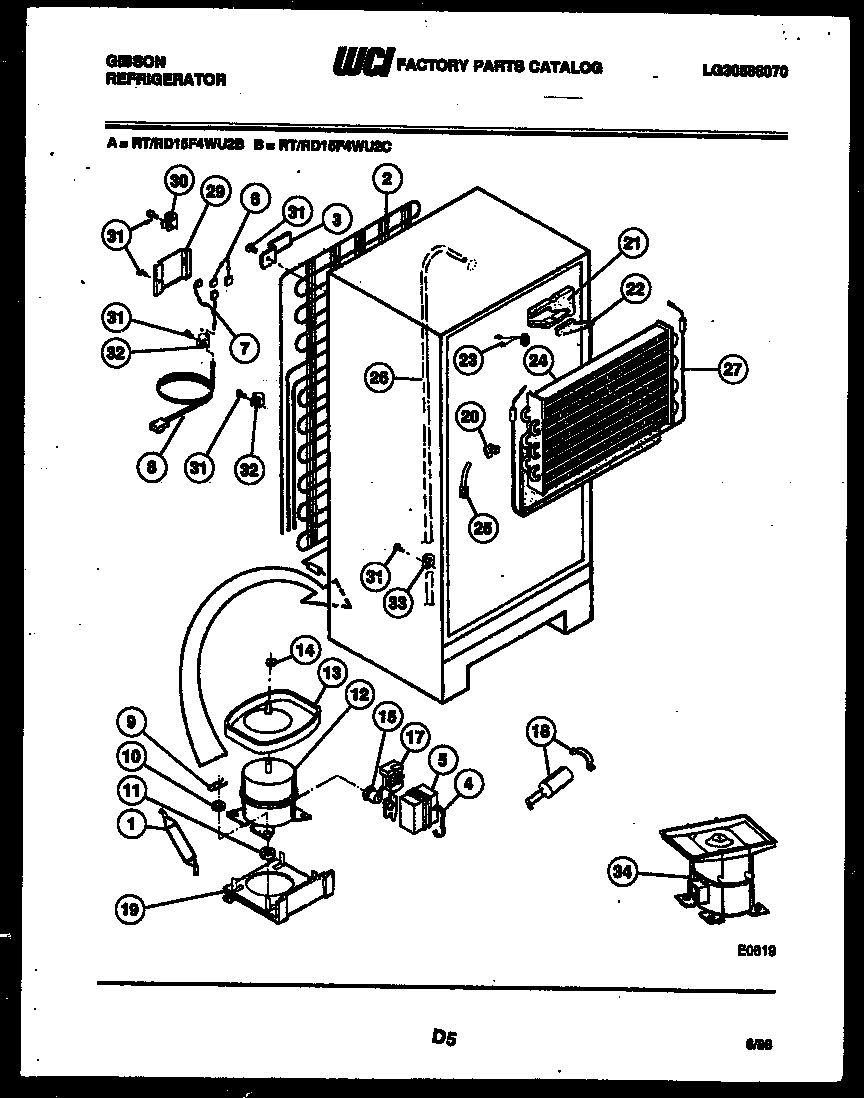

RD15F4WU2B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*10612HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G178225
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6HARNESS, WIRING
7HARNESS-COMPRESSOR
8CORD, SERVICE
9CLIP, COMPRESSOR MOUNTING (4)
10WASHER, COMPRESSOR MOUNTING (4)
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12COMPRESSOR
13DEFROST PAN & NUT
13A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
14NUT, LOCK
15WCI G188877
16RETAINER, OVERLOAD
17WCI G182225-18
18STRAP-CAPACITOR
18WCI G188885-01
19WCI G162822
20BLOCK, LEFT SIDE
21BLOCK, EVAPORATOR, RH
22PLUG, EVAPORATOR INSULATION BLOCK, R H
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI G164563
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI G163389
27WCI G162432-02
28INSULATOR
29WCI G183584
30CLAMP-CABLE
315304455651 Frigidaire Refrigerator Screw
325303001199 Frigidaire Refrigerator Wiring Harness Clamp
33240396801 Frigidaire Refrigerator Tube Clamp
34WCI G167234
