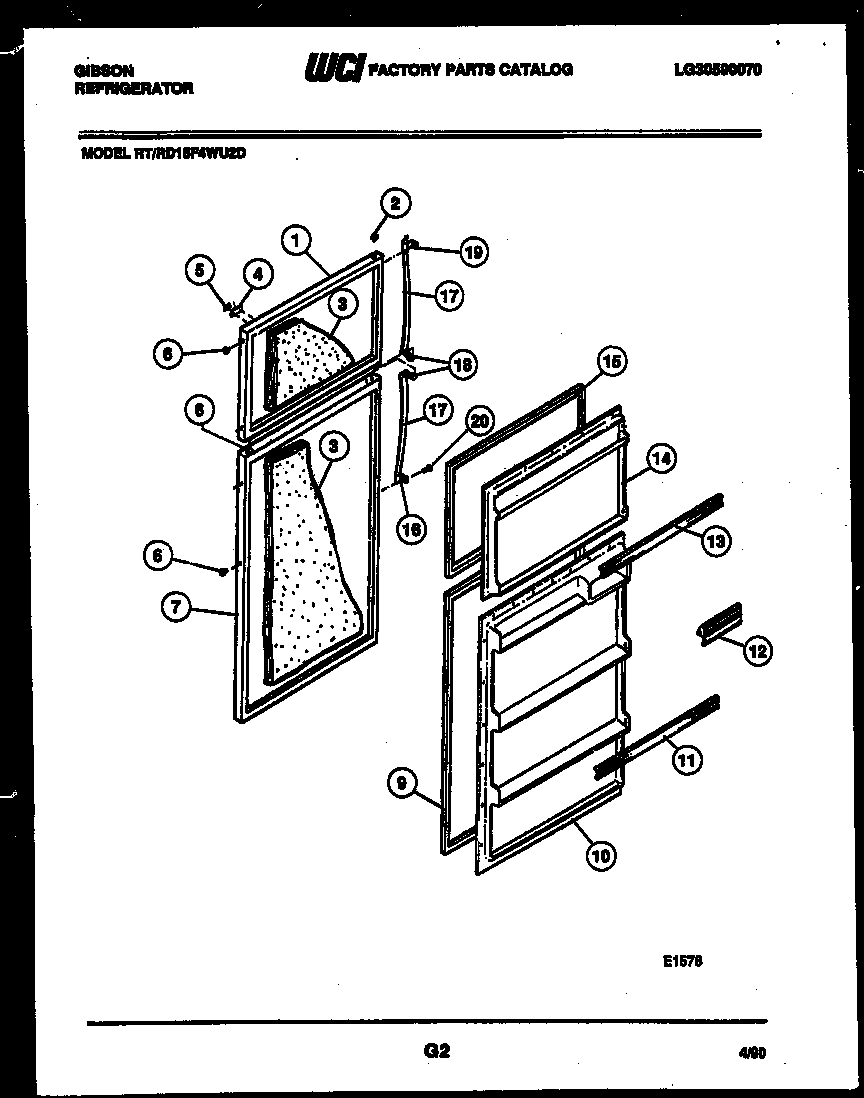

RD15F4WU2D 02 – DOOR PARTS

Products

PositionProduct
1WCI 5317142709
1WCI 5317142708
1WCI 5300171427
1WCI 5317142710
1WCI 5317142711
2BUTTON-WHEAT
2BUTTON-AVOCADO
2BUTTON PLUG-COFFEE
2PLUG-BUTTON, ALMOND, HINGE BRG HOLE
2PLUG-BUTTON, WHITE, HINGE BRG HOLE
3INSULATION-BULK (NON-ILLUSTRATED)
4ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
4NAMEPLATE
5LABEL UPPER
6PLUG-BUTTON, ALMOND, HANDLE/DR STOP
6BUTTON PLUG-COFFEE
6240494001 Frigidaire Refrigerator Plug Button
6BUTTON-AVOCADO
6BUTTON-WHEAT
7WCI 5317142608
7ABEARING-HINGE
7WCI 5317142610
7WCI 5317142609
7WCI 5317142611
7WCI 5300171426
9GASKET-REFRIGERATOR
10WCI G189034-02
11RACK-REFR DOOR (2)
12WCI 3015679
13WCI 5316469847
14WCI G188754-02
14A218843801 Frigidaire Refrigerator Screw
15WCI 5303001399
16BOTTOM HANDLE END CAP
17HANDLE-FRZR DOOR
18WCI 5303001296
19WCI 5303001297
20WCI 5308011745
