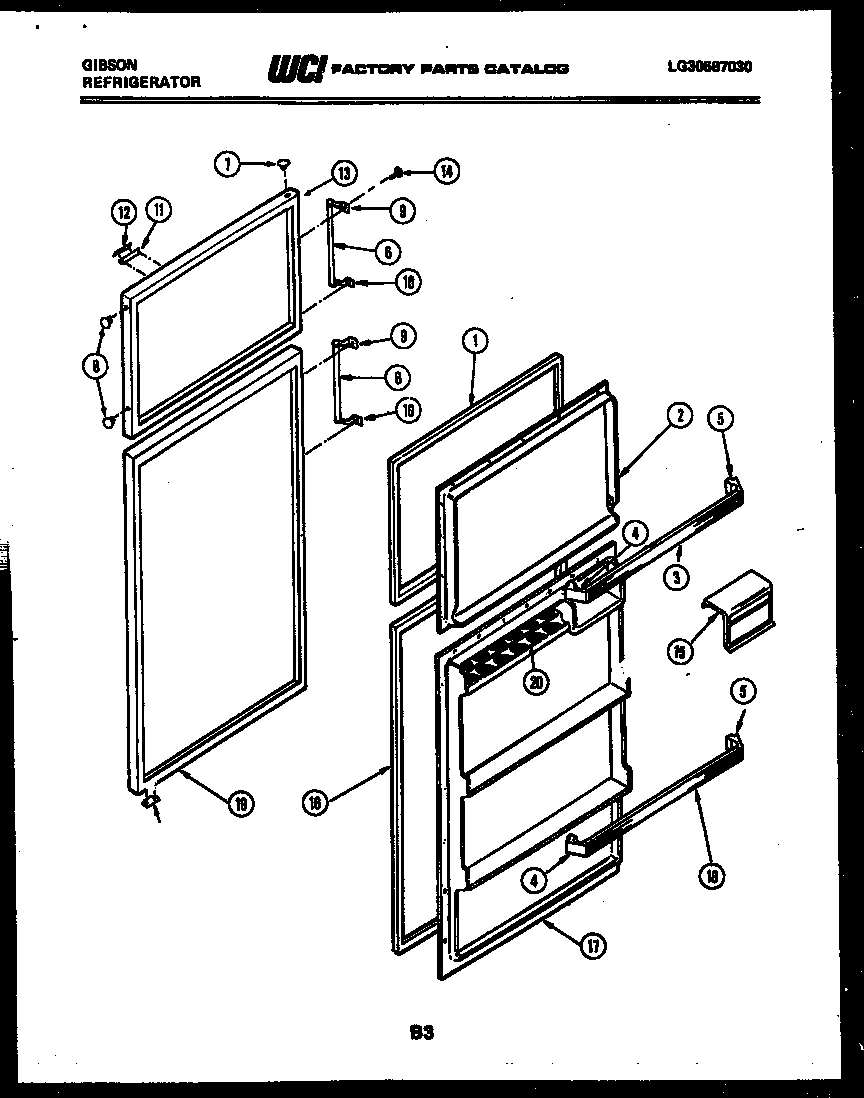

RD16F3WT3B 02 – DOOR PARTS

RD16F3WT3B 02 – DOOR PARTS

Written by

in

RD16F3WT3B 02 – DOOR PARTS

Products

PositionProduct
*68979KIT-DOOR CONV, AVOCADO
*68978WCI G168981-01
*68980WCI G168981-09
*68981WCI G168981-10
*68981WCI G168981-11
1GASKET-FREEZER
2PANEL-INNER FRZR
3WCI G161019-19
4SUPPORT LS (3)
5SUPPORT RS (3)
6WCI G162938-02
7WCI G169332-11
7WCI G169332-01
7WCI G169332-09
7WCI G169332-10
7WCI G169332-08
8240494001 Frigidaire Refrigerator Plug Button
8WCI G162977-10
8WCI G162977-09
8WCI G162977-11
8WCI G162977-08
9END-HANDLE TOP
10END-HANDLE BTM
11WCI G175117-01
12LABEL, UPPER
13WCI G182048-08
13WCI G182048
13WCI G182048-10
13WCI G182048-11
13WCI G182048-09
14WCI G185566
15WCI G161776-49
16218730603 Frigidaire Door Gasket
17PANEL-INNER DOOR, PC
17A5304455651 Frigidaire Refrigerator Screw
18WCI G161019-18
19WCI G182053
19WCI G182053-11
19WCI G182053-10
19WCI G182053-09
19ABEARING, HINGE (3)
19WCI G182053-08
20215817806 Frigidaire Refrigerator Egg Tray
