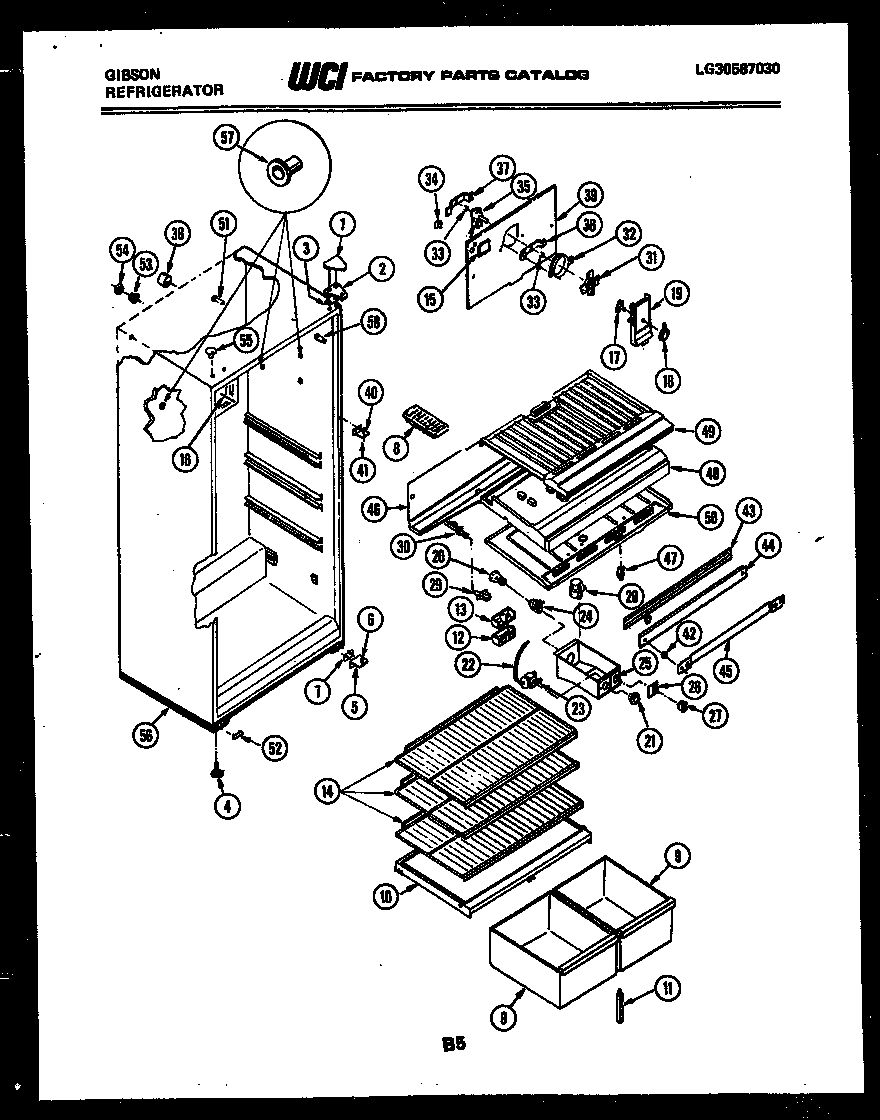

RD16F3WT3B 03 – CABINET PARTS

Products

PositionProduct
*69061HARNESS, WIRING
1COVER, TOP HINGE, AVOCADO
1COVER, TOP HINGE, ALMOND
1COVER HINGE, WHITE
1COVER HINGE, WHEAT
1COVER HINGE, COFFEE
2BRACKET, TOP HINGE
2CWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
2BWCI G103903
2A241710601 Frigidaire Refrigerator Screw
3WCI G183861
4NUT, ANCHOR (2)
4LEG-LEVELING (2)
5BRACKET, HINGE, LOWER
65303001321 Frigidaire Refrigerator Lower Hinge Pin
7SHIM, HINGE
8215667501 Frigidaire Refrigerator Ice Tray Primary
9WCI G178303-09
10COVER-CRISPER
11SUPPORT, CRISPER COVER
12WCI G162178
13DEFLECTOR AIR
14WCI G182056-01
15BUTTON-DECORATIVE
16WCI G186095-01
16A5304455650 Frigidaire Refrigerator Screw
17ANUT, DAMPER MOUNTING
17DAMPER FAN COVER
18KNOB-DAMPER
19WCI G163061-50
20316538904 Frigidaire Oven Lamp Light
21KNOB-TEMP CONTROL
22TUBE
23COLD CONTROL
24SOCKET LIGHT
25WCI G174765-03
26LABEL
27SWITCH SLIDE
28215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
285304455649 Frigidaire Refrigerator Screw
29SPOUT DRAIN TUBE
29APIN PUSH SPOUT (2)
30TUBE, DRAIN
30AWCI G101747
315308000010 Frigidaire Refrigerator Evaporator Fan Blade
32RING, FAN ORIFICE
33G187559 Frigidaire Refrigerator Bushing
34WCI G164571
355300158289 Frigidaire Evaporator Fan Motor
36WCI G185302
37WCI G185303
38TUBE, INSULATION (2)
39COVER-COIL
39ANUT, ORIFICE (2)
40BRACKET, HINGE CENTER
41ASCREW, BRACKET MOUNTING (4)
41WCI G142220
41BWASHER (2)
42SPACER, MULLION (2)
43WCI G187921
44WCI G490086
44WCI G490086-10
44WCI G490086-11
44WCI G490086-09
44MULLION, AVOCADO
45CLAMP, MULLION MOUNTING
46TROUGH-DRAIN
475309918806 Frigidaire Refrigerator Light Switch Door
48DIVIDER, CENTER
49BOTTOM, FC
50TOP PC
50ASCREW (5)
51WCI G163669
52WCI G166912
53WCI G174733
54WCI G174734
55WCI G174747-11
55WCI G174747–01
55WCI G174747-09
55WCI G174747-08
55WCI G174747-10
56CABINET BASE
575304500407 Frigidaire Refrigerator Shelf Mounting Grommet
575304509705 Frigidaire Refrigerator Grommet
58TRIM CORNER (4), AVOCADO
58WCI G179684-09
58WCI G179684-01
58TRIM-CORNER, ALMOND (4)
58WCI G179684-10
