RD16F3WT3B 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

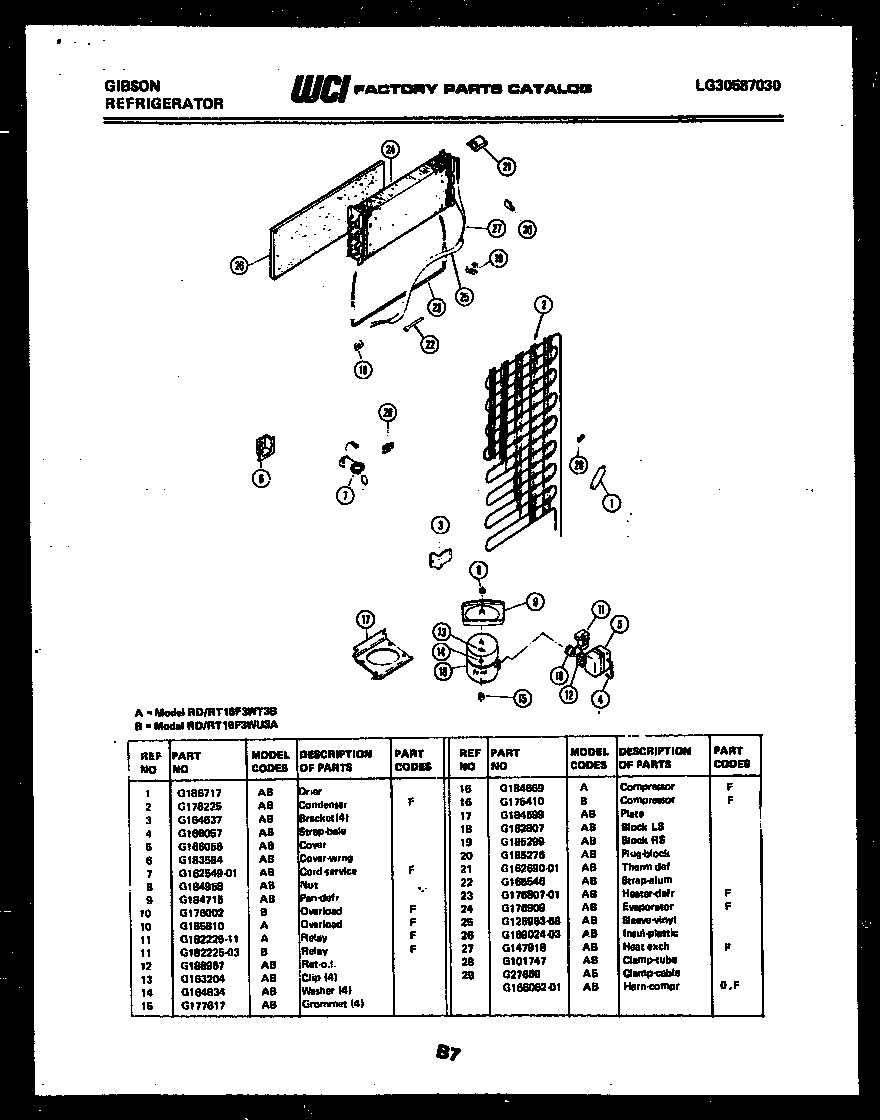

PositionProduct
*69083HARNESS-COMPRESSOR
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G178225
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI G183584
7CORD, SERVICE
8WCI G184958
9DEFROST PAN & NUT
10WCI G185810
11WCI G182225-11
12RETAINER, OVERLOAD
13CLIP, COMPRESSOR MOUNTING (4)
14WASHER, COMPRESSOR MOUNTING (4)
15218513300 Frigidaire Refrigerator Compressor Mount Grommet
16COMPRESSOR WITH ELECTRICALS
17PLATE
18BLOCK, EVAPORATOR, LH
19BLOCK, EVAPORATOR, RH
20PLUG, EVAPORATOR INSULATION BLOCK, R H
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
225308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
23HEATER, DEFROST
24EVAPORATOR
25WCI G125963-68
26INSULATOR
27HEAT, EXCHANGE
28WCI G101747
295303001199 Frigidaire Refrigerator Wiring Harness Clamp
