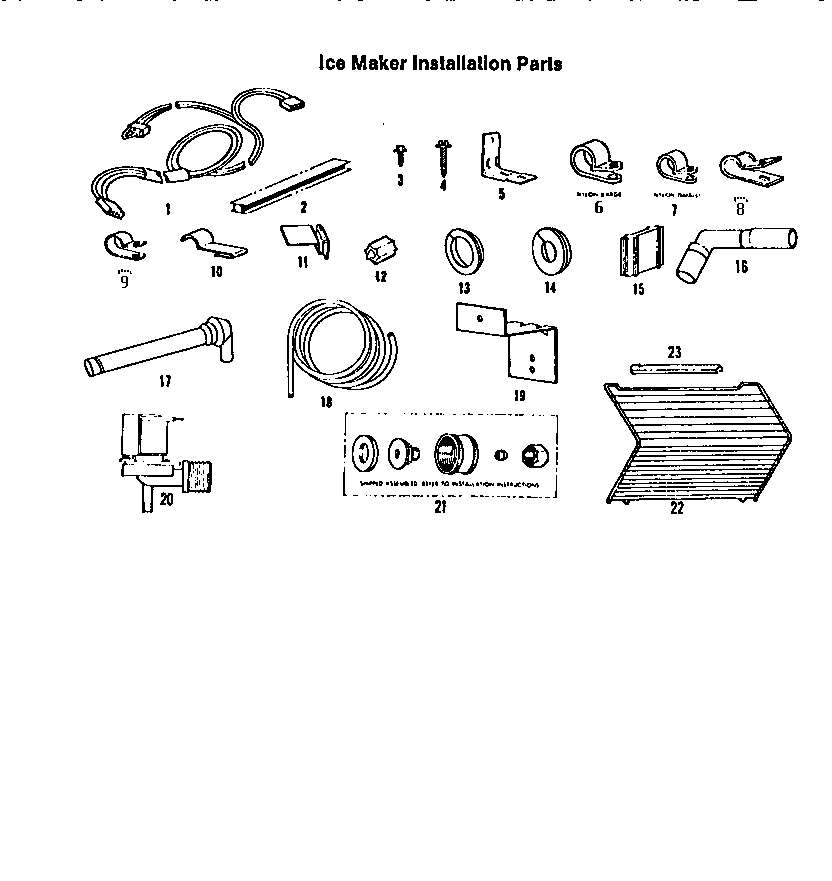

RD17F2WT3A 01 – ICE MAKER INSTALLATION

Products

PositionProduct
1WCI G185266
25305877995 Frigidaire Refrigerator P-1 Sealing Strip
35308000039 Frigidaire Refrigerator Screw
45304455852 Frigidaire Refrigerator Screw
55303001199 Frigidaire Refrigerator Wiring Harness Clamp
6240396801 Frigidaire Refrigerator Tube Clamp
7CLAMP-TUBE (NON-ILLUSTRATED)
85304455846 Frigidaire Refrigerator Clamp
95303001193 Frigidaire Refrigerator Clamp
10CLIP, HARNESS LOCATION
11WCI G154167
12NUT, INLET TO SOLENOID VALVE
13WCI G171079
145303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI G160347
16WCI G165773
17215456100 Frigidaire Refrigerator Water Inlet Tube
185308010366 Frigidaire Refrigerator P1-Water Inlet Tube
19BRACKET, VALVE TO REAR PANEL
20WCI G159377
21WCI G159415
22WCI G163311
22BSCREW – SUPPORT TO LINER (8)
22ASUPPORT, SHELF (8)
23WCI G163312
