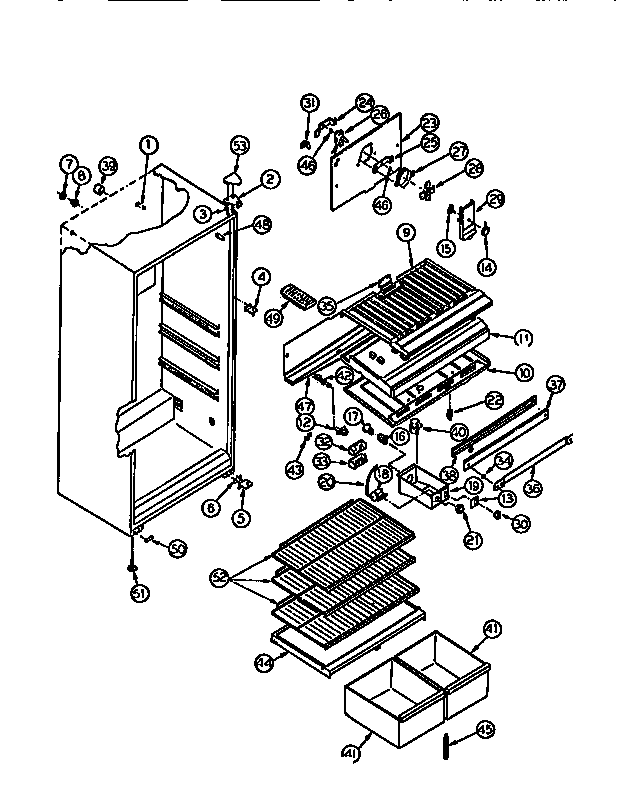

RD17F2WT3A 04 – CABINET PARTSadmin2025-04-26T08:42:45+00:00RD17F2WT3A 04 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | WCI G163669 |
| 2 | BRACKET, TOP HINGE |
| 2A | 241710601 Frigidaire Refrigerator Screw |
| 2C | WCI G174747--01 |
| 2B | WCI G103903 |
| 3 | WCI G183861 |
| 4B | WCI G142220 |
| 4 | BRACKET, HINGE CENTER |
| 4A | SCREW, BRACKET MOUNTING (4) |
| 5A | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 5C | TAPPING PLATE (2) |
| 5 | BRACKET, HINGE, LOWER |
| 6 | SHIM, HINGE |
| 7 | WCI G174733 |
| 8 | WCI G174734 |
| 9 | BOTTOM, FC |
| 10 | TOP PC |
| 10A | SCREW (5) |
| 11 | DIVIDER, CENTER |
| 12A | PIN PUSH SPOUT (2) |
| 12 | SPOUT DRAIN TUBE |
| 13 | LABEL-CONTROL BOX (NON-ILLUSTRATED) |
| 14 | KNOB-DAMPER |
| 15A | NUT, DAMPER MOUNTING |
| 15 | DAMPER FAN COVER |
| 16 | SOCKET LIGHT |
| 17 | 316538904 Frigidaire Oven Lamp Light |
| 18 | CONTROL |
| 18A | WCI G107080 |
| 19 | WCI G174765-03 |
| 19A | 5304455649 Frigidaire Refrigerator Screw |
| 20 | TUBE |
| 21 | KNOB-TEMP CONTROL |
| 22 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 23 | COVER-COIL |
| 24 | BRACKET, REAR MOTOR MOUNTING |
| 25 | BRACKET, FRONT MOTOR MOUNTING |
| 26 | 5300158289 Frigidaire Evaporator Fan Motor |
| 27A | NUT, ORIFICE (2) |
| 27 | RING, FAN ORIFICE |
| 28A | 5304455650 Frigidaire Refrigerator Screw |
| 28 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 29 | WCI G163061-81 |
