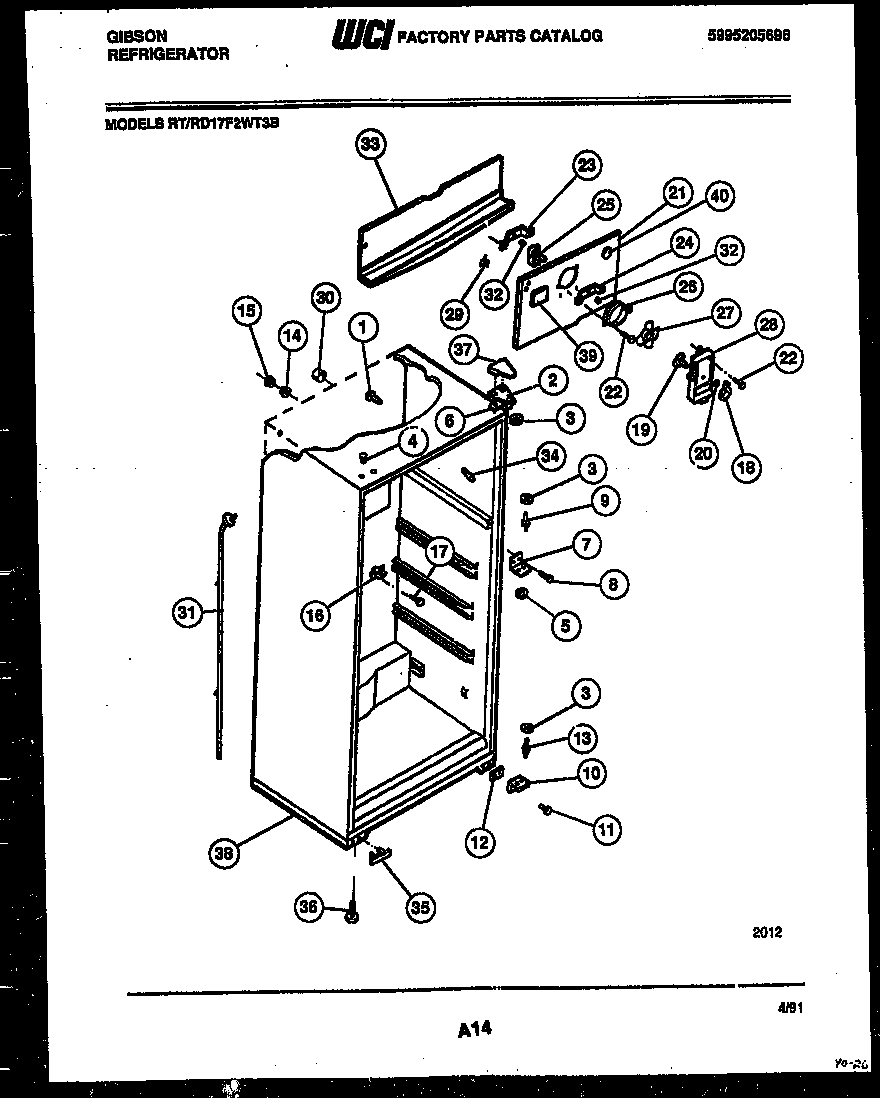

RD17F2WT3B 03 – CABINET PARTS

RD17F2WT3B 03 – CABINET PARTS

Written by

in

RD17F2WT3B 03 – CABINET PARTS

Products

PositionProduct
*43457PLUG, BUTTON, CABINET LINER (NI)
*43457TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*434575304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*434575304509705 Frigidaire Refrigerator Grommet
1SUPPORT-COIL COVER
2BRACKET-UPPER HINGE
3WASHER, .34 X .62 X .05, NYLON
4BUTTON-HINGE-WHEAT
4PLUG, COFFEE
4PLUG-BUTTON, ALMOND, UPR HINGE HOLES
4PLUG-BUTTON, WHITE
4BUTTON-HINGE-AVOCADO
5WASHER, .28 X .62 X .19, NYLON
6SHIM – UPPER HINGE
7BRACKET-CTR HINGE
8WCI 5308012258
9WCI 5308000184
10HINGE BRACKET – BOTTOM
11241710601 Frigidaire Refrigerator Screw
12SHIM-LOWER HINGE
135303001321 Frigidaire Refrigerator Lower Hinge Pin
14WCI 5303001286
15WCI 5303001287
16WCI 5308000056
17WCI 5303001361
18WCI 5308000081
19DAMPER-FAN COVER
20Nut,push-on
21ANUT-SPEED (2)
21WCI 3001527
225304455650 Frigidaire Refrigerator Screw
23WCI 5303001227
24WCI 5303001226
255300158289 Frigidaire Evaporator Fan Motor
26RING-FAN ORIFICE
275308000010 Frigidaire Refrigerator Evaporator Fan Blade
28WCI 5303001334
29WCI 5308000107
29A5304455651 Frigidaire Refrigerator Screw
30TUBE-RUBBER
31WCI 5303210377
31ASEAL RING-DRAIN TUBE
32G187559 Frigidaire Refrigerator Bushing
33TROUGH-DRAIN
34TRIM-CABINET CORNER, ALMOND
34TRIM-CABINET CORNER, WHITE
34WCI 5303202339
34WCI 5303202338
34CORNER
35COVER-HOLE, LOWER HINGE
36AWCI 5308003584
36SCREW-LEVELING (4)
37COVER – HINGE-WHEAT
37COVER-UPPER HINGE, WHITE
37COVER-HINGE-AVOCADO
37WCI 5303001666
37COVER-UPPER HINGE, ALMOND
38WCI 08010091
39BUTTON – DECORATIVE PLUG
40WCI 5303203044
