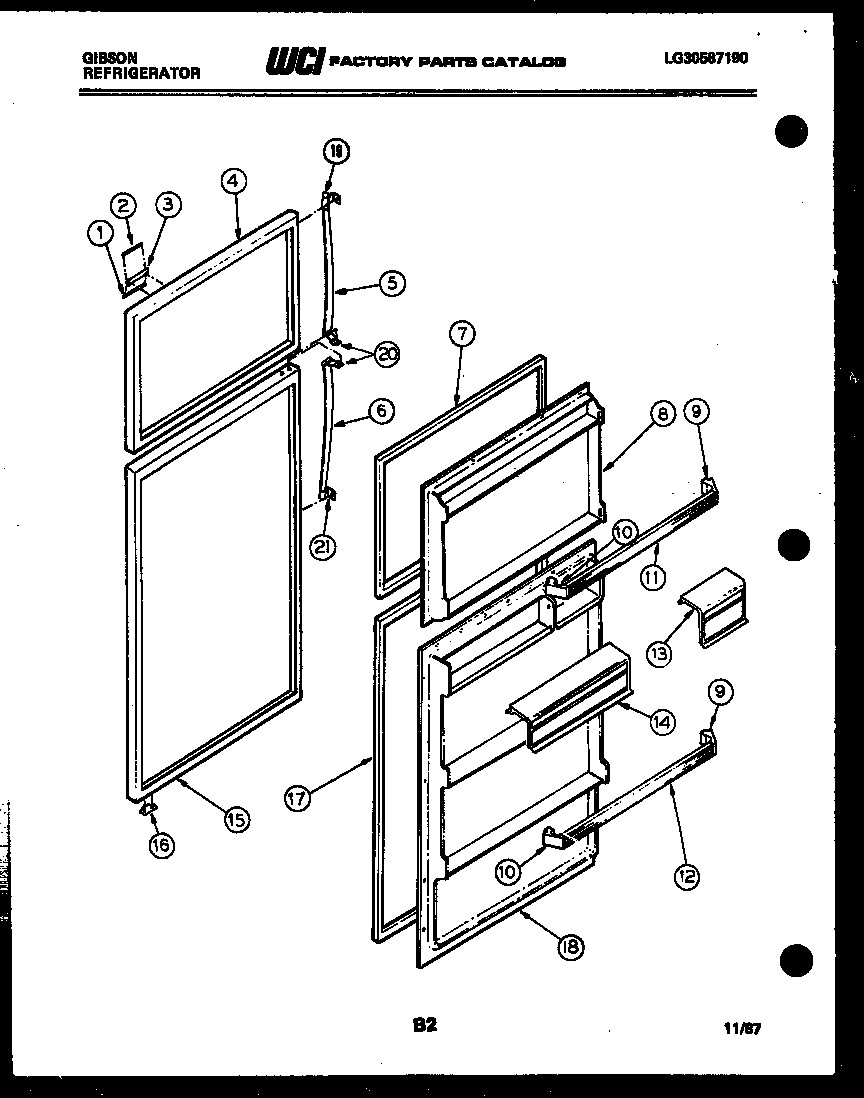

RD17F2WU3A 02 – DOOR PARTSadmin2025-04-26T08:42:23+00:00RD17F2WU3A 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *56149 | 240494001 Frigidaire Refrigerator Plug Button |
| *56151 | WCI G162977-09 |
| *56151 | WCI G162977-10 |
| *56146 | WCI G169332-01 |
| *56148 | WCI G169332-09 |
| *56148 | WCI G169332-10 |
| *56149 | WCI G169332-11 |
| *56155 | WCI G168981-11 |
| *56152 | WCI G168981-01 |
| *56153 | WCI G168981-09 |
| *56147 | WCI G169332-08 |
| *56154 | WCI G168981-10 |
| *56153 | KIT-DOOR CONV, AVOCADO |
| *56150 | WCI G162977-08 |
| *56152 | WCI G162977-11 |
| 1 | LABEL, LOWER |
| 2 | LABEL, UPPER |
| 3 | NAMEPLATE |
| 3A | TAPE-FRAME MOUNTING (NON-ILLUSTRATED) |
| 4 | PANEL, OUTER, WHEAT |
| 4 | PANEL, OUTER, WHITE |
| 4 | PANEL, OUTER, ALMOND |
| 4 | PANEL, OUTER, AVOCADO |
| 4 | PANEL, OUTER, COFFEE |
| 6 | WCI G170495-24 |
| 6A | WCI G185566 |
| 7 | GASKET-FREEZER |
| 8 | WCI G184557-01 |
| 9 | SUPPORT RS (4) |
| 10 | SUPPORT LS (4) |
| 11 | WCI G162887-15 |
| 12 | WCI G162887-12 |
| 13 | WCI 3015414 |
| 14 | WCI G178501-11 |
| 15 | PANEL, OUTER, ALMOND |
| 15 | PANEL, OUTER, WHITE |
| 15 | PANEL, OUTER, COFFEE |
| 15 | PANEL, OUTER, AVOCADO |
| 15A | BEARING, HINGE (3) |
| 15 | PANEL, OUTER, WHEAT |
| 16 | STOP, DOOR. PC & FC (2) |
| 17 | 218730603 Frigidaire Door Gasket |
| 18 | WCI G184558-01 |
| 18A | 5304455651 Frigidaire Refrigerator Screw |
| 19 | WCI G179800 |
| 20 | WCI G187329-01 |
| 21 | WCI G179801 |
