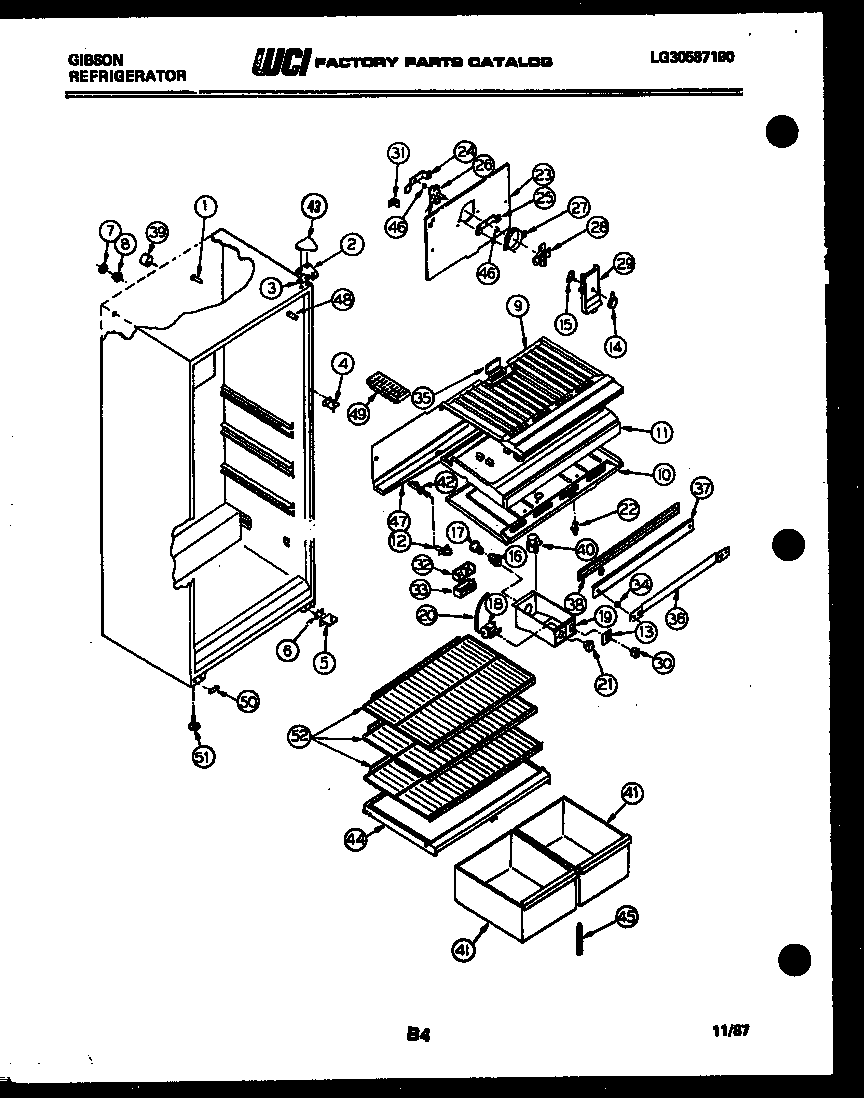

RD17F2WU3A 03 – CABINET PARTS

RD17F2WU3A 03 – CABINET PARTS

Written by

in

RD17F2WU3A 03 – CABINET PARTS

Products

Position	Product
*56246	CABINET BASE
*56249	BUTTON-DECORATIVE
*56250	BUTTON, PLUG, LINER (2)
*56247	HARNESS, WIRING
1	WCI G163669
2	BRACKET, TOP HINGE
2C	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
2B	WCI G174747-11
2A	WCI G103903
2B	WCI G174747-08
2B	WCI G174747–01
2B	WCI G174747-09
2B	WCI G174747-10
3	WCI G183861
4B	WCI G142220
4A	SCREW, BRACKET MOUNTING (4)
4	BRACKET, HINGE CENTER
5B	TAPPING PLATE (2)
5A	5303001321 Frigidaire Refrigerator Lower Hinge Pin
5	BRACKET-HINGE
6	SHIM, HINGE
7	WCI G174733
8	WCI G174734
9	BOTTOM, FC
10A	SCREW (5)
10	TOP PC
11	DIVIDER, CENTER
12	SPOUT DRAIN TUBE
13	LABEL-CONTROL BOX (NON-ILLUSTRATED)
14	KNOB-DAMPER
15	DAMPER FAN COVER
15A	NUT, DAMPER MOUNTING
16	SOCKET LIGHT
17	316538904 Frigidaire Oven Lamp Light
18	CONTROL
18A	WCI G107080
19	WCI G174765-03
20	TUBE
21	KNOB-TEMP CONTROL
22	5309918806 Frigidaire Refrigerator Light Switch Door
23	COVER-COIL
24	WCI G185303
25	WCI G185302
26	5300158289 Frigidaire Evaporator Fan Motor
27	RING, FAN ORIFICE
27A	NUT, ORIFICE (2)
28A	5304455650 Frigidaire Refrigerator Screw
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	WCI G163061-81
30	WCI G178402-05
31	WCI G164571
31A	5304455651 Frigidaire Refrigerator Screw
32	DEFLECTOR AIR
33	WCI G162178
34A	WASHER (2)
34	SPACER, MULLION (2)
35	PAD, FOAM (2)
36	CLAMP, MULLION MOUNTING
37	WCI G490086-09
37	WCI G490086-10
37	WCI G490086-01
37	WCI G490086-11
37	MULLION, AVOCADO
38	HTR, CENTER RAIL
39	TUBE, INSULATION (2)
40	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
40A	5304455649 Frigidaire Refrigerator Screw
41	PAN-SMALL LS
41	PAN-CRISPER
42	TUBE, DRAIN
43	COVER, TOP HINGE, AVOCADO
43	COVER, TOP HINGE, ALMOND
43	COVER HINGE, WHITE
43	COVER HINGE, WHEAT
43	COVER HINGE, COFFEE
44	COVER-CRISPER
45	SUPPORT, CRISPER COVER
46	G187559 Frigidaire Refrigerator Bushing
47	TROUGH-DRAIN
48	WCI G179684-09
48	WCI G179684-10
48	WCI G179684-01
48	TRIM-CORNER, ALMOND (4)
48	TRIM CORNER (4), AVOCADO
49	215667501 Frigidaire Refrigerator Ice Tray Primary
50	WCI G166912
51	LEG-LEVELING (2)
51A	NUT, ANCHOR (2)
52	SHELF
