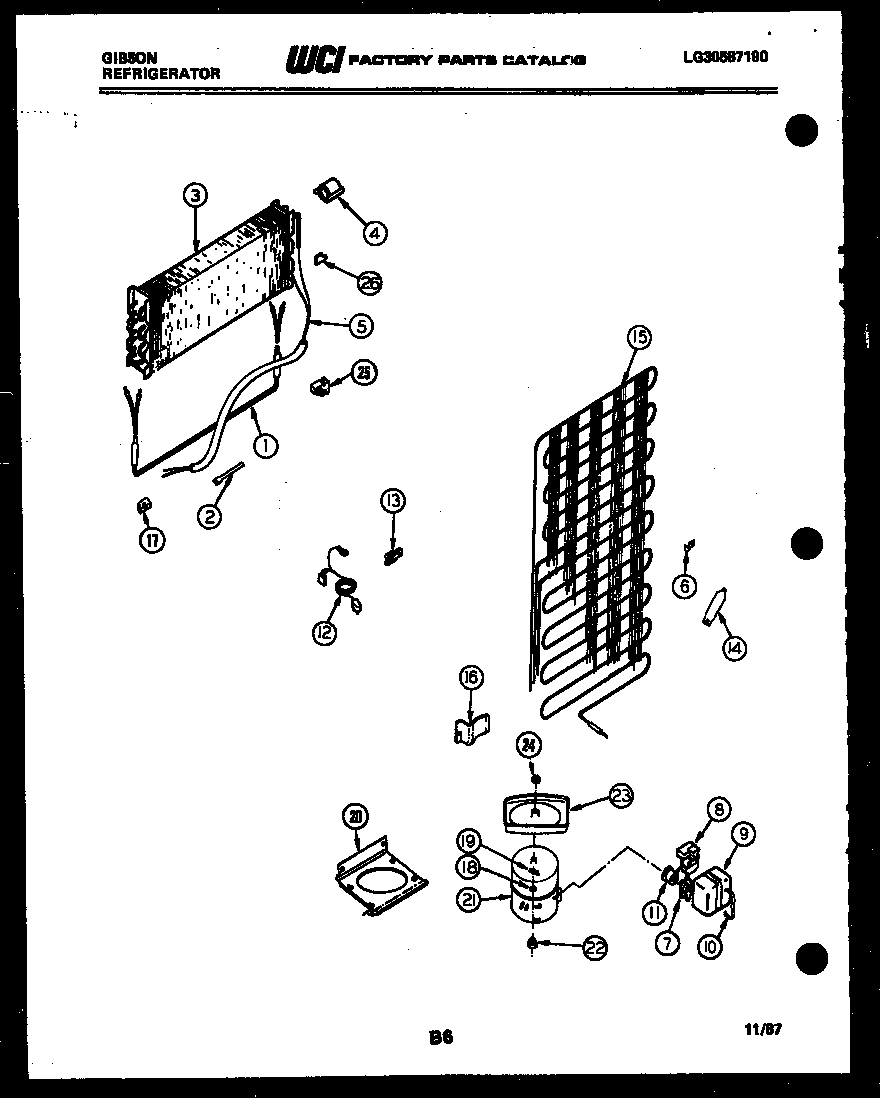

RD17F2WU3A 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*56277HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1HEATER, DEFROST
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5HEAT-EXCH
6CLAMP-TUBE (NON-ILLUSTRATED)
7RETAINER, OVERLOAD
8WCI G182225-03
105303006412 Frigidaire Refrigerator Cover Mounting Strap
11WCI G176002
12CORD, SERVICE
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
14A5304455651 Frigidaire Refrigerator Screw
145303305677 Frigidaire Replacement Filter Dryer Filters
14BWASHER
15WCI G178225
16BRACKET-CONDENSER MOUNTING (4)
17BLOCK, LEFT SIDE
18WASHER, COMPRESSOR MOUNTING (4)
19CLIP, COMPRESSOR MOUNTING (4)
20PLATE
21COMPRESSOR WITH ELECTRICALS
22218513300 Frigidaire Refrigerator Compressor Mount Grommet
23DEFROST PAN & NUT
24NUT, LOCK
25BLOCK, EVAPORATOR, RH
26PLUG, EVAPORATOR INSULATION BLOCK, R H
