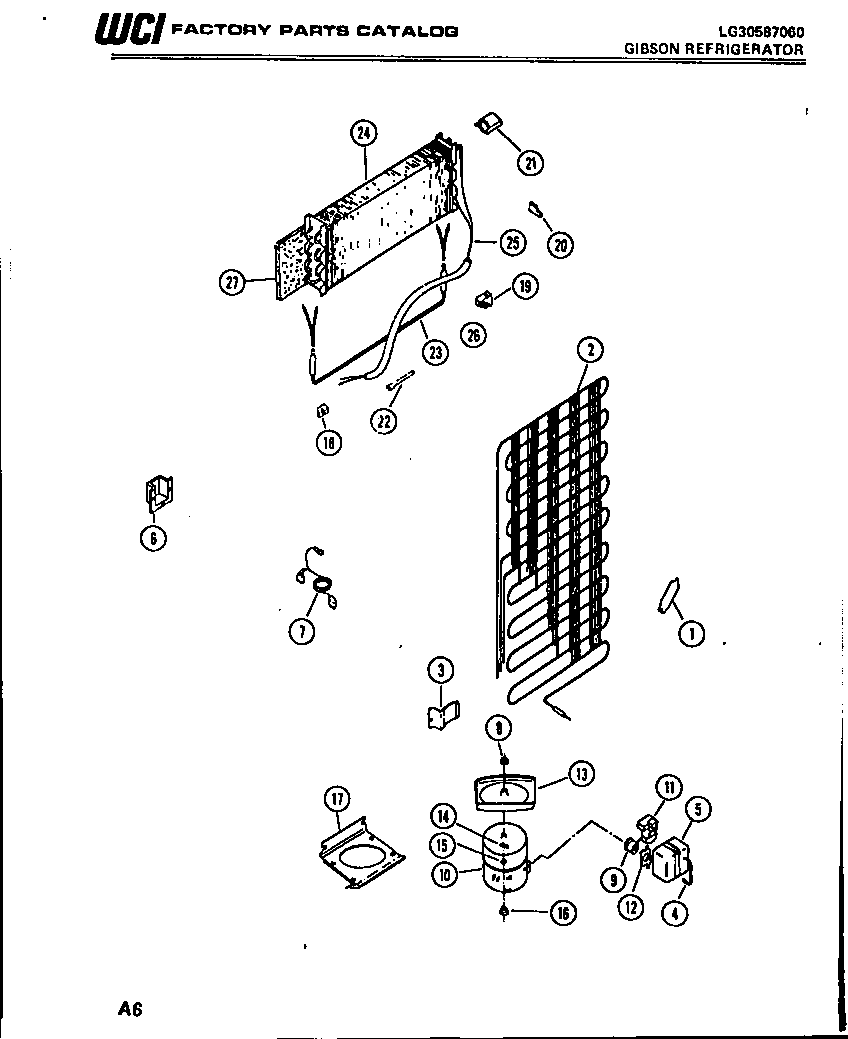

RD17F3DT3A 04 – SYSTEM PARTS

Products

Position	Product
*93568	HARNESS-COMPRESSOR
*93571	WCI G182730-01
*93569	HOT TUBE REPAIR KIT
*93570	WCI G189229-07
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G178225
3	BRACKET-CONDENSER MOUNTING (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	WCI G183584
6A	CORD, SERVICE
8	NUT, LOCK
9	WCI G176002
10	COMPRESSOR WITH ELECTRICALS
11	WCI G182225-03
12	RETAINER, OVERLOAD
13	DEFROST PAN & NUT
14	CLIP, COMPRESSOR MOUNTING (4)
15	WASHER, COMPRESSOR MOUNTING (4)
16	218513300 Frigidaire Refrigerator Compressor Mount Grommet
17	PLATE
18	WCI G157807
19	BLOCK, EVAPORATOR, RH
20	PLUG, EVAPORATOR INSULATION BLOCK, R H
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
23	HEATER, DEFROST
24	EVAPORATOR
25	HEAT, EXCHANGE
26	WCI G125963-68
27	INSULATOR
