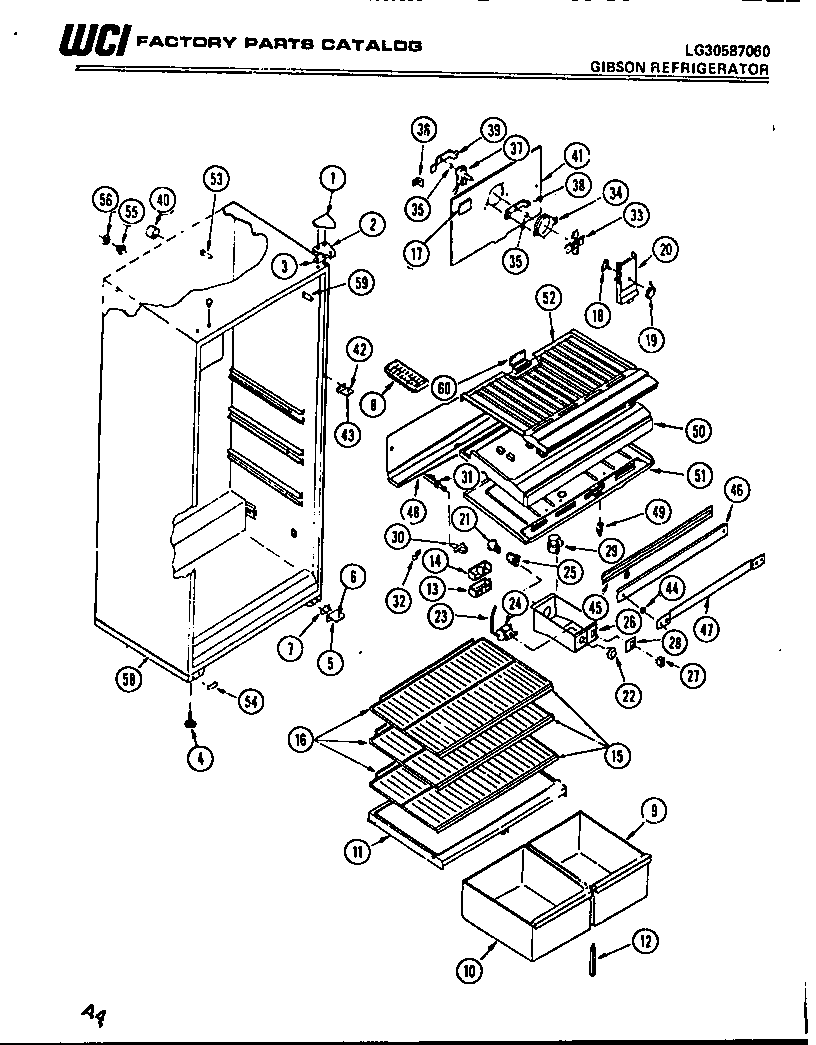

RD17F3DT3B 03 – CABINET PARTS

Products

PositionProduct
*93565BUTTON, PLUG, LINER (2)
*93567BUTTON, LINER
*93566HARNESS, WIRING
1COVER, TOP HINGE, ALMOND
2BRACKET, TOP HINGE
2CWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
2A241710601 Frigidaire Refrigerator Screw
2BWCI G103903
3WCI G183861
4LEG-LEVELING (2)
4ANUT, ANCHOR (2)
5BRACKET, HINGE, LOWER
65303001321 Frigidaire Refrigerator Lower Hinge Pin
7SHIM, HINGE
8WCI G156376
9PAN-CRISPER
10PAN-SMALL LS
11COVER-CRISPER
12SUPPORT, CRISPER COVER
13WCI G162178
14DEFLECTOR AIR
15WCI G172410-04
16SHELF
17BUTTON-DECORATIVE
18DAMPER FAN COVER
18ANUT, DAMPER MOUNTING
19KNOB-DAMPER
20WCI G163061-50
21316538904 Frigidaire Oven Lamp Light
22KNOB
23TUBE
24AWCI G107080
24COLD CONTROL
25SOCKET LIGHT
26WCI G176722-03
27WCI G178402-02
28WCI G188379-01
29A5304455649 Frigidaire Refrigerator Screw
29215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
30SPOUT DRAIN TUBE
30APIN PUSH SPOUT (2)
31TUBE, DRAIN
31ARING, SEAL (NON-ILLUSTRATED)
32WCI G101747
335308000010 Frigidaire Refrigerator Evaporator Fan Blade
34RING, FAN ORIFICE
35G187559 Frigidaire Refrigerator Bushing
36WCI G164571
375300158289 Frigidaire Evaporator Fan Motor
38WCI G185302
39WCI G185303
40TUBE, INSULATION (2)
41ANUT, ORIFICE (2)
41COVER-COIL
42BSCREW, BRACKET MOUNTING (4)
42BRACKET, HINGE CENTER
42AWASHER (2)
43WCI G142220
44SPACER, MULLION (2)
45WCI G187921
46WCI G490086-11
47CLAMP, MULLION MOUNTING
48TROUGH-DRAIN
495309918806 Frigidaire Refrigerator Light Switch Door
50DIVIDER, CENTER
51TOP PC
51ASCREW (5)
52BOTTOM, FC
53WCI G163669
54WCI G166512
55WCI G174733
56WCI G174734
57WCI G174747-11
58CABINET BASE
59TRIM-CORNER, ALMOND (4)
60PAD, FOAM (2)
