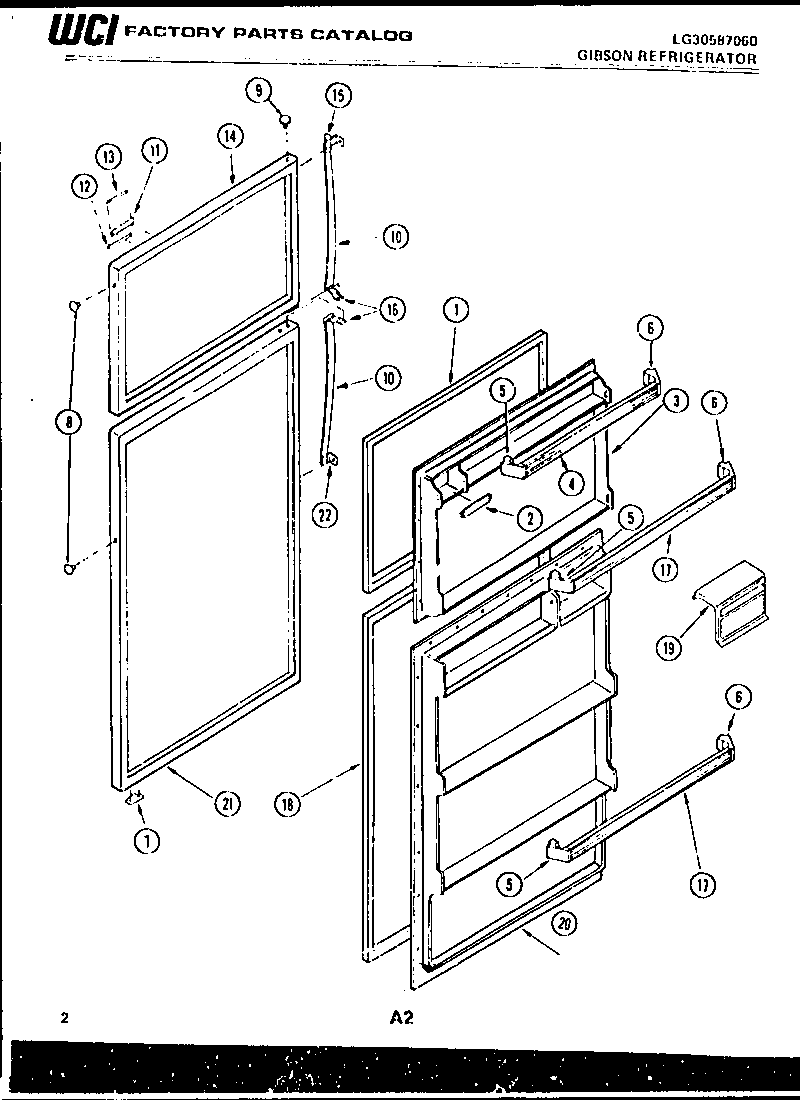

RD17F3FT3B 02 – DOOR PARTSadmin2025-04-26T08:42:47+00:00RD17F3FT3B 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *93561 | KIT-DOOR CONV, AVOCADO |
| 1 | GASKET-FREEZER |
| 2 | RACK-JUICE CAN |
| 3 | PANEL INTERIOR DOOR |
| 4 | WCI G161019-58 |
| 5 | SUPPORT, RACK, LH (PC) (2) |
| 6 | SUPPORT, RACK, RH, (PC) (2) |
| 7 | STOP, DOOR. PC & FC (2) |
| 8 | WCI G162977-08 |
| 9 | WCI G169332-08 |
| 10 | WCI G170495-24 |
| 11 | NAMEPLATE |
| 12 | LABEL, LOWER |
| 13 | LABEL, UPPER |
| 14 | PANEL, OUTER, AVOCADO |
| 15 | WCI G179800 |
| 16A | WCI G185566 |
| 16 | WCI G187329-01 |
| 17 | WCI G161019-57 |
| 18 | 218730603 Frigidaire Door Gasket |
| 19 | WCI G187490-01 |
| 20 | WCI G187557-02 |
| 20A | 5304455651 Frigidaire Refrigerator Screw |
| 21A | BEARING, HINGE (3) |
| 21 | PANEL, OUTER, AVOCADO |
| 22 | WCI G179801 |
