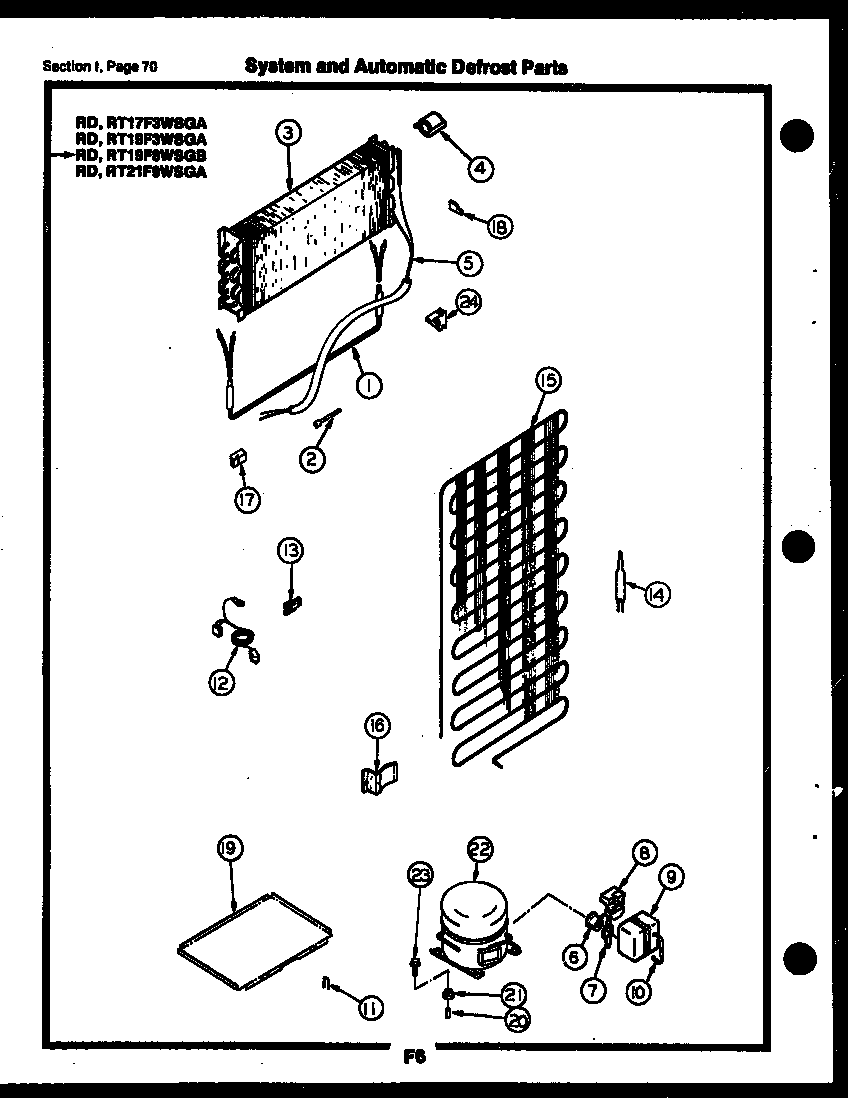

RD17F3WSGA 35 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*22686WCI G176210
15317842502 Frigidaire Defrost Heater
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5HEAT EXCHANGER (NON-ILLUSTRATED)
6OVERLOAD
7CLIP, OVERLOAD
8WCI G150618-32
105303006412 Frigidaire Refrigerator Cover Mounting Strap
11BRACKET, DRAIN TUBE
12CORD, SERVICE
13A5304455651 Frigidaire Refrigerator Screw
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145303305677 Frigidaire Replacement Filter Dryer Filters
15CONDENSER
16BRACKET-CONDENSER MOUNTING (4)
16A5308000039 Frigidaire Refrigerator Screw
17BLOCK, EVAPORATOR, LH
18PLUG – EVAP. INS. L.H.
19DEFROST PLATE
20SLEEVE COMP MTG (3)
21218513300 Frigidaire Refrigerator Compressor Mount Grommet
22COMPRESSOR WITH ELECTRICALS
23SCREW – 1/4-20 (3) COMP. MTG.
24WCI G163099
