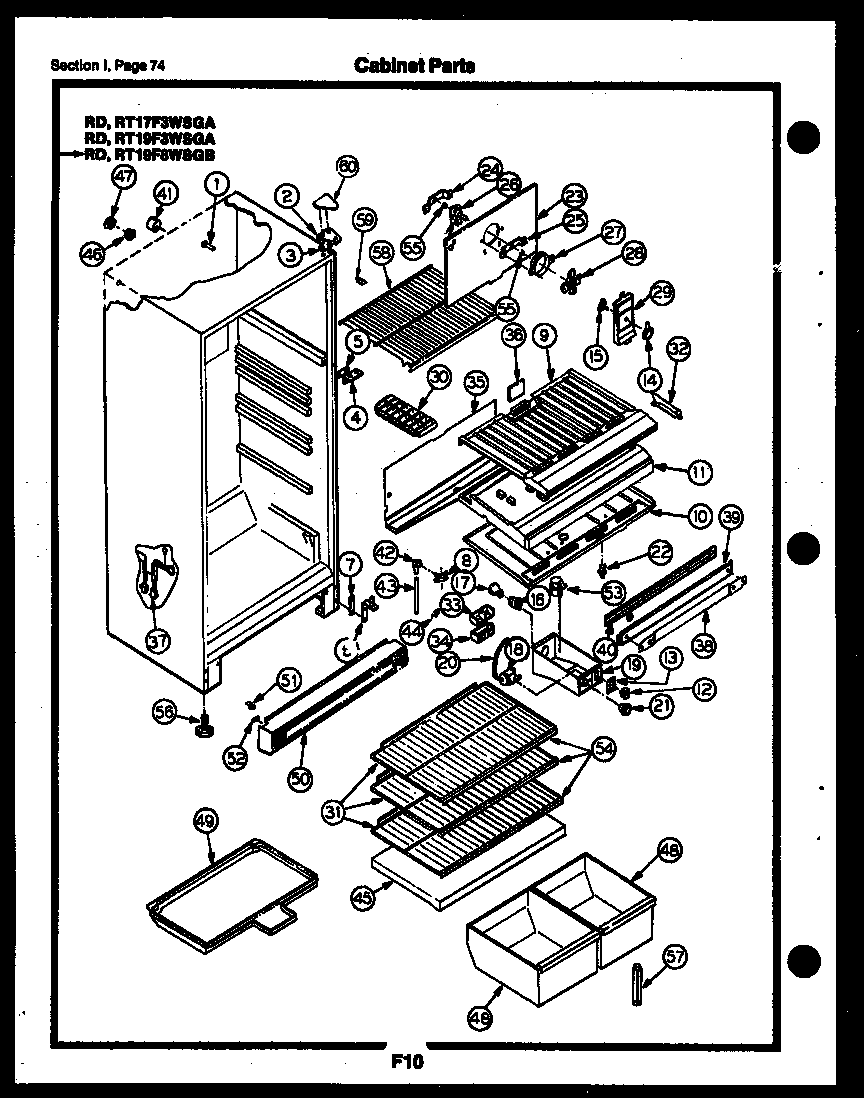

RD17F3WSGA 37 – CABINET PARTS

Products

Position	Product
1	WCI G163669
2C	241710601 Frigidaire Refrigerator Screw
2D	WASHER, NYLON
2	BRACKET, TOP HINGE
2A	WASHER, NYLON
2B	WCI G174747–01
3	WCI G183861
4B	WCI G142220
4D	WCI G103903
4A	SCREW, BRACKET MOUNTING (4)
4C	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
4	WCI G162384
5	SHIM, HINGE
6D	NUT, SPEED (2)
6B	TAPPING PLATE (2)
6	BRACKET-LOWER HINGE
6A	WCI G141673
6C	WCI G142361
6E	SCREW – 1/4 X 1 (2)
7	SHIM, HINGE
8	SPOUT DRAIN TUBE
8A	PIN PUSH SPOUT (2)
9	WCI G161919-01
10	WCI G174714
10A	SCREW (5)
11	DIVIDER – COMPARTMENT
12	SWITCH – SLIDE (NON-ILLUSTRATED)
13	LABEL-CONTROL BOX (NON-ILLUSTRATED)
14	KNOB-DAMPER
15	DAMPER FAN COVER
15A	NUT, DAMPER MOUNTING
16	SOCKET LIGHT
17	316538904 Frigidaire Oven Lamp Light
18A	WCI G107080
18	COLD CONTROL
19	WCI G174765-03
20	TUBE
21	KNOB-TEMP CONTROL
22	5309918806 Frigidaire Refrigerator Light Switch Door
23	WCI G162050-01
24	BRACKET, REAR MOTOR MOUNTING
25	BRACKET, FRONT MOTOR MOUNTING
26	5300158289 Frigidaire Evaporator Fan Motor
27	RING, FAN ORIFICE
27A	NUT, ORIFICE (2)
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	WCI G162511-14
29B	5304455650 Frigidaire Refrigerator Screw
29A	WCI G186247
29C	WCI G186248
