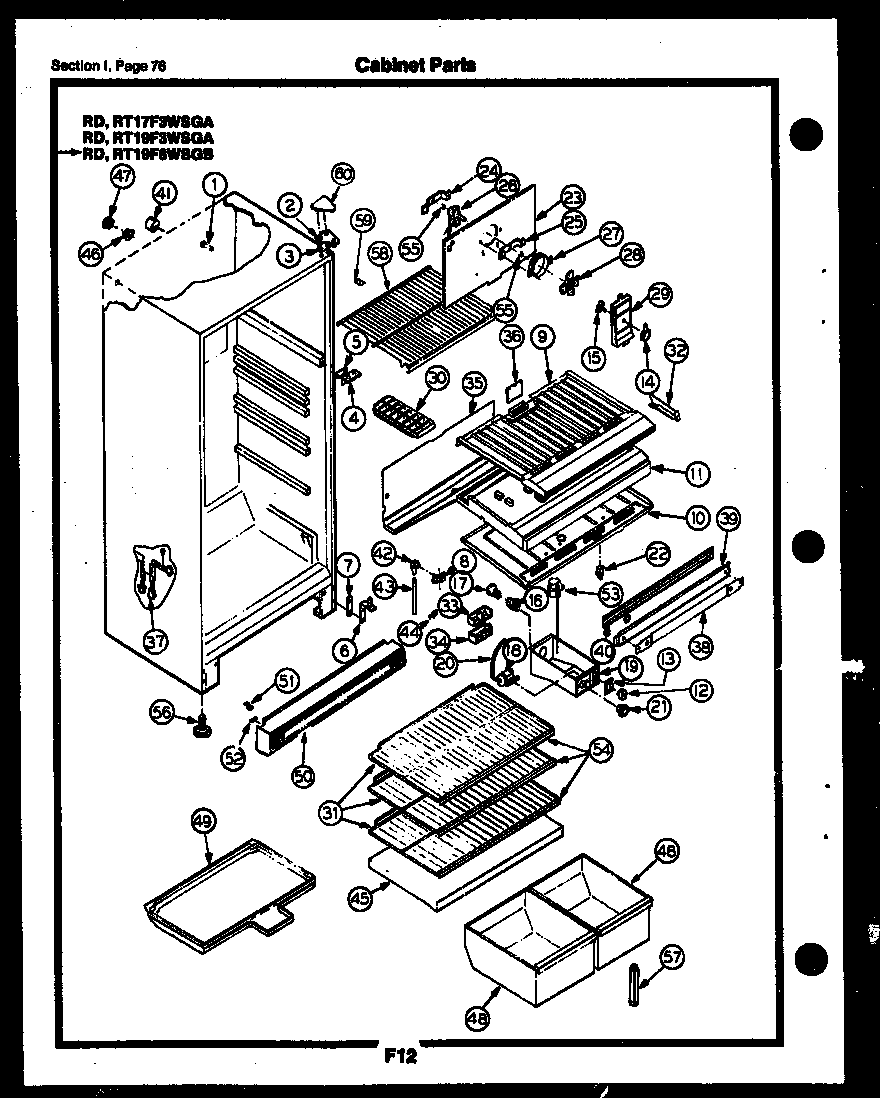

RD17F3WSGA 38 – CABINET PARTS

Products

Position	Product
*22931	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
*22934	BUTTON, PLUG, WATER INLET
*22932	BUTTON-DECORATIVE
*22938	BUTTON, PLUG, LINER (2)
*22937	WCI G175254
*22940	SERVICE DATA SHEET
*22944	WCI G183100-37
*22935	BUTTON, PLUG, ICE MAKER HARNESS
30	215667501 Frigidaire Refrigerator Ice Tray Primary
31	WCI G168209-04
32	WCI G162176
32A	WCI G162177
33	DEFLECTOR AIR
34	WCI G162178
35	WCI G170071
36	PAD, FOAM (2)
37	WCI G174831
38	STRAP, MULLION MOUNTING
39	WCI G162051
40	WCI G177254
41	TUBE, INSULATION (2)
42	ELBOW, DRAIN
43	WCI G155529-04
44	240396801 Frigidaire Refrigerator Tube Clamp
45	WCI G161901-02
46	WCI G174733
47	WCI G174734
48A	WCI G179706-31
48	WCI G179706-28
49	PAN, DEFROST
50	WCI G161904-01
51	WCI G162994
52	PLUG – LOWER GRILLE
53A	5304455649 Frigidaire Refrigerator Screw
53	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
54A	CLIP – TRIM (12)
54	TRIM – SHELF – FR.
55	G187559 Frigidaire Refrigerator Bushing
56	WCI G45490
57	WCI G166310-01
58A	WCI G163601-01
58	WCI G167798
58B	SUPPORT, SHELF (8)
58C	SCREW – SUPPORT TO LINER (8)
59A	5304455651 Frigidaire Refrigerator Screw
59	WCI G164571
60	COVER HINGE, WHITE
