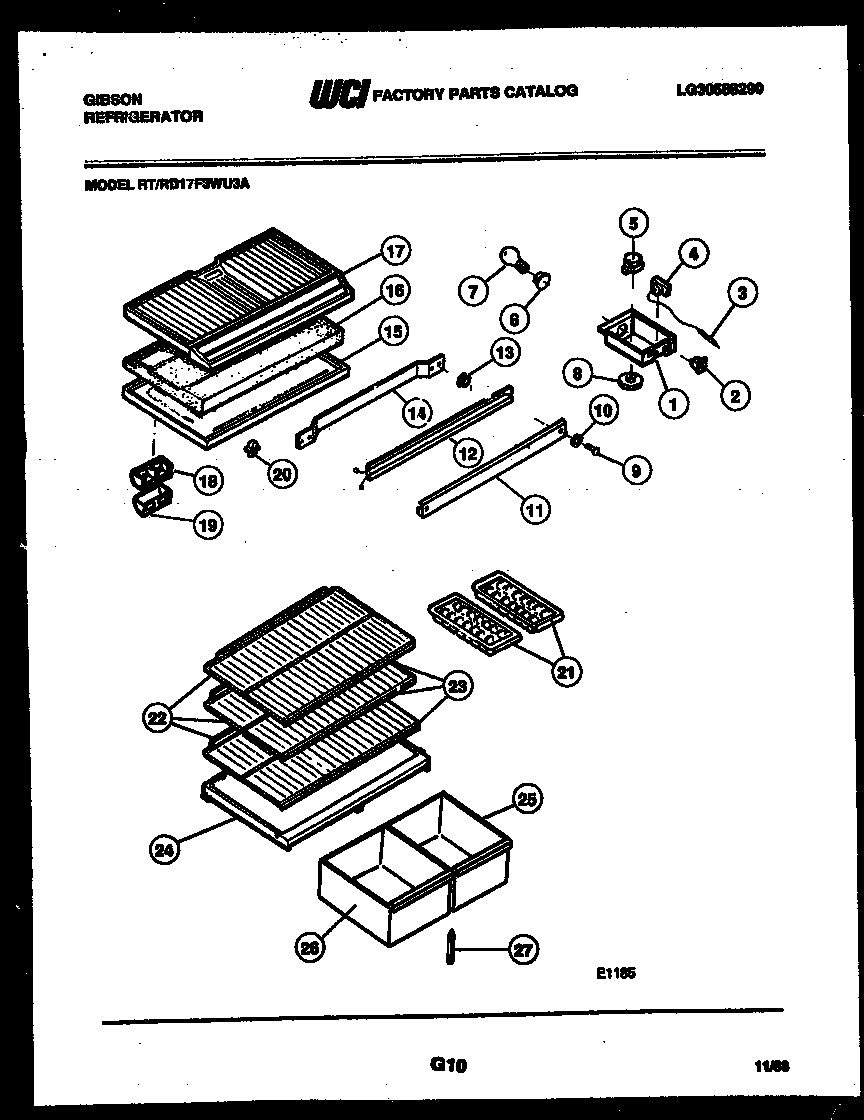

RD17F3WU3A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI G176722-03
1AWCI G188379-01
1B5304455650 Frigidaire Refrigerator Screw
2WCI G178402-02
3TUBE
4AWCI G107080
4WCI 3200810
5215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
5A5304455649 Frigidaire Refrigerator Screw
6SOCKET LIGHT
7316538904 Frigidaire Oven Lamp Light
8KNOB
9SCREW, BRACKET MOUNTING (4)
10WASHER (2)
11WCI 3916132
11WCI 3916133
11WCI 3916134
11WCI 3200465
11WCI 3916135
12HTR, CENTER RAIL
13SPACER (NON-ILLUSTRATED)
14CLAMP, MULLION MOUNTING
15TOP-REFRIGERATOR
15ASCREW (5)
16DIVIDER, CENTER
16AHARNESS, WIRING
17BOTTOM, FC
18DEFLECTOR AIR
19WCI G162178
205309918806 Frigidaire Refrigerator Light Switch Door
21215667501 Frigidaire Refrigerator Ice Tray Primary
22SHELF
23WCI G172410-04
24COVER-CRISPER
25PAN-CRISPER
26PAN-SMALL LS
27SUPPORT, CRISPER COVER
