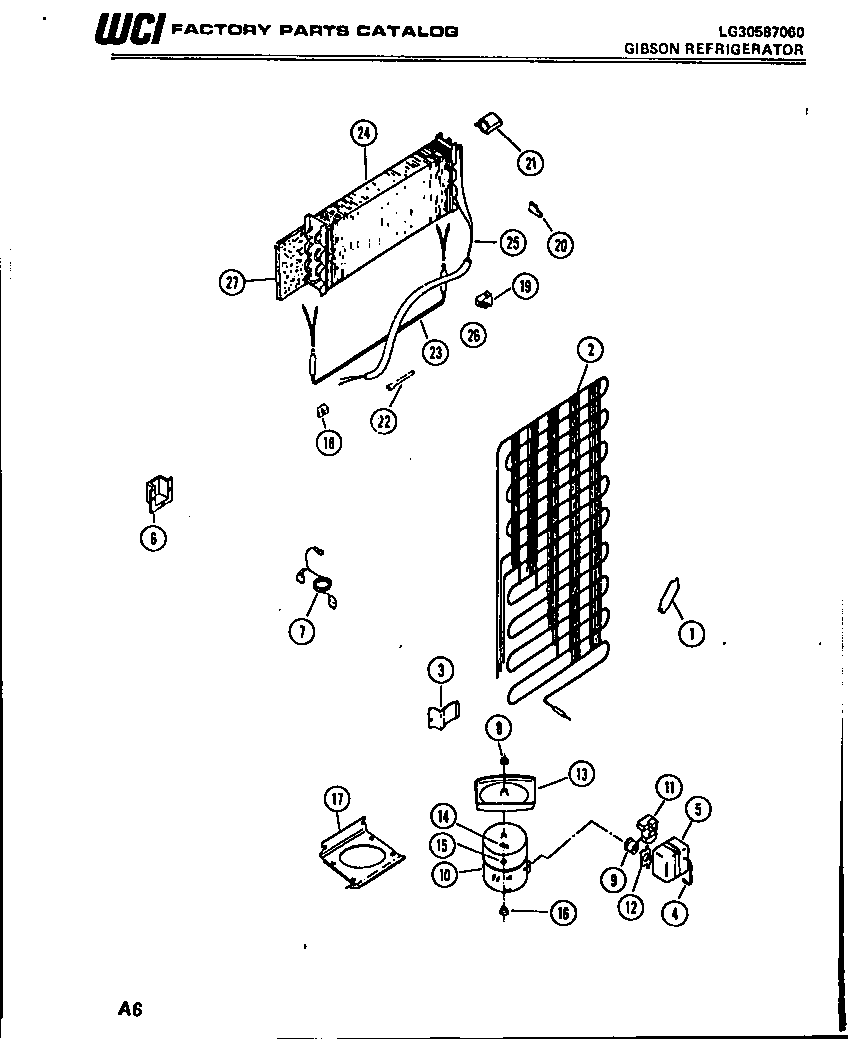

RD17F3YT3A 04 – SYSTEM PARTSadmin2025-04-26T08:42:34+00:00RD17F3YT3A 04 – SYSTEM PARTS
Products
| Position | Product |
|---|
| *93568 | HARNESS-COMPRESSOR |
| *93571 | WCI G182730-01 |
| *93569 | HOT TUBE REPAIR KIT |
| *93570 | WCI G189229-07 |
| 1 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 2 | WCI G178225 |
| 3 | BRACKET-CONDENSER MOUNTING (4) |
| 4 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 6 | WCI G183584 |
| 6A | CORD, SERVICE |
| 8 | NUT, LOCK |
| 9 | WCI G176002 |
| 10 | COMPRESSOR WITH ELECTRICALS |
| 11 | WCI G182225-03 |
| 12 | RETAINER, OVERLOAD |
| 13 | DEFROST PAN & NUT |
| 14 | CLIP, COMPRESSOR MOUNTING (4) |
| 15 | WASHER, COMPRESSOR MOUNTING (4) |
| 16 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 17 | PLATE |
| 18 | WCI G157807 |
| 19 | BLOCK, EVAPORATOR, RH |
| 20 | PLUG, EVAPORATOR INSULATION BLOCK, R H |
| 21 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 22 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 23 | HEATER, DEFROST |
| 24 | EVAPORATOR |
| 25 | HEAT, EXCHANGE |
| 26 | WCI G125963-68 |
| 27 | INSULATOR |
