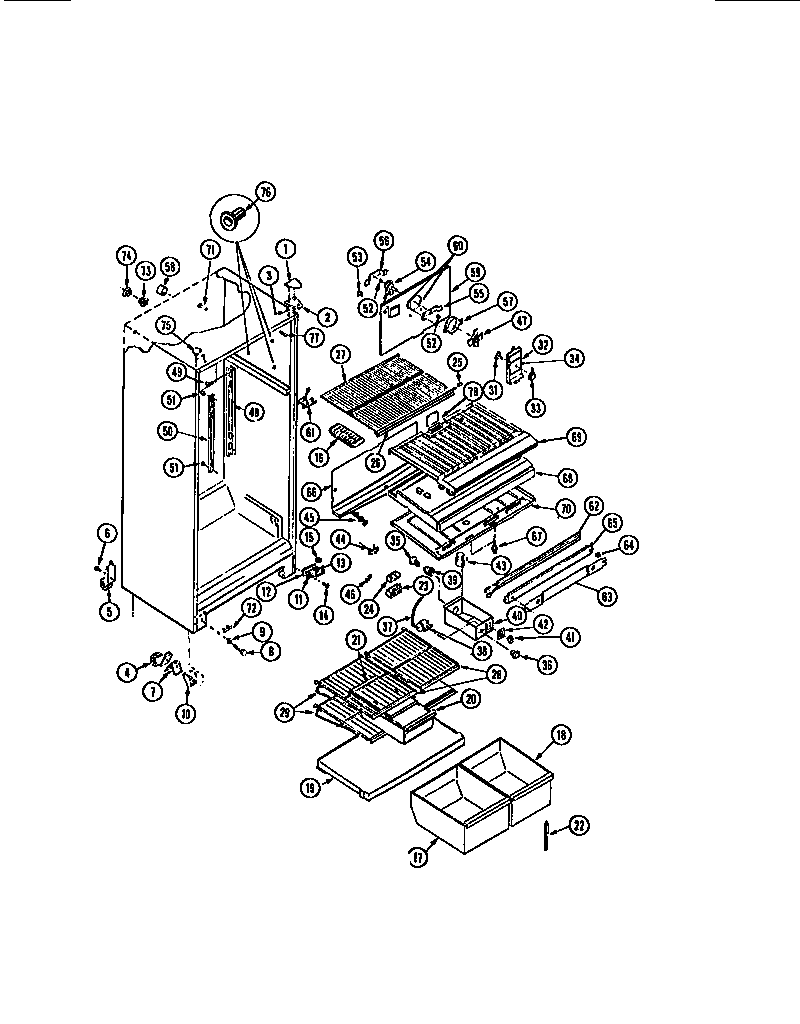

RD17F6FT3B 03 – CABINET

RD17F6FT3B 03 – CABINET

Written by

in

RD17F6FT3B 03 – CABINET

Products

Position	Product
*55442	TAPPING PLATE (2)
*55440	CABINET BASE
*55443	BUTTON, PLUG, LINER (2)
*55441	TAPPING, PLATE (2)
*55445	BUTTON, LINER
*55444	HARNESS, WIRING
1	COVER, TOP HINGE, AVOCADO
2	BRACKET, TOP HINGE
2A	241710601 Frigidaire Refrigerator Screw
3	WCI G183861
3A	WCI G103903
4	ROLLER FRONT, ADJUSTABLE (2)
5A	5308000039 Frigidaire Refrigerator Screw
5	ROLLER, REAR (2)
6	BOLT ROLLER (2)
7	SPRING-ROLLER (2)
8	BOLT-ROLLER (2)
9	WASHER
10	SUPPORT, ROLLER (2)
11	BRACKET, HINGE, LOWER
12	SHIM, HINGE
13	5303001321 Frigidaire Refrigerator Lower Hinge Pin
15	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
16	215667501 Frigidaire Refrigerator Ice Tray Primary
17	PAN-CRISPER-LS
18	PAN-CRISPER LH
19	COVER-CRISPER
19A	GASKET, COVER
20	MEAT PAN
21	WCI G177106-01
22	SUPPORT, CRISPER COVER
23	WCI G162178
24	DEFLECTOR AIR
25	WCI G166495-01
26	TRIM – SHELF
27	WCI G177059-10
28	WCI G172410-18
29	WCI G177390-16
30	BUTTON-DECORATIVE
31	DAMPER FAN COVER
31A	NUT, DAMPER MOUNTING
32	WCI G163061-76
32A	5304455650 Frigidaire Refrigerator Screw
33	KNOB
34	LABEL, COVER
35	316538904 Frigidaire Oven Lamp Light
36	KNOB
37	TUBE
38	COLD CONTROL
39	SOCKET LIGHT
40	WCI G176722-03
41	WCI G178402-02
42	WCI G188379-02
43	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
43A	5304455649 Frigidaire Refrigerator Screw
44	SPOUT DRAIN TUBE
44A	PIN PUSH SPOUT (2)
45A	RING, SEAL (NON-ILLUSTRATED)
45	TUBE, DRAIN
46	WCI G101747
47	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
48	CHANNEL, SHELF (2)
49	5304455852 Frigidaire Refrigerator Screw
50	CHANNEL, CENTER SHELF, MOUNTING
51	SPACER, FREEZER (2)
52	G187559 Frigidaire Refrigerator Bushing
53	WCI G164571
54	5300158289 Frigidaire Evaporator Fan Motor
55	WCI G185302
56	WCI G185303
57	RING, FAN ORIFICE
58	TUBE, INSULATION (2)
59	COVER-COIL
60	NUT, ORIFICE (2)
61B	SCREW, BRACKET MOUNTING (4)
61A	WASHER (2)
61	BRACKET, HINGE CENTER
62	WCI G187921
63	CLAMP, MULLION MOUNTING
64	SPACER, MULLION (2)
65	MULLION, AVOCADO
66	TROUGH-DRAIN
67	5309918806 Frigidaire Refrigerator Light Switch Door
68	DIVIDER, CENTER
69	BOTTOM, FC
70	TOP PC
70A	SCREW (5)
71	WCI G163669
72	WCI G166912
73	WCI G174733
74	WCI G174734
75	WCI G174747-08
76	5304509705 Frigidaire Refrigerator Grommet
76A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
77	TRIM CORNER (4), AVOCADO
78	PAD, FOAM (2)
