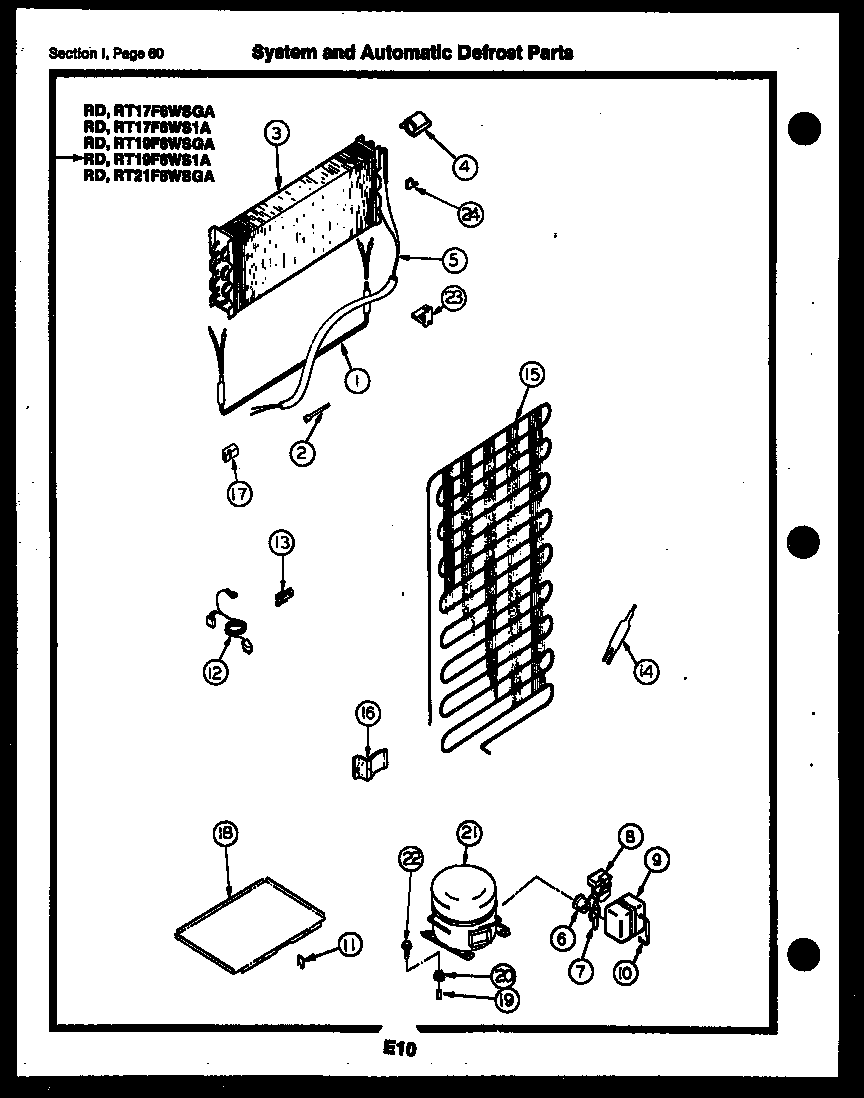

RD17F6WS1A 30 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*22361WCI G176210
15317842502 Frigidaire Defrost Heater
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5HEAT EXCHANGER (NON-ILLUSTRATED)
6WCI G185797
7CLIP, OVERLOAD
8WCI G182225-12
9WCI G185792
10STRAP-COVER
11BRACKET, DRAIN TUBE
12CORD, SERVICE
13A5304455651 Frigidaire Refrigerator Screw
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145303305677 Frigidaire Replacement Filter Dryer Filters
15WCI G170932
16AWCI G160578 (10)
16BRACKET-CONDENSER MOUNTING (4)
17WCI G163099
18DEFROST PLATE (NON-ILLUSTRATED)
19SLEEVE COMP MTG (3)
20218513300 Frigidaire Refrigerator Compressor Mount Grommet
21COMPRESSOR PACKAGE (NON-ILLUSTRATED)
22SCREW – 1/4-20 (3) COMP. MTG.
23BLOCK, EVAPORATOR, LH
24PLUG – EVAP. INS. L.H.
