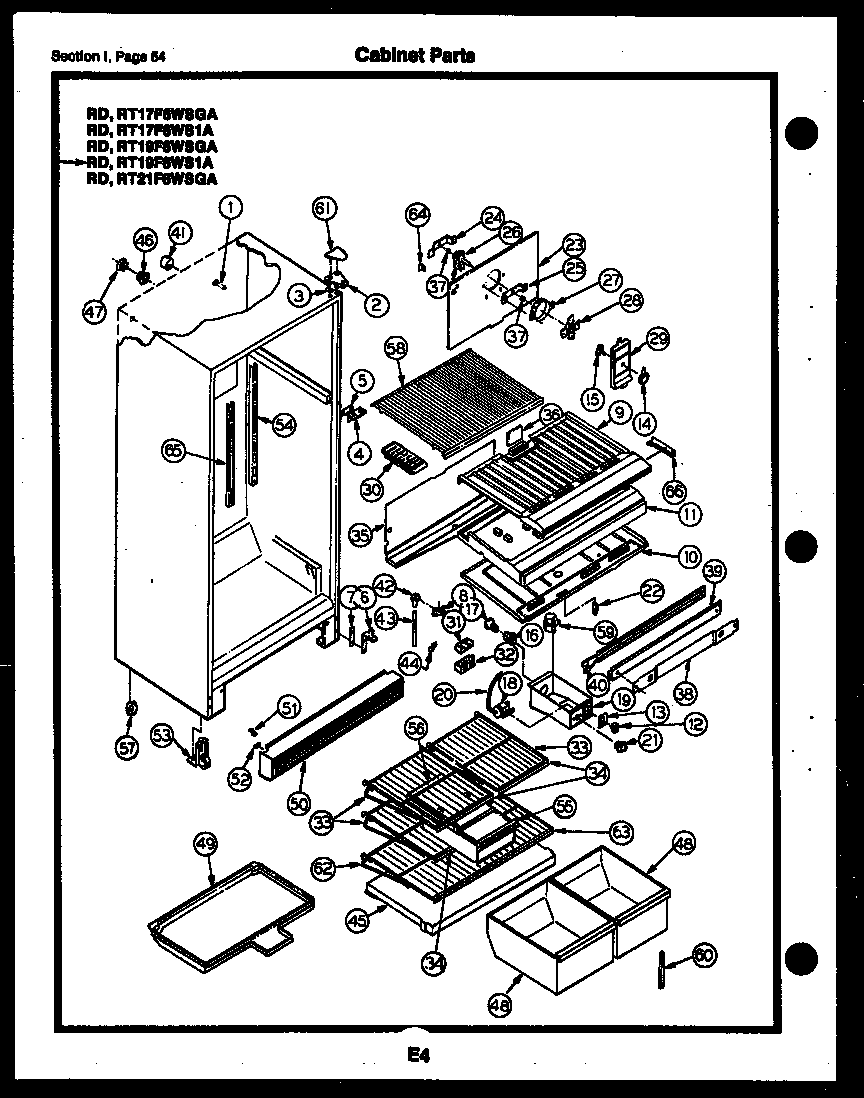

RD17F6WSGA 27 – CABINET PARTS

Products

Position	Product
1	WCI G163669
2	BRACKET, TOP HINGE
2B	WASHER, NYLON
2A	WCI G174747–01
2C	241710601 Frigidaire Refrigerator Screw
3	WCI G183861
4B	WCI G142220
4A	SCREW, BRACKET MOUNTING (4)
4	WCI G162384
5	SHIM, HINGE
6E	WCI G163989
6B	WCI G141673
6	BRACKET-LOWER HINGE
6C	TAPPING PLATE (2)
6D	WCI G103903
6H	NUT, SPEED (2)
6A	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
6F	WASHER, NYLON
6I	SCREW – 1/4 X 1 (2)
6G	WCI G142361
7	SHIM, HINGE
8A	PIN PUSH SPOUT (2)
8	SPOUT DRAIN TUBE
9	WCI G161919-01
10A	WCI G162673 (3)
10	WCI G174714
11	DIVIDER – COMPARTMENT
12	SWITCH – SLIDE (NON-ILLUSTRATED)
13	LABEL – CONTROL BOX
14	WCI G162747-06
15	DAMPER FAN COVER
15A	NUT, DAMPER MOUNTING
16	SOCKET LIGHT
17	316538904 Frigidaire Oven Lamp Light
18A	WCI G107080
18	COLD CONTROL
19	WCI G174765-03
19A	5304455650 Frigidaire Refrigerator Screw
20	TUBE
21	KNOB-TEMP CONTROL
22	5309918806 Frigidaire Refrigerator Light Switch Door
23	WCI G162050-01
24	BRACKET, REAR MOTOR MOUNTING
25	BRACKET, FRONT MOTOR MOUNTING
