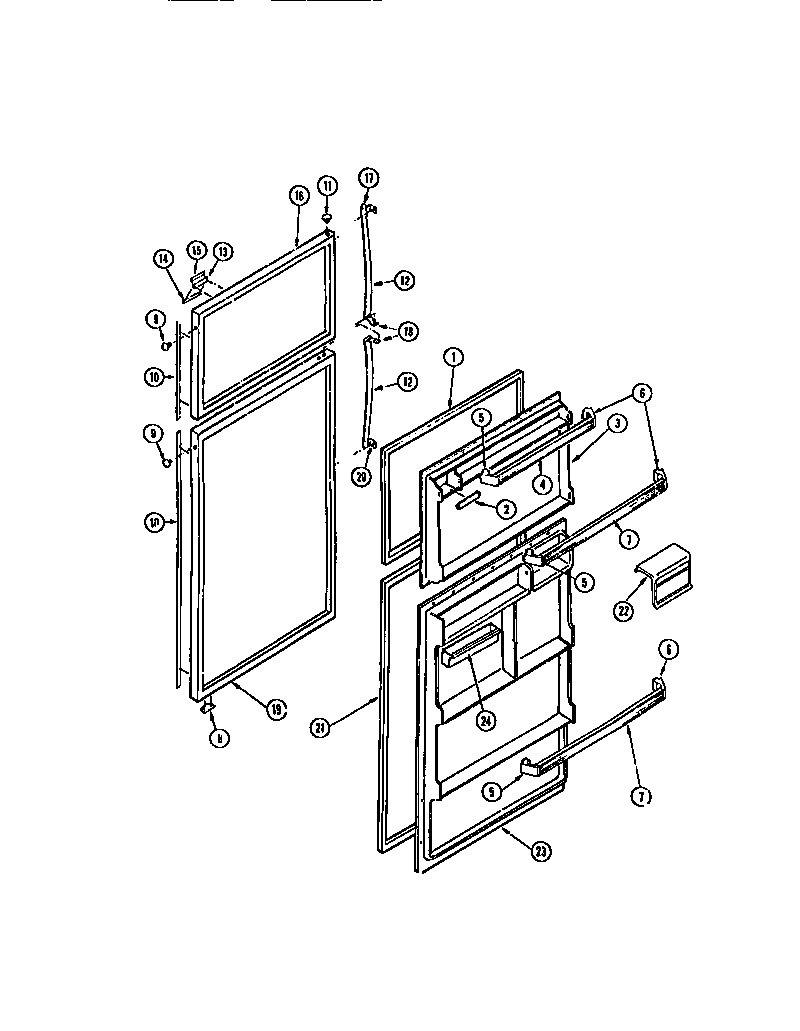

RD17F6WT3A 02 – DOOR

Products

Position	Product
*55446	SNUGGER RACK (NON-ILLUSTRATED)
*55450	WCI G168981-01
1	GASKET-FREEZER
2	RACK, JUICE CAN
3	PANEL INTERIOR DOOR
4	RACK-FZR.-UPPER
5	SUPPORT, RACK, LH (PC) (2)
6	SUPPORT, RACK, RH, (PC) (2)
7	RACK – DOOR
8	STOP, DOOR. PC & FC (2)
9	240494001 Frigidaire Refrigerator Plug Button
10	WCI G167150-13
11	WCI G169332-01
12	WCI G170495-24
13	NAMEPLATE
14	LABEL, LOWER
15	LABEL, UPPER
16	PANEL, OUTER, WHITE
17	WCI G179800
18	WCI G187329-01
19	PANEL, OUTER, WHITE
19A	BEARING, HINGE (3)
20A	WCI G185566
20	WCI G179801
21	218730603 Frigidaire Door Gasket
22	DOOR-DAIRY RS
23	WCI G187557-02
24	TRAY, UTILITY
