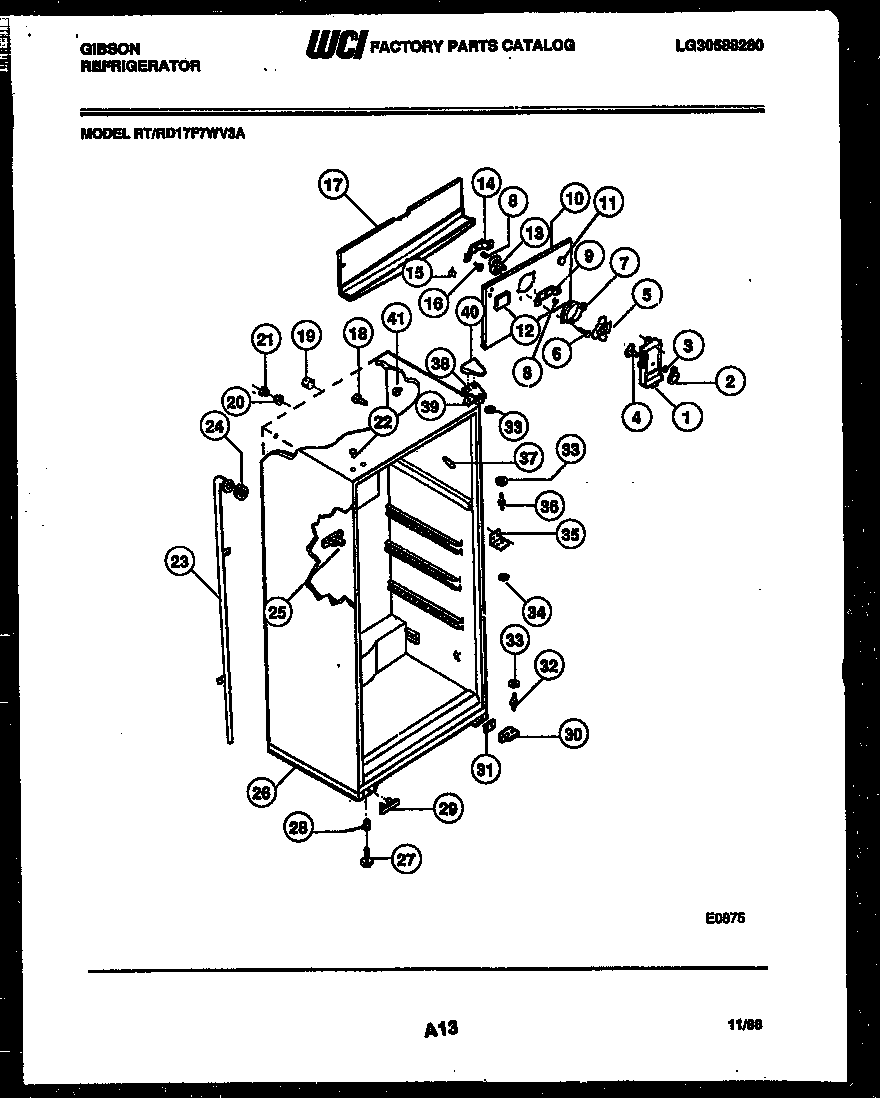

RD17F7WV3A 03 – CABINET PARTS

Written by

Products

Position	Product
*12857	BUTTON, LINER
*12857	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1	WCI G163061-76
2	KNOB
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	5304455650 Frigidaire Refrigerator Screw
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10	COVER-COIL
10A	NUT, ORIFICE (2)
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	BUTTON-DECORATIVE
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
16	5304455651 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747–01
22	WCI G174747-08
22	WCI G174747-09
22	WCI G174747-11
22	WCI G174747-10
23	TUBE, DRAIN
24	RING, SEAL (NON-ILLUSTRATED)
25A	PIN PUSH SPOUT (2)
25	SPOUT DRAIN TUBE
26	CABINET BASE
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	BRACKET-HINGE
31A	TAPPING, PLATE (2)
31	SHIM, HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35A	SCREW, BRACKET MOUNTING (4)
35	BRACKET, HINGE CENTER
35B	WASHER (2)
36	WCI G142220
37	WCI G179684-09
37	WCI G179684-10
37	WCI G179684-01
37	TRIM-CORNER, ALMOND (4)
37	TRIM CORNER (4), AVOCADO
38A	241710601 Frigidaire Refrigerator Screw
38	BRACKET, TOP HINGE
39	WCI G183861
40	COVER, TOP HINGE, ALMOND
40	COVER, TOP HINGE, AVOCADO
40	COVER HINGE, COFFEE
40	COVER HINGE, WHITE
40	COVER HINGE, WHEAT
41	5304509705 Frigidaire Refrigerator Grommet
