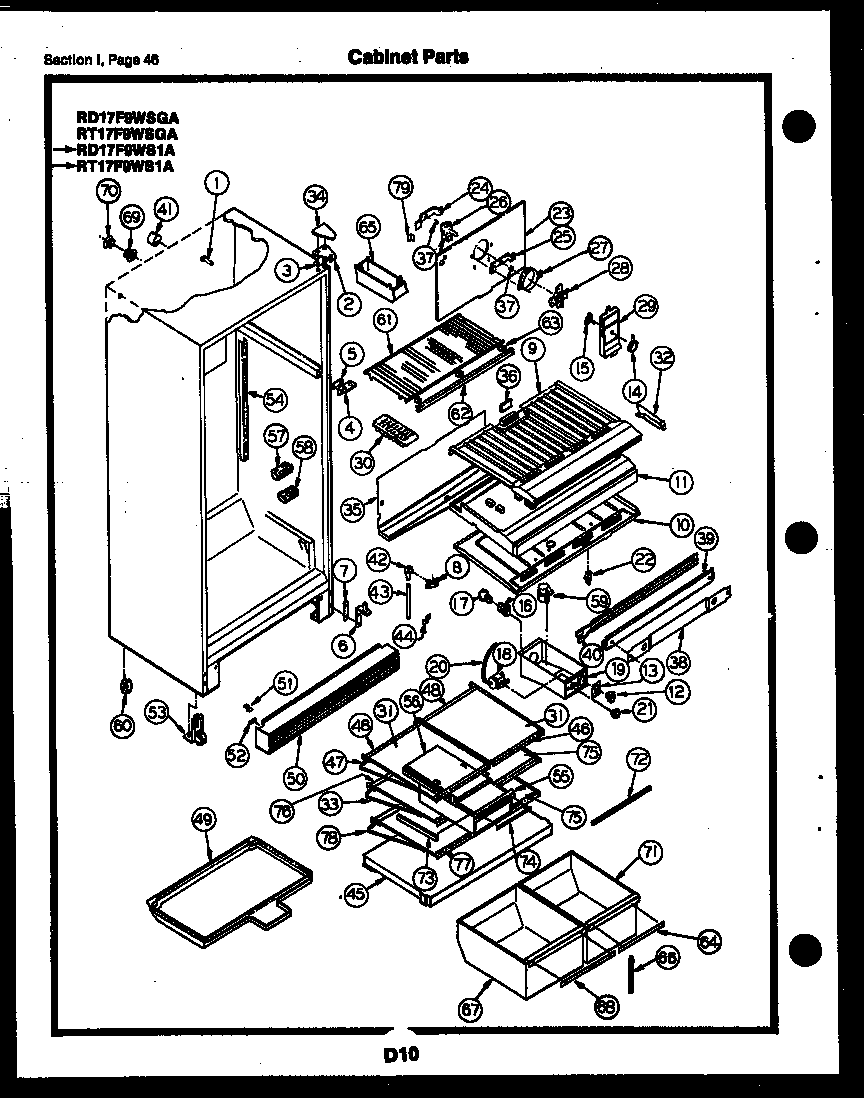

RD17F9WS1A 23 – CABINET PARTS

Products

Position	Product
27A	NUT, ORIFICE (2)
27	RING, FAN ORIFICE
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29A	LABEL – UPPER
29B	LABEL – LOWER
29	WCI G162511-14
30	215667501 Frigidaire Refrigerator Ice Tray Primary
32	WCI G162176
32A	WCI G162177
33	WCI G186156-02
34	COVER HINGE, WHITE
35	WCI G170071
36	PAD, FOAM (2)
37	G187559 Frigidaire Refrigerator Bushing
38	STRAP, MULLION MOUNTING
39	WCI G162051
40	WCI G177254
41	TUBE, INSULATION (2)
42	ELBOW, DRAIN
43	WCI G155529-04
44A	216858001 Frigidaire Refrigerator Screw
44	240396801 Frigidaire Refrigerator Tube Clamp
45	WCI G161901-02
46	TRIM (2)
47	WCI G187219-01
48A	WCI G172409-15
48	TRIM – SPLIT SHELVES – REAR (2)
49	PAN, DEFROST
50	WCI G161904-01
51	WCI G162994
52	PLUG – LOWER GRILLE
53	ROLLER ASSEMBLY – FRONT (2)
53A	BOLT, HOUSING TO FRONT RAIL (2)
54A	5304455852 Frigidaire Refrigerator Screw
54	CHANNEL, SHELF (2)
54B	CHANNEL, CENTER SHELF, MOUNTING
55	WCI G176918-12
56	SHELF – MEAT COVER
57	WCI G162178
58	DEFLECTOR AIR
59	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
59A	5304455649 Frigidaire Refrigerator Screw
60	ROLLER (2)
60B	NUT, DAMPER MOUNTING
60A	WCI G162809
