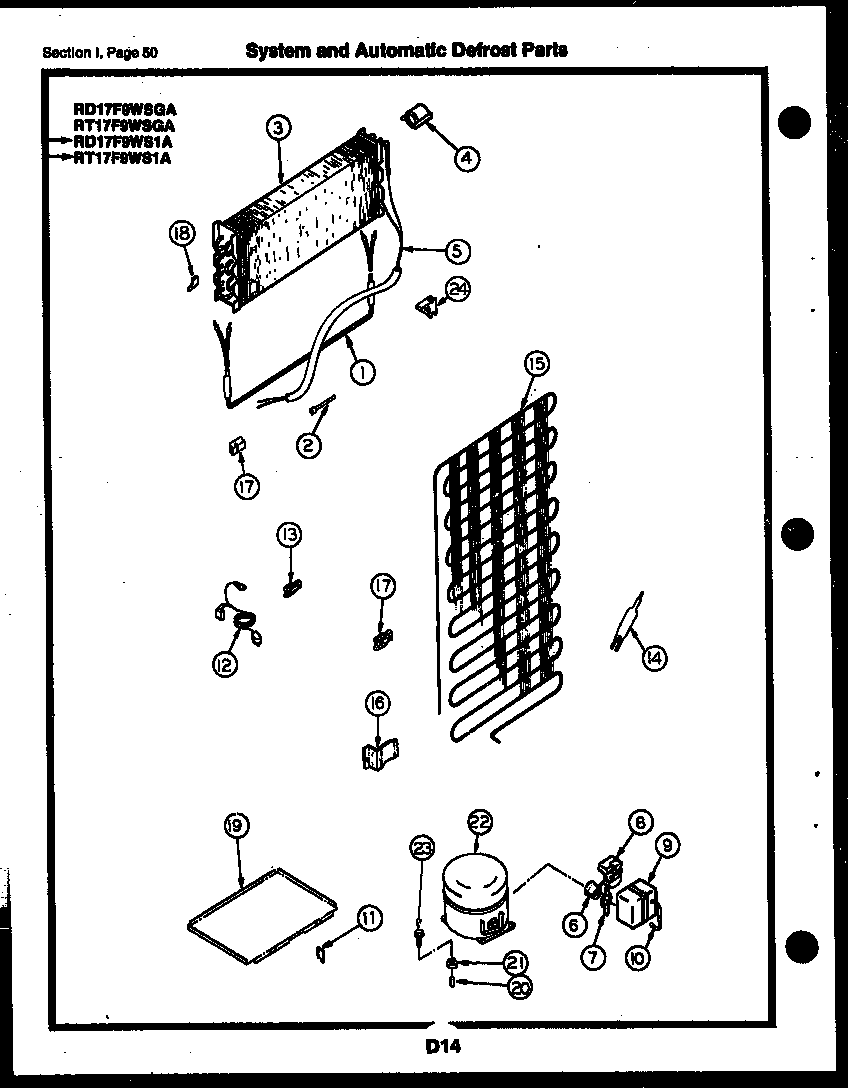

RD17F9WSGA 25 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*21952WCI G176210
15317842502 Frigidaire Defrost Heater
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5HEAT EXCHANGER (NON-ILLUSTRATED)
6OVERLOAD
7CLIP, OVERLOAD
8WCI G150618-32
10A218843801 Frigidaire Refrigerator Screw
105303006412 Frigidaire Refrigerator Cover Mounting Strap
11BRACKET, DRAIN TUBE
12CORD, SERVICE
13A5304455651 Frigidaire Refrigerator Screw
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145303305677 Frigidaire Replacement Filter Dryer Filters
15WCI G175408
16BRACKET-CONDENSER MOUNTING (4)
16A5308000039 Frigidaire Refrigerator Screw
17WCI G163099
18PLUG – EVAP. INS. L.H.
19DEFROST PLATE
20SLEEVE COMP MTG (3)
21218513300 Frigidaire Refrigerator Compressor Mount Grommet
22COMPRESSOR WITH ELECTRICALS
23SCREW – 1/4-20 (3) COMP. MTG.
24BLOCK, EVAPORATOR, LH
