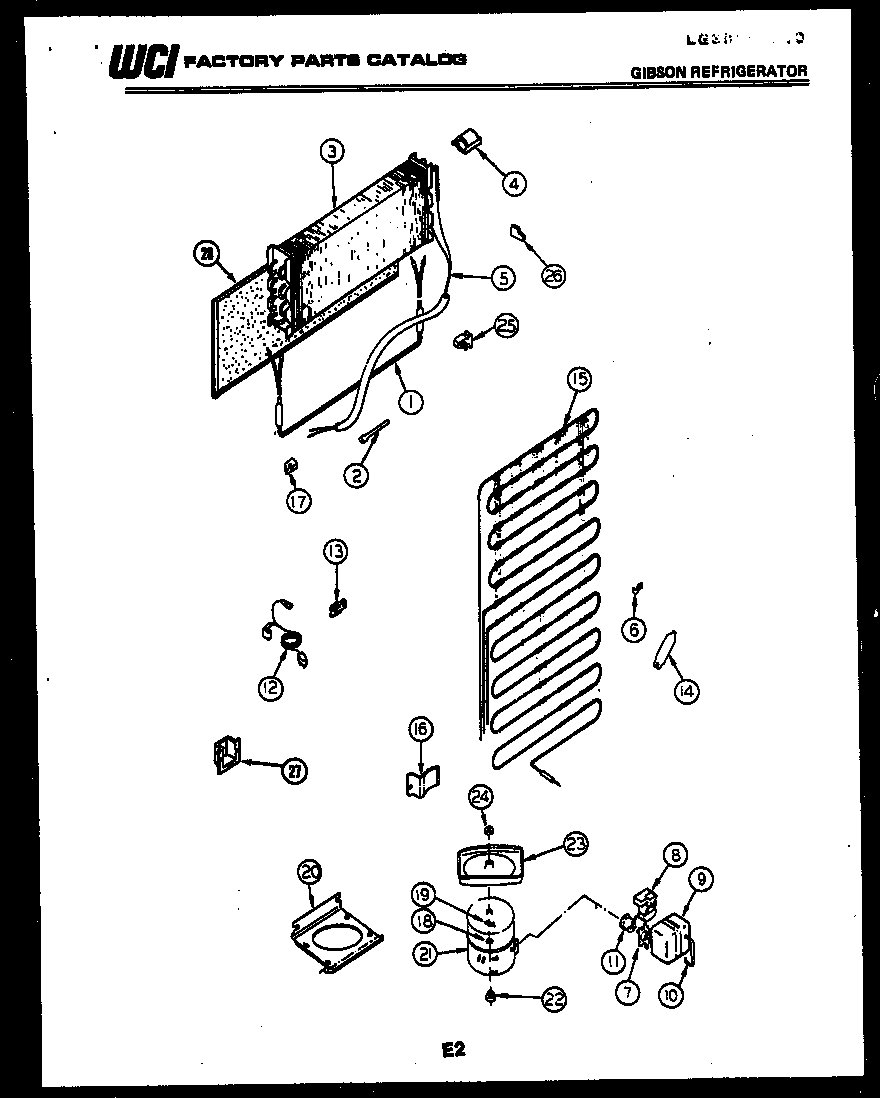

RD17F9WT3A 03 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*50514WCI G189229-07
*50512HOT TUBE REPAIR KIT
*50514HARNESS-COMPRESSOR
*50515WCI G167234
1HEATER, DEFROST
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5HEAT-EXCH
6A5308000039 Frigidaire Refrigerator Screw
6WCI G101747
7RETAINER, OVERLOAD
8WCI G182225-03
105303006412 Frigidaire Refrigerator Cover Mounting Strap
11WCI G176002
12CORD, SERVICE
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145303305677 Frigidaire Replacement Filter Dryer Filters
15WCI G178225
16BRACKET-CONDENSER MOUNTING (4)
17BLOCK, LEFT SIDE
18WASHER, COMPRESSOR MOUNTING (4)
19CLIP, COMPRESSOR MOUNTING (4)
20PLATE
21COMPRESSOR WITH ELECTRICALS
22218513300 Frigidaire Refrigerator Compressor Mount Grommet
23DEFROST PAN & NUT
24NUT, LOCK
25BLOCK, EVAPORATOR, RH
26PLUG, EVAPORATOR INSULATION BLOCK, R H
27WCI G183584
28INSULATOR
