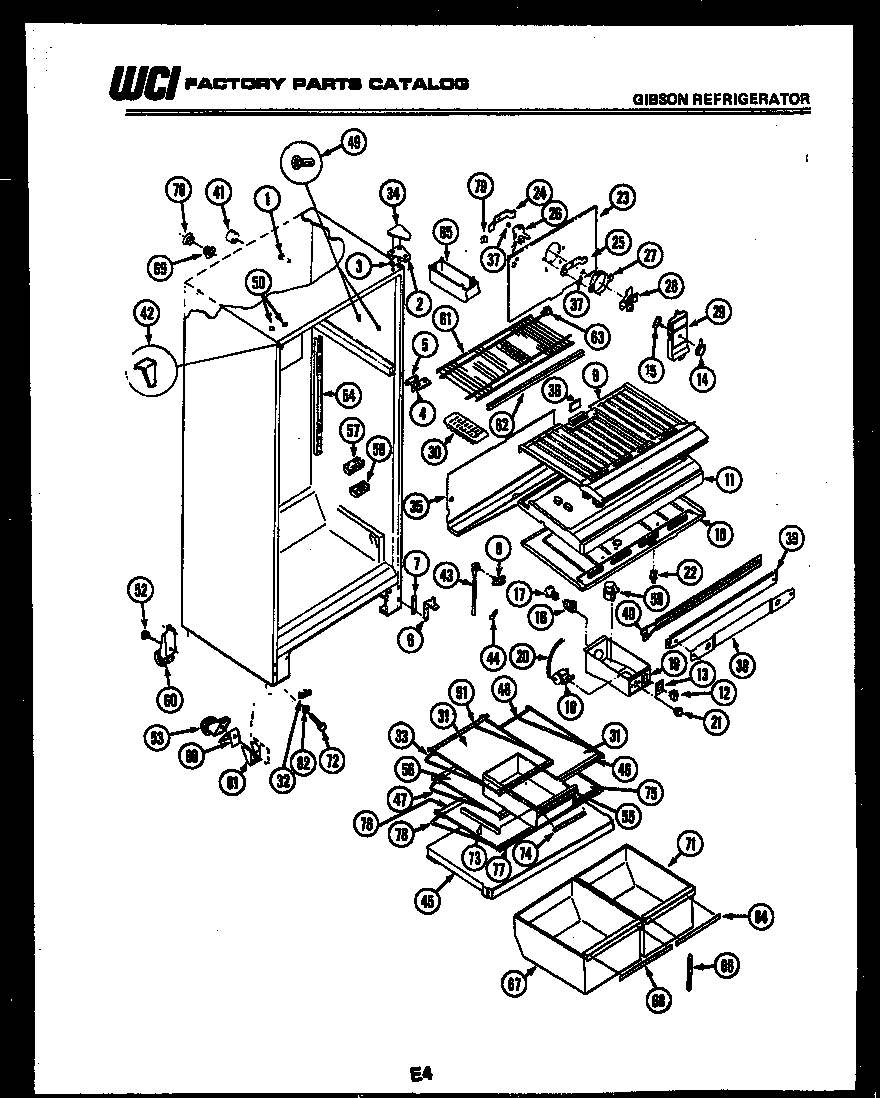

RD17F9WT3B 04 – CABINET PARTS

RD17F9WT3B 04 – CABINET PARTS

Written by

in

RD17F9WT3B 04 – CABINET PARTS

Products

PositionProduct
1WCI G163669
2BRACKET, TOP HINGE
2A241710601 Frigidaire Refrigerator Screw
2CWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
3WCI G183861
4BSCREW, BRACKET MOUNTING (4)
4BRACKET, HINGE CENTER
4AWCI G103903
4CWCI G142220
5SHIM, HINGE
6BRACKET, HINGE, LOWER
6AWCI G141673
6BTAPPING PLATE (2)
6C5303001321 Frigidaire Refrigerator Lower Hinge Pin
7SHIM, HINGE
8APIN PUSH SPOUT (2)
8SPOUT DRAIN TUBE
9BOTTOM, FC
10TOP PC
10ASCREW (5)
11DIVIDER, CENTER
12WCI G178402-02
13WCI G188379-02
14LABEL – DAMPER CONTROL KNOB
14WCI G162747-06
15DAMPER FAN COVER
15ANUT, DAMPER MOUNTING
16SOCKET LIGHT
17316538904 Frigidaire Oven Lamp Light
18AWCI G107080
18COLD CONTROL
19WCI G176722-03
20TUBE
21KNOB
225309918806 Frigidaire Refrigerator Light Switch Door
23A5304455650 Frigidaire Refrigerator Screw
23WCI G176979
24WCI G185303
25WCI G185302
265300158289 Frigidaire Evaporator Fan Motor
27ANUT, ORIFICE (2)
27RING, FAN ORIFICE
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
29ALABEL, COVER
29WCI G163061-76
30215667501 Frigidaire Refrigerator Ice Tray Primary
31WCI G171654-55
32WCI G166912
33WCI G171608-18
34COVER HINGE, COFFEE
34COVER HINGE, WHEAT
34COVER HINGE, WHITE
34COVER, TOP HINGE, AVOCADO
34COVER, TOP HINGE, ALMOND
35TROUGH-DRAIN
36PAD, FOAM (2)
37G187559 Frigidaire Refrigerator Bushing
38CLAMP, MULLION MOUNTING
39WCI G490086-01
39WCI G490086-10
39MULLION, AVOCADO
39WCI G490086-11
39WCI G490086-09
40WCI G187921
41TUBE, INSULATION (2)
42WCI G179684-10
42WCI G179684-09
42WCI G179684-01
42TRIM CORNER (4), AVOCADO
42TRIM-CORNER, ALMOND (4)
43WCI G184920-02
44A216858001 Frigidaire Refrigerator Screw
44WCI G101747
45AGASKET, COVER
45COVER-CRISPER
46WCI G172410-18
