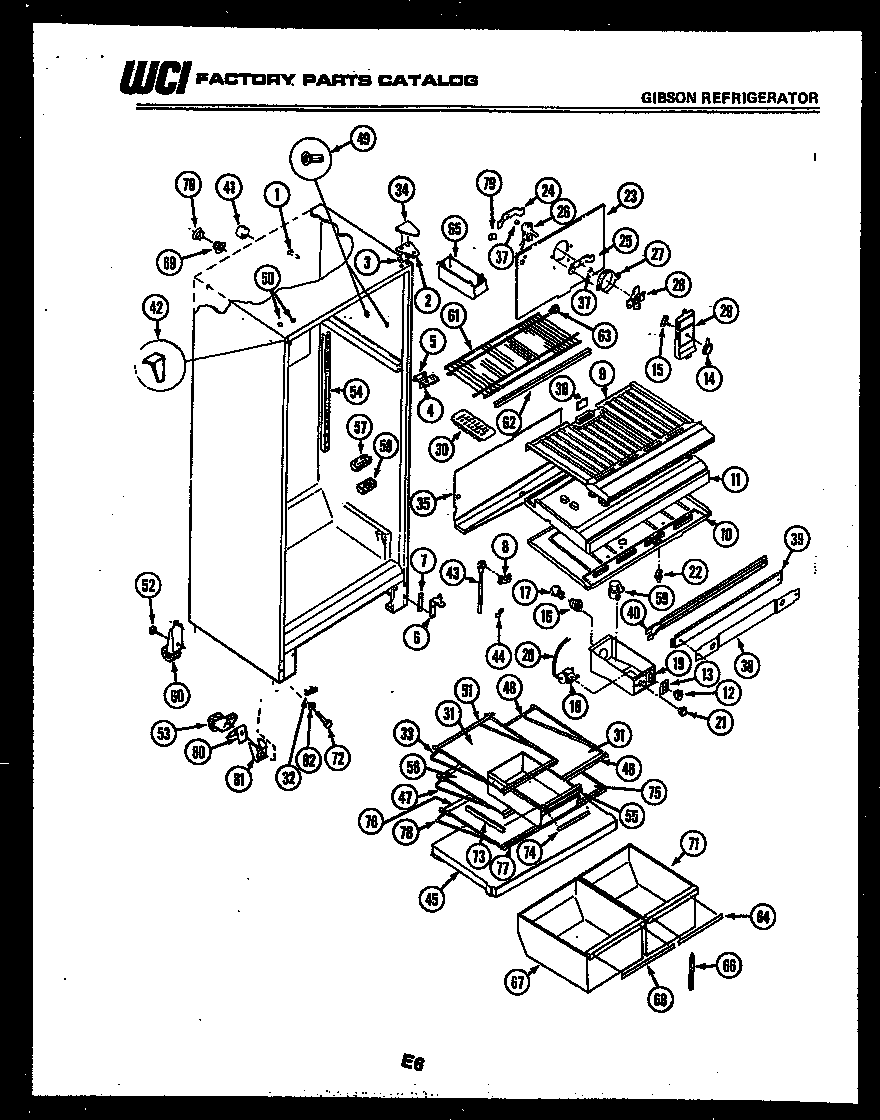

RD17F9WT3B 05 – CABINET PARTS

RD17F9WT3B 05 – CABINET PARTS

Written by

in

RD17F9WT3B 05 – CABINET PARTS

Products

PositionProduct
*50702BUTTON, PLUG, LINER (2)
*50698BUTTON, PLUG, ICE MAKER HARNESS
*50699HARNESS, WIRING
*50692SERVICE DATA SHEET
*50697BUTTON, PLUG, WATER INLET
*50695BUTTON, LINER
*50697BUTTON-DECORATIVE
*50703WCI G188124
*50706WCI G183100-59
47WCI G187218-07
48TRIM, SHELF, REAR (3) (REGULAR)
49A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
495304509705 Frigidaire Refrigerator Grommet
50WCI G174747-08
50WCI G174747-11
50WCI G174747-10
50WCI G174747–01
50WCI G174747-09
51TRIM, SHELF, REAR (MEAT KEEPER)
52BOLT ROLLER (2)
53ROLLER FRONT, ADJUSTABLE (2)
54A5304455852 Frigidaire Refrigerator Screw
54CHANNEL, SHELF (2)
54BCHANNEL, CENTER SHELF, MOUNTING
55WCI G176918-12
56WCI G171654-55
57WCI G162178
58DEFLECTOR AIR
59215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
59A5304455649 Frigidaire Refrigerator Screw
60ROLLER, REAR (2)
61WCI G177059-10
62TRIM – SHELF
63WCI G166495-01
64WCI G177343-16
65WCI G163022-03
66SUPPORT, CRISPER COVER
67WCI G490015-49
68TRIM
69WCI G174733
70WCI G174734
71WCI G490015-48
72BOLT-ROLLER (2)
73AHANGAR, RIGHT SIDE
73HANGAR, LEFT SIDE
74WCI G177343-10
75WCI G171654-56
76WCI G172436-17
77WCI G172410-10
78WCI G171608-19
79WCI G164571
80SPRING-ROLLER (2)
81SUPPORT, ROLLER (2)
82WCI G183799
