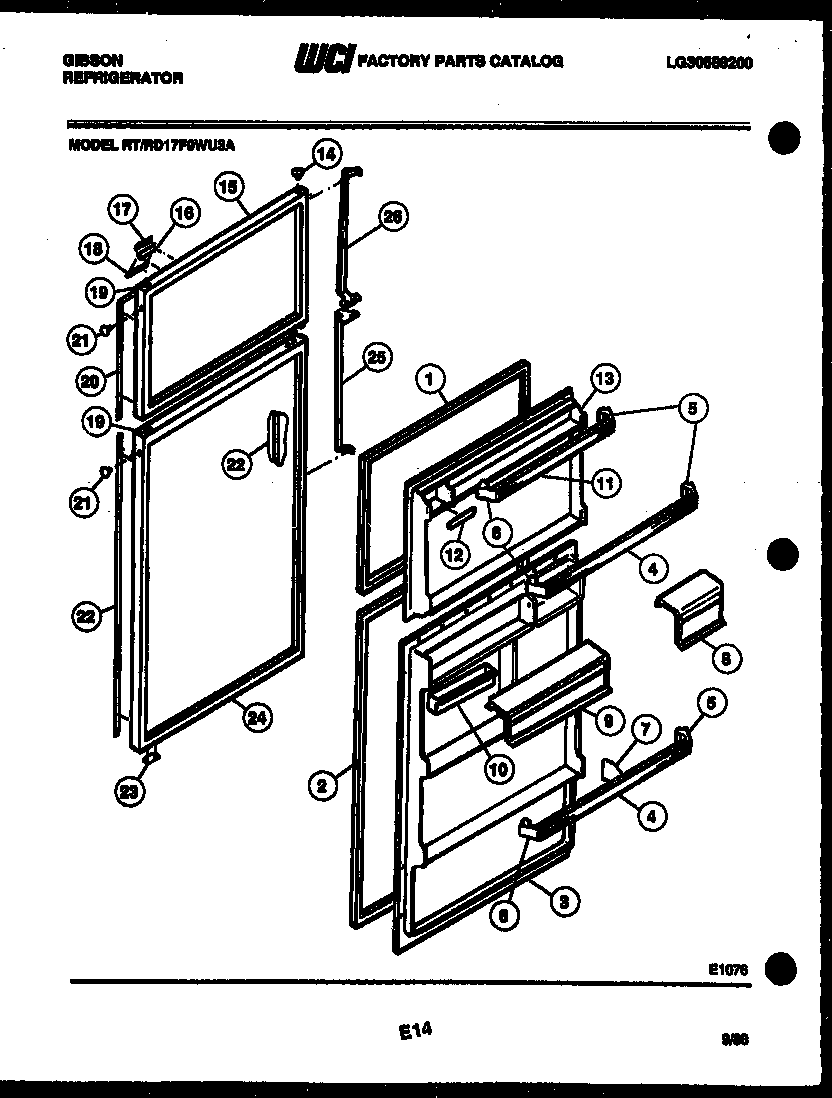

RD17F9WU3A 02 – DOOR PARTS

RD17F9WU3A 02 – DOOR PARTS

Written by

in

RD17F9WU3A 02 – DOOR PARTS

Products

PositionProduct
*81780WCI G89643
1GASKET-FREEZER
2218730603 Frigidaire Door Gasket
3WCI G187494-02
4RACK-REFR/FRZR (3)
5SUPPORT, RACK, RH, (PC) (2)
6SUPPORT, RACK, LH (PC) (2)
7SNUGGER-SHELF (2) (NON-ILLUSTRATED)
8DOOR-DAIRY RS
9DOOR, DAIRY (2)
10TRAY, UTILITY
11RACK-FRZR UPPER
12RACK, JUICE CAN
13A5304455651 Frigidaire Refrigerator Screw
13PANEL INTERIOR DOOR
14WCI G169332-09
14WCI G169332-10
14WCI G169332-11
14WCI G169332-01
14WCI G169332-08
15WCI G189018-11
15WCI G189018-10
15WCI G189018-08
15WCI G189018-09
15WCI G189018
16ATAPE-FRAME MOUNTING (NON-ILLUSTRATED)
16NAMEPLATE
17LABEL, UPPER
18LABEL-LOWER
19BEARING, HINGE (3)
20WCI G167404-01
21WCI G162977-11
21WCI G162977-08
21240494001 Frigidaire Refrigerator Plug Button
21WCI G162977-10
21WCI G162977-09
22TRIM (2)
23AWCI G185566
23STOP, DOOR. PC & FC (2)
24WCI G189020-11
24WCI G189020-10
24WCI G189020-09
24WCI G189020-08
24WCI G189020
25HANDLE ASSEMBLY
25AHANDLE ASSEMBLY
