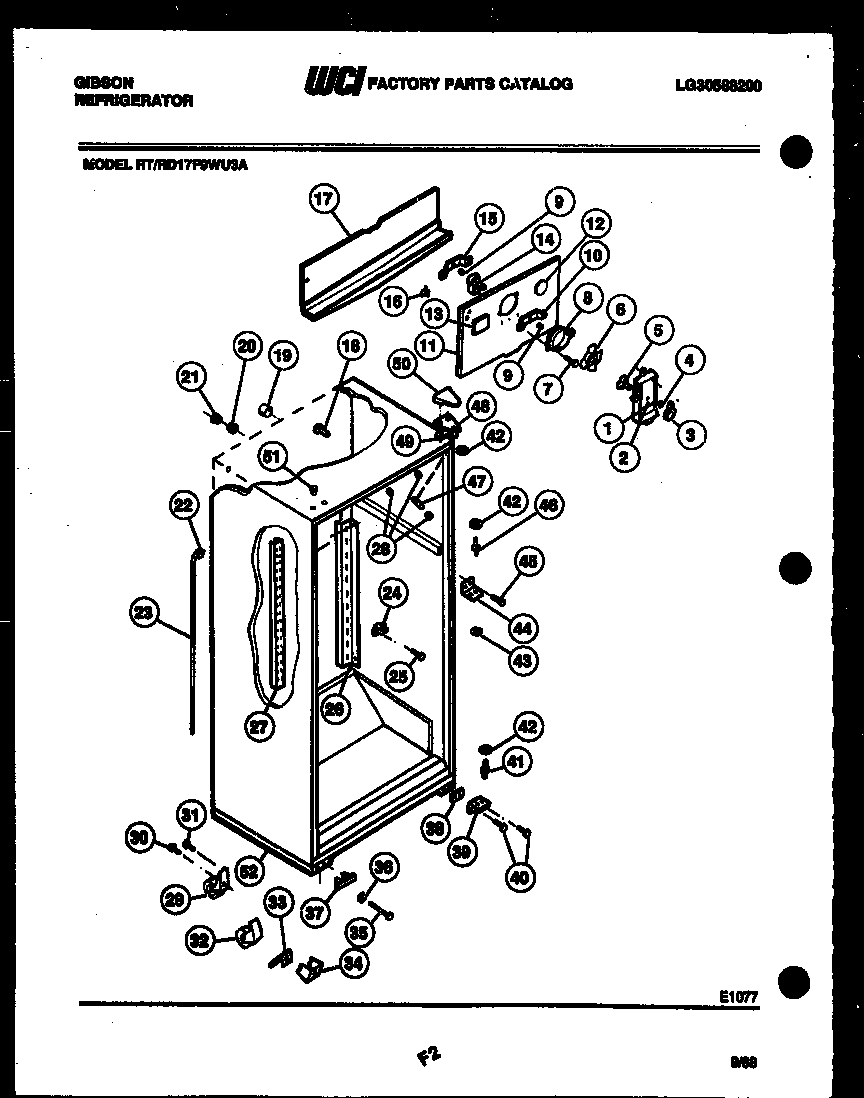

RD17F9WU3A 03 – CABINET PARTS

Products

PositionProduct
*81897BUTTON, LINER
1A5304455650 Frigidaire Refrigerator Screw
1WCI G163061-76
2LABEL, COVER
3KNOB
4NUT, DAMPER MOUNTING
5DAMPER FAN COVER
65308000010 Frigidaire Refrigerator Evaporator Fan Blade
8RING, FAN ORIFICE
9G187559 Frigidaire Refrigerator Bushing
10WCI G185302
11COVER-COIL
11ANUT, ORIFICE (2)
12PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
13BUTTON-DECORATIVE
145300158289 Frigidaire Evaporator Fan Motor
15WCI G185303
16WCI G164571
16A5304455651 Frigidaire Refrigerator Screw
17TROUGH-DRAIN
18WCI G163669
19TUBE, INSULATION (2)
20WCI G174733
21WCI G174734
22RING, SEAL (NON-ILLUSTRATED)
23TUBE, DRAIN
24SPOUT DRAIN TUBE
25PIN PUSH SPOUT (2)
26A5304455852 Frigidaire Refrigerator Screw
26CHANNEL, SHELF (2)
27ASCREW (3) (NON-ILLUSTRATED)
27WCI G189341
28A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
285304509705 Frigidaire Refrigerator Grommet
29ROLLER, REAR (2)
30BOLT ROLLER (2)
32ROLLER FRONT, ADJUSTABLE (2)
33SPRING-ROLLER (2)
34SUPPORT, ROLLER (2)
35BOLT-ROLLER (2)
36WASHER
37WCI G166912
38SHIM, HINGE
39BRACKET-HINGE
40ATAPPING, PLATE (2)
415303001321 Frigidaire Refrigerator Lower Hinge Pin
42WCI G103903
43WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
44BRACKET, HINGE CENTER
45AWASHER (2)
45SCREW, BRACKET MOUNTING (4)
46WCI G142220
47TRIM-CORNER, ALMOND (4)
47WCI G179684-10
47WCI G179684-09
47TRIM CORNER (4), AVOCADO
47WCI G179684-01
48BRACKET, TOP HINGE
48A241710601 Frigidaire Refrigerator Screw
49WCI G183861
50COVER, TOP HINGE, AVOCADO
50COVER HINGE, COFFEE
50COVER HINGE, WHITE
50COVER HINGE, WHEAT
50COVER, TOP HINGE, ALMOND
51WCI G174747-08
51WCI G174747-10
51WCI G174747-09
51WCI G174747-11
51WCI G174747–01
52CABINET BASE
