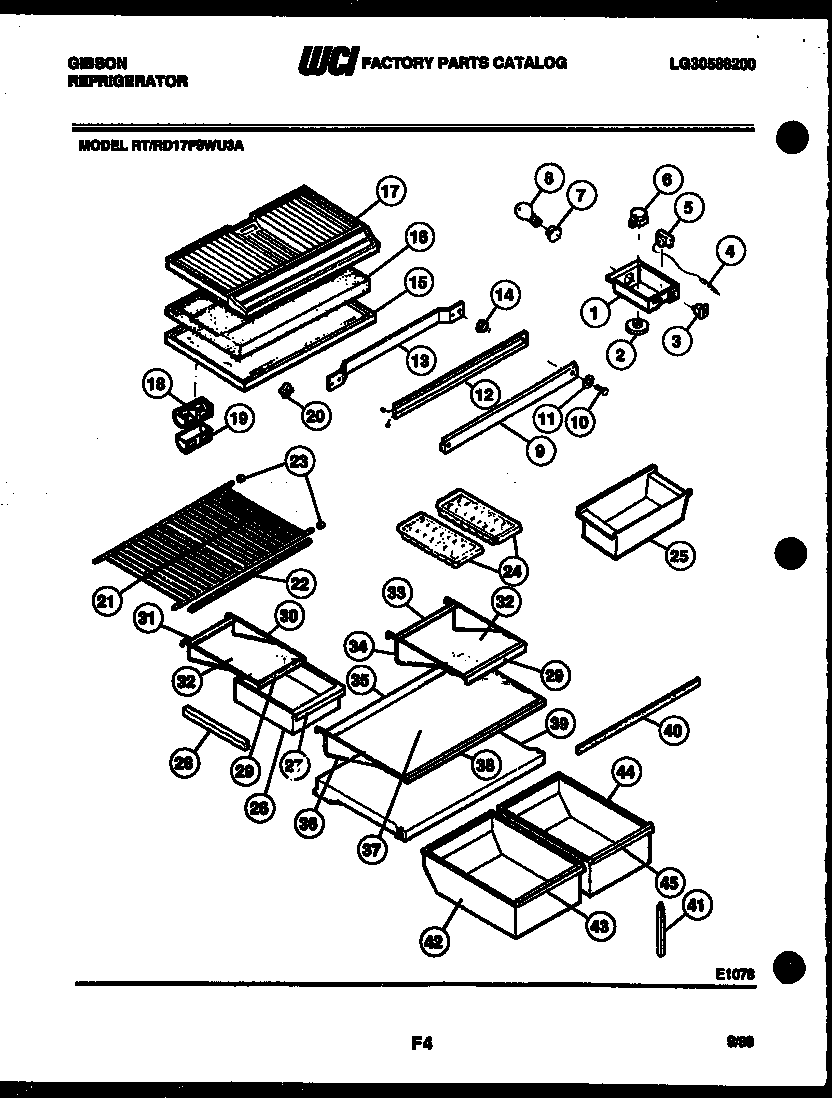

RD17F9WU3A 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI G176722-03
1A	WCI G188379-02
1B	5304455650 Frigidaire Refrigerator Screw
2	KNOB
3	WCI G178402-02
4	TUBE
5A	WCI G107080
5	COLD CONTROL
6	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A	5304455649 Frigidaire Refrigerator Screw
7	SOCKET LIGHT
8	316538904 Frigidaire Oven Lamp Light
9	WCI G490086-01
9	MULLION, AVOCADO
9	WCI G490086-10
9	WCI G490086-11
9	WCI G490086-09
10	SCREW, BRACKET MOUNTING (4)
11	WASHER (2)
12	HTR, CENTER RAIL
13	CLAMP, MULLION MOUNTING
14	SPACER, MULLION (2)
15A	SCREW (5)
15	TOP-REFRIGERATOR
16	DIVIDER, CENTER
16A	HARNESS, WIRING
17	BOTTOM, FC
18	DEFLECTOR AIR
19	WCI G162178
20	5309918806 Frigidaire Refrigerator Light Switch Door
21	WCI G177059-10
22	TRIM – SHELF
23	WCI G166495-01
24	215667501 Frigidaire Refrigerator Ice Tray Primary
25	WCI G163022-03
26	WCI G176918-12
27	WCI G177343-10
28A	HANGAR, RIGHT SIDE
28B	SCREW-HANGER (2) (NON-ILLUSTRATED)
28	HANGAR, LEFT SIDE
29	WCI G172410-18
30	WCI G187218-07
31	TRIM, SHELF, REAR (MEAT KEEPER)
32	WCI G171654-55
33	TRIM, SHELF, REAR (3) (REGULAR)
34	WCI G171608-18
35	WCI G172436-17
36	WCI G171608-19
37	WCI G171654-56
38	WCI G172410-10
39	COVER-CRISPER
40	GASKET, COVER
41	SUPPORT, CRISPER COVER
42	WCI G490015-49
43	TRIM
44	PAN-CRISPER-RH
45	TRIM-PAN-RH
