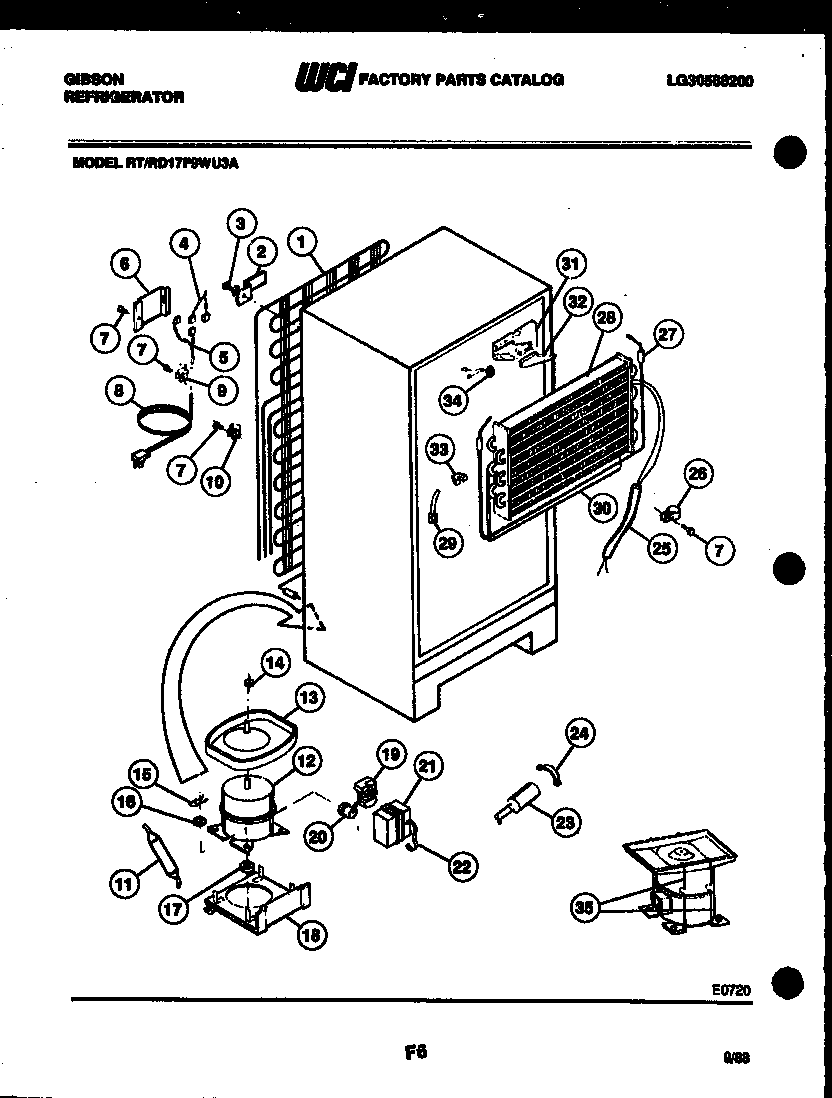

RD17F9WU3A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*82065	HOT TUBE REPAIR KIT
1	WCI G178225
2	BRACKET-CONDENSER MOUNTING (4)
3	5308000039 Frigidaire Refrigerator Screw
4	HARNESS, WIRING
5	HARNESS-COMPRESSOR
6	WCI G183584
7	5304455651 Frigidaire Refrigerator Screw
8	CORD, SERVICE
9	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
10	CLAMP-CABLE
11	5303305677 Frigidaire Replacement Filter Dryer Filters
12	WCI 3916004
13	DEFROST PAN & NUT
14	NUT, LOCK
15	CLIP, COMPRESSOR MOUNTING (4)
16	WASHER, COMPRESSOR MOUNTING (4)
17	218513300 Frigidaire Refrigerator Compressor Mount Grommet
18	PLATE
19	WCI G182225-18
20	WCI G188877
22	5303006412 Frigidaire Refrigerator Cover Mounting Strap
23	CAPACITOR
24	STRAP-CAPACITOR
25	HEAT-EXCH
26	240396801 Frigidaire Refrigerator Tube Clamp
27	HEATER, DEFROST
28	EVAPORATOR
29	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
30	INSULATOR
31	BLOCK, EVAPORATOR, RH
32	PLUG, EVAPORATOR INSULATION BLOCK, R H
33	BLOCK, LEFT SIDE
34	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
35	PAN RETAINER KIT-SERVICE
