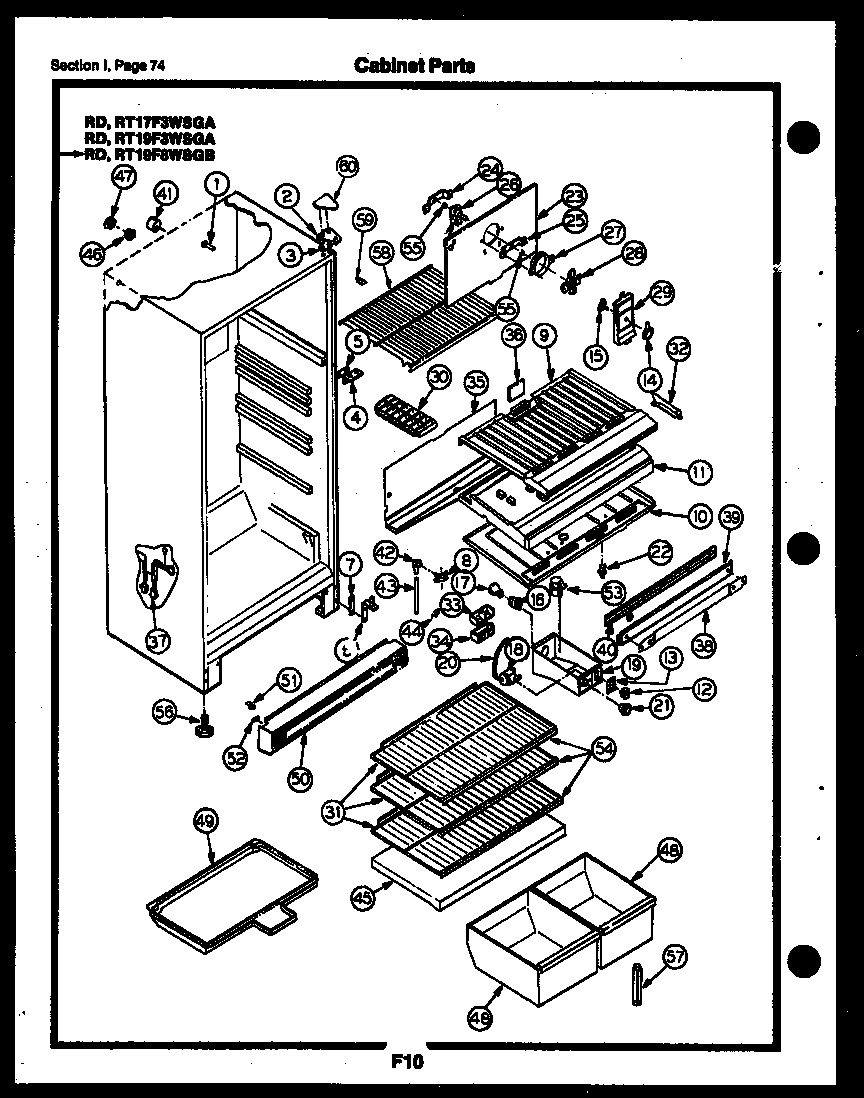

RD19F3WSGA 37 – CABINET PARTS

Products

Position	Product
1	WCI G163669
2	BRACKET, TOP HINGE
2D	WASHER, NYLON
2B	WCI G174747–01
2A	WASHER, NYLON
2C	241710601 Frigidaire Refrigerator Screw
3	WCI G183861
4D	WCI G103903
4A	SCREW, BRACKET MOUNTING (4)
4B	WCI G142220
4C	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
4	WCI G162384
5	SHIM, HINGE
6A	WCI G141673
6	BRACKET-LOWER HINGE
6B	TAPPING PLATE (2)
6E	SCREW – 1/4 X 1 (2)
6D	NUT, SPEED (2)
6C	WCI G142361
7	SHIM, HINGE
8A	PIN PUSH SPOUT (2)
8	SPOUT DRAIN TUBE
9	DIVIDER-BTM
10A	SCREW (5)
10	DIVIDER-TOP
11	DIVIDER-STYRO
12	SWITCH – SLIDE (NON-ILLUSTRATED)
13	LABEL-CONTROL BOX (NON-ILLUSTRATED)
14	KNOB-DAMPER
15A	NUT, DAMPER MOUNTING
15	DAMPER FAN COVER
16	SOCKET LIGHT
17	316538904 Frigidaire Oven Lamp Light
18	COLD CONTROL
18A	WCI G107080
19	WCI G174765-03
20	TUBE
21	KNOB-TEMP CONTROL
22	5309918806 Frigidaire Refrigerator Light Switch Door
23	WCI G162050-02
24	BRACKET, REAR MOTOR MOUNTING
25	BRACKET, FRONT MOTOR MOUNTING
26	5300158289 Frigidaire Evaporator Fan Motor
27A	NUT, ORIFICE (2)
27	RING, FAN ORIFICE
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29B	5304455650 Frigidaire Refrigerator Screw
29	WCI G162512-08
29A	WCI G186247
29C	WCI G186248
