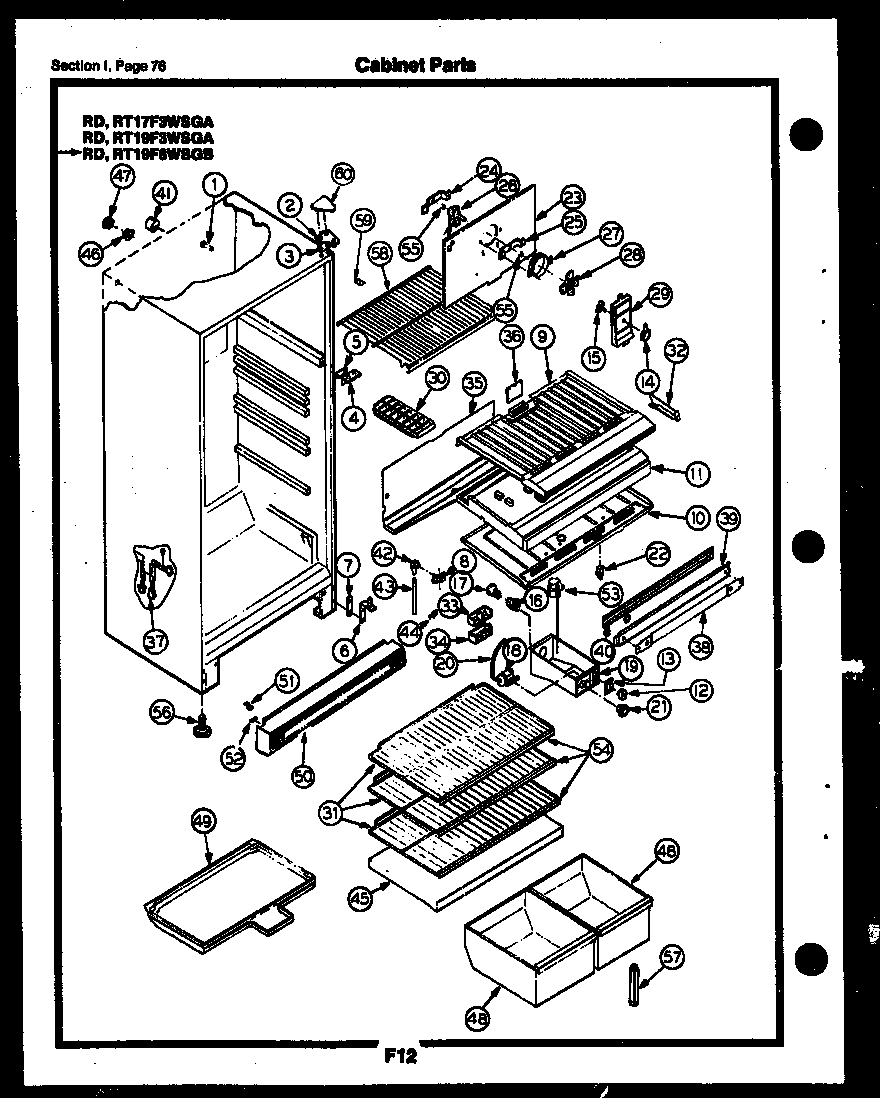

RD19F3WSGA 38 – CABINET PARTS

Products

Position	Product
*22931	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
*22934	BUTTON, PLUG, WATER INLET
*22932	BUTTON-DECORATIVE
*22935	BUTTON, PLUG, ICE MAKER HARNESS
*22937	WCI G175254
*22938	BUTTON, PLUG, LINER (2)
*22941	WCI G181973
*22946	WCI G183100-38
30	215667501 Frigidaire Refrigerator Ice Tray Primary
31	WCI G168209-03
32	WCI G162176
32A	WCI G162177
33	DEFLECTOR AIR
34	WCI G162178
35	WCI G170071
36	PAD, FOAM (2)
37	WCI G174831
38	STRAP, MULLION MOUNTING
39	WCI G162051
40	WCI G177254
41	TUBE, INSULATION (2)
42	ELBOW, DRAIN
43	DRAIN TUBE (CUT TO LENGTH)
44	240396801 Frigidaire Refrigerator Tube Clamp
45	WCI G161901-02
46	WCI G174733
47	WCI G174734
48	WCI G179706-28
48A	WCI G179706-31
49	PAN, DEFROST
50	WCI G161904-01
51	WCI G162994
52	PLUG – LOWER GRILLE
53A	5304455649 Frigidaire Refrigerator Screw
53	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
54	TRIM – SHELF – FR.
54A	CLIP – TRIM (12)
55	G187559 Frigidaire Refrigerator Bushing
56	WCI G45490
57	WCI G166310-01
58A	WCI G184319-03
58B	WCI G163105 (8)
58C	WCI G163104 (8)
59	WCI G164571
59A	5304455651 Frigidaire Refrigerator Screw
60	COVER HINGE, WHITE
