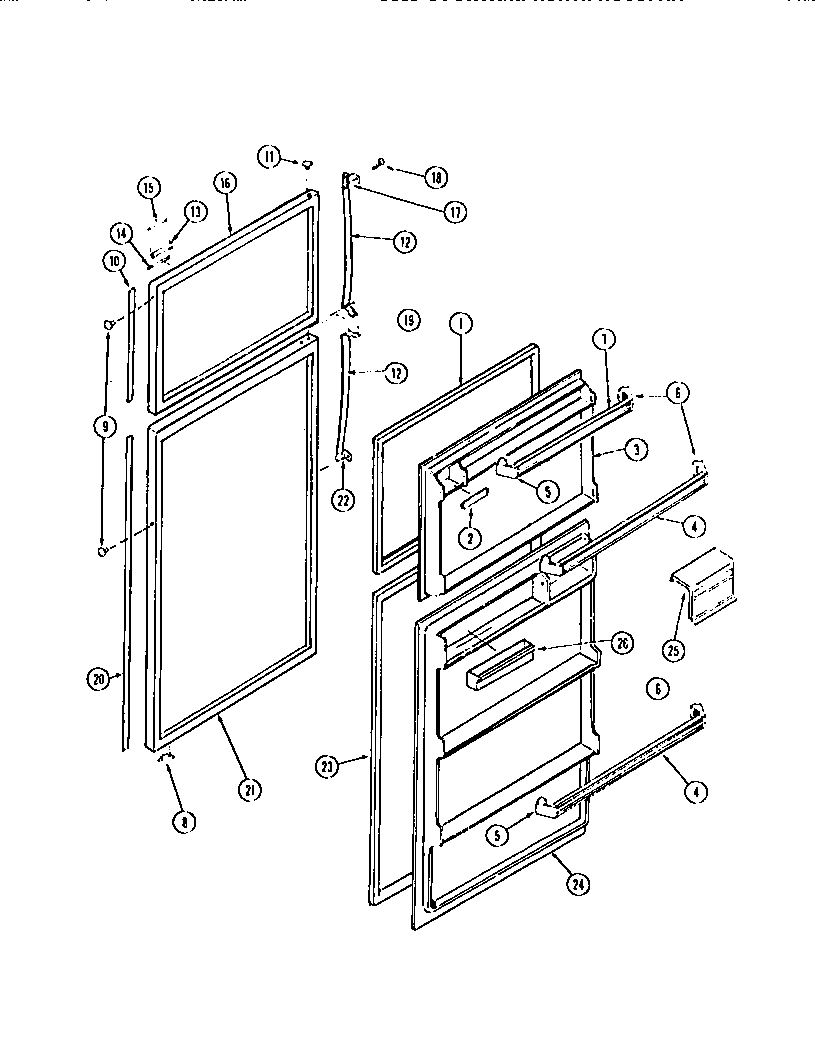

RD19F6DT3B 02 – DOOR

Products

Position	Product
*62041	WCI G168981-11
*62040	SNUGGER RACK (NON-ILLUSTRATED)
1	WCI G186923-12
2	RACK, JUICE CAN
3	PANEL, INNER
4	RACK, DOOR (2)
5	SUPPORT, RACK, LH (PC) (2)
6	SUPPORT, RACK, RH, (PC) (2)
7	WCI G161019-61
8	STOP, DOOR. PC & FC (2)
9	WCI G162977-11
11	WCI G169332-11
12	WCI G170495-24
13	NAMEPLATE
14	LABEL, LOWER
15	LABEL, UPPER
16	PANEL, OUTER, ALMOND
17	WCI G179800
18	WCI G185566
19	WCI G187329-01
20	TRIM-REFRIG DOOR
21A	BEARING, HINGE (3)
21	REFRIGERATOR DOOR-ALMOND
22	WCI G179801
23	GASKET
24	WCI G187452-02
24A	5304455651 Frigidaire Refrigerator Screw
25	DOOR, DAIRY (2)
26	TRAY, UTILITY
