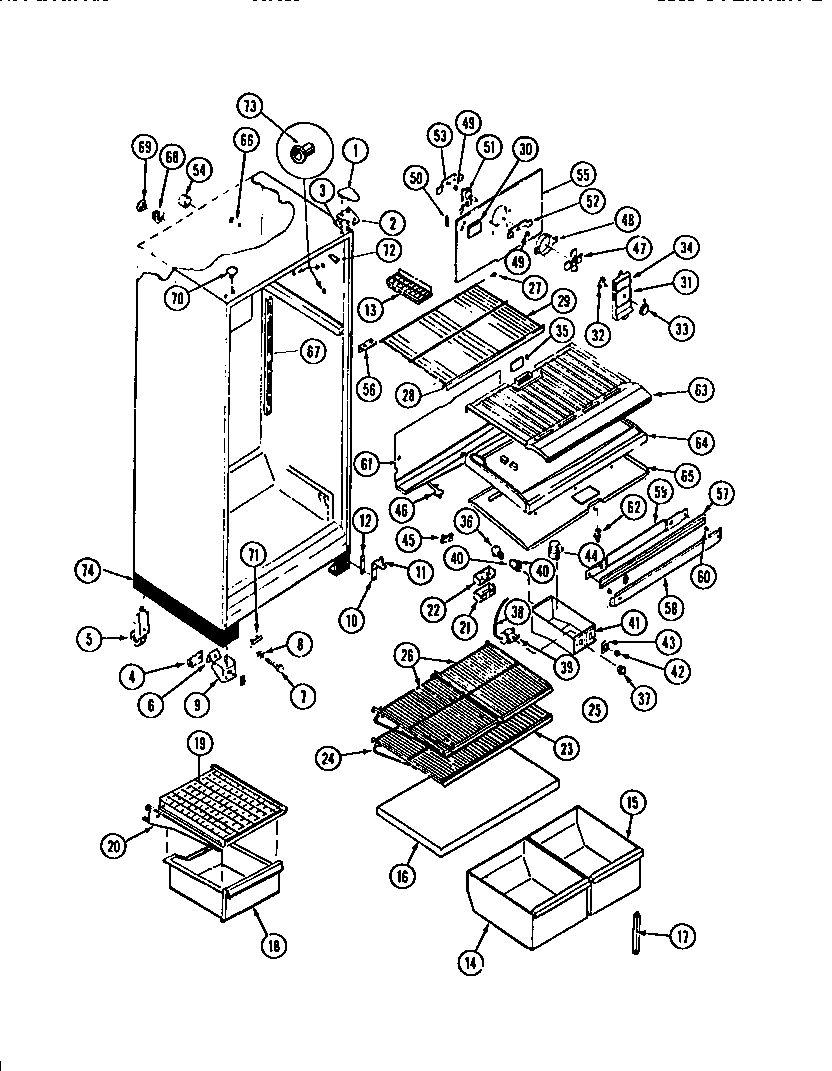

RD19F6FT3A 03 – CABINET

RD19F6FT3A 03 – CABINET

Written by

in

RD19F6FT3A 03 – CABINET

Products

Position	Product
*62046	BUTTON, LINER
*62048	HARNESS, WIRING
*62047	BUTTON, PLUG, LINER (2)
1	COVER, TOP HINGE, AVOCADO
2	BRACKET, TOP HINGE
2A	241710601 Frigidaire Refrigerator Screw
3	WCI G183861
3A	WCI G103903
3B	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
4	ROLLER FRONT, ADJUSTABLE (2)
5	ROLLER, REAR (2)
5A	5308000039 Frigidaire Refrigerator Screw
5B	BOLT ROLLER (2)
6	SPRING-ROLLER (2)
7	BOLT-ROLLER (2)
7A	WASHER
9	SUPPORT, ROLLER (2)
10	BRACKET, HINGE, LOWER
11	5303001321 Frigidaire Refrigerator Lower Hinge Pin
12	SHIM, HINGE
13	215667501 Frigidaire Refrigerator Ice Tray Primary
14	PAN-CRISPER-LS
15	PAN-CRISPER-RS
16A	GASKET, COVER
16	COVER, CRISPER
17	SUPPORT, CRISPER COVER
18	WCI G187181-01
19	WCI G187195-01
20A	RAIL-STRAIGHT (NON-ILLUSTRATED)
20	WCI G187213-03
21	WCI G162178
22	DEFLECTOR AIR
23	TRIM
24	FRAME-FULL SHELF
25	TRIM (3)
26	FRAME-HALF (2)
27	WCI G166495-01
28	TRIM
29	SHELF
30	BUTTON-DECORATIVE
31A	5304455650 Frigidaire Refrigerator Screw
31	WCI G163061-76
32A	NUT, DAMPER MOUNTING
32	DAMPER FAN COVER
33	KNOB
34	WCI G185232
35	PAD, FOAM (2)
36	316538904 Frigidaire Oven Lamp Light
37	KNOB
38	TUBE
39A	WCI G107080
39	COLD CONTROL
40	SOCKET LIGHT
41	WCI G176722-03
42	WCI G178402-02
43	WCI G188379-02
44A	5304455649 Frigidaire Refrigerator Screw
44	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
45A	PIN PUSH SPOUT (2)
45	SPOUT DRAIN TUBE
46A	RING, SEAL (NON-ILLUSTRATED)
46	TUBE, DRAIN
46B	WCI G101747
47	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
48	RING, FAN ORIFICE
49	WCI G157668
50	WCI G164571
51	5300158289 Frigidaire Evaporator Fan Motor
52	WCI G185302
53	WCI G185303
54	TUBE, INSULATION (2)
55A	NUT, ORIFICE (2)
55	WCI G177529
56	BRACKET, HINGE CENTER
56C	WCI G142220
56A	WASHER (2)
56B	SCREW, BRACKET MOUNTING (4)
57	WCI G177254
58	WCI G180373-08
59	STRAP, MULLION MOUNTING
60	SPACER, MULLION (2)
61	WCI G177534
62	5309918806 Frigidaire Refrigerator Light Switch Door
63	BOTTOM, FC
64	DIVIDER, CENTER
65A	SCREW (5)
65	TOP, PC
66	WCI G163669
67A	5304455852 Frigidaire Refrigerator Screw
67D	SPACER, FREEZER (2)
67	CHANNEL, SHELF (2)
67B	CHANNEL, CENTER SHELF, MOUNTING
67C	SCREW (3) (NON-ILLUSTRATED)
68	WCI G164733
69	WCI G164734
70	WCI G174747-08
71	WCI G166912
72	TRIM CORNER (4), AVOCADO
73A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
73	5304509705 Frigidaire Refrigerator Grommet
74	WCI G490004-02
