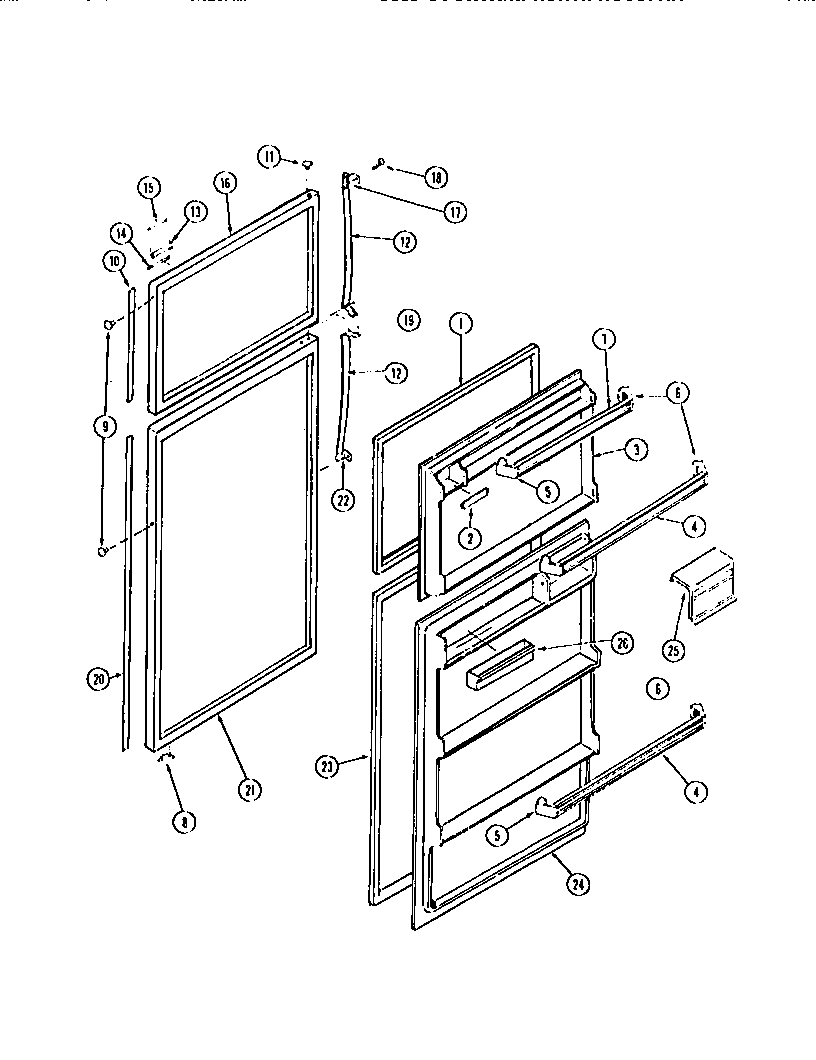

RD19F6FT3B 02 – DOOR

Products

Position	Product
*62040	SNUGGER RACK (NON-ILLUSTRATED)
*62044	KIT-DOOR CONV, AVOCADO
1	WCI G186923-12
2	RACK, JUICE CAN
3	PANEL, INNER
4	RACK, DOOR (2)
5	SUPPORT, RACK, LH (PC) (2)
6	SUPPORT, RACK, RH, (PC) (2)
7	WCI G161019-61
8	STOP, DOOR. PC & FC (2)
9	WCI G162977-08
11	WCI G169332-08
12	WCI G170495-24
13	NAMEPLATE
14	LABEL, LOWER
15	LABEL, UPPER
16	PANEL, OUTER, AVOCADO
17	WCI G179800
18	WCI G185566
19	WCI G187329-01
20	TRIM-REFRIG DOOR
21	REFRIGERATOR DOOR-AVOCADO
21A	BEARING, HINGE (3)
22	WCI G179801
23	GASKET
24	WCI G187452-02
24A	5304455651 Frigidaire Refrigerator Screw
25	DOOR, DAIRY (2)
26	TRAY, UTILITY
