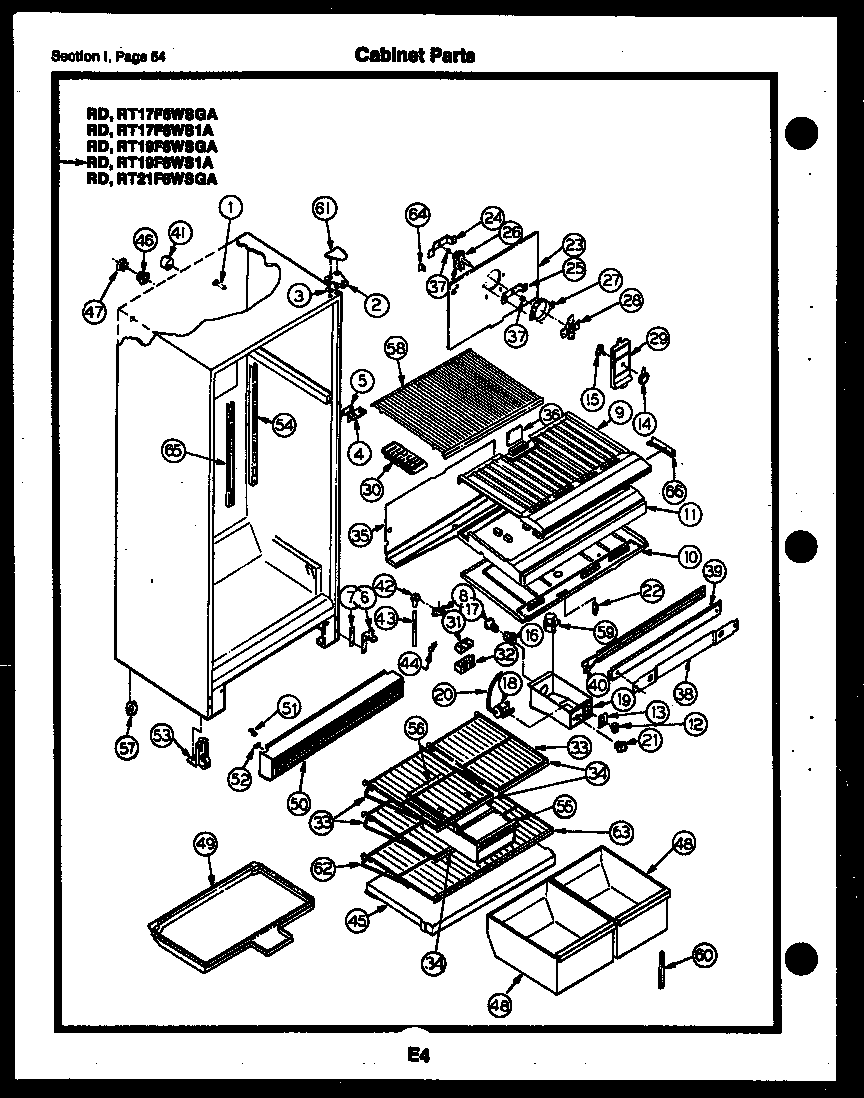

RD19F6WS1A 27 – CABINET PARTS

RD19F6WS1A 27 – CABINET PARTS

Written by

in

RD19F6WS1A 27 – CABINET PARTS

Products

PositionProduct
1WCI G163669
2BRACKET, TOP HINGE
2BWASHER, NYLON
2AWCI G174747–01
2C241710601 Frigidaire Refrigerator Screw
3WCI G183861
4BWCI G142220
4WCI G162384
4ASCREW, BRACKET MOUNTING (4)
5SHIM, HINGE
6BWCI G141673
6BRACKET-LOWER HINGE
6AWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
6DWCI G103903
6HNUT, SPEED (2)
6FWASHER, NYLON
6GWCI G142361
6CTAPPING PLATE (2)
6ISCREW – 1/4 X 1 (2)
7SHIM, HINGE
8SPOUT DRAIN TUBE
8APIN PUSH SPOUT (2)
9DIVIDER-BTM
10DIVIDER-TOP
10AWCI G162673 (3)
11DIVIDER-STYRO
12SWITCH – SLIDE (NON-ILLUSTRATED)
13LABEL – CONTROL BOX
14WCI G162747-06
15DAMPER FAN COVER
15ANUT, DAMPER MOUNTING
16SOCKET LIGHT
17316538904 Frigidaire Oven Lamp Light
18COLD CONTROL
18AWCI G107080
19A5304455650 Frigidaire Refrigerator Screw
19WCI G174765-03
20TUBE
21KNOB-TEMP CONTROL
225309918806 Frigidaire Refrigerator Light Switch Door
23WCI G162050-02
24BRACKET, REAR MOTOR MOUNTING
25BRACKET, FRONT MOTOR MOUNTING
