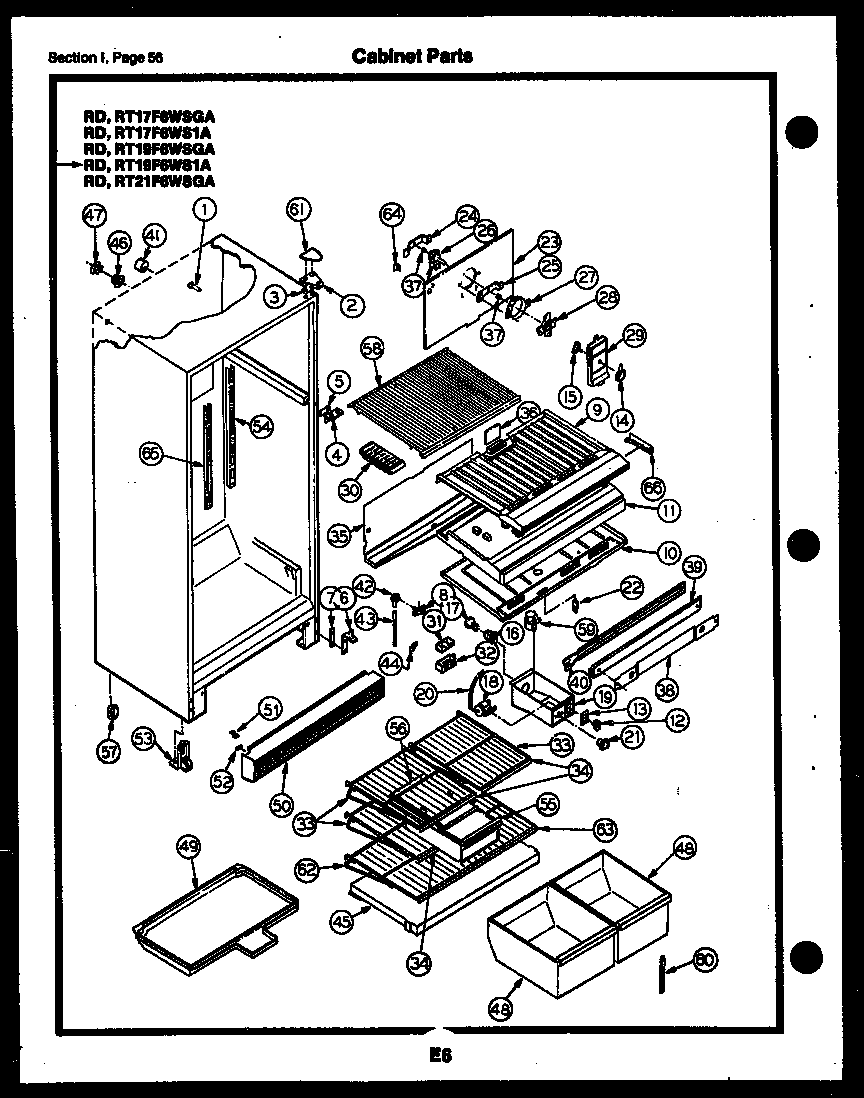

RD19F6WSGA 28 – CABINET PARTS

Products

Position	Product
26	5300158289 Frigidaire Evaporator Fan Motor
27A	NUT, ORIFICE (2)
27	RING, FAN ORIFICE
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29A	LABEL – LOWER
29B	LABEL – UPPER
29	WCI G162512-08
30	215667501 Frigidaire Refrigerator Ice Tray Primary
31	WCI G162178
32	DEFLECTOR AIR
33	WCI G162129-16
34A	CLIP – TRIM (12)
34	WCI G141727-43
35	WCI G170071
36	PAD, FOAM (2)
37	G187559 Frigidaire Refrigerator Bushing
38	STRAP, MULLION MOUNTING
39	WCI G162051
40	WCI G177254
41	TUBE, INSULATION (2)
42	ELBOW, DRAIN
43	DRAIN TUBE (CUT TO LENGTH)
44A	5304455651 Frigidaire Refrigerator Screw
44	240396801 Frigidaire Refrigerator Tube Clamp
45	WCI G161901-02
45A	WCI G180108-02
46	WCI G174733
47	WCI G174734
48	WCI G179706-32
48A	WCI G179706-33
49	PAN, DEFROST
50	WCI G161904-01
51	WCI G162994
52	PLUG – LOWER GRILLE
53	ROLLER ASSEMBLY – FRONT (2)
53A	BOLT, HOUSING TO FRONT RAIL (2)
54	CHANNEL, SHELF (2)
54A	5304455852 Frigidaire Refrigerator Screw
55	MEAT PAN
56	WCI G177106-01
57	ROLLER (2)
57B	NUT, DAMPER MOUNTING
57A	WCI G162809
58A	SUPPORT, SHELF (8)
58B	SCREW – SUPPORT TO LINER (8)
58	WCI G163002-07
