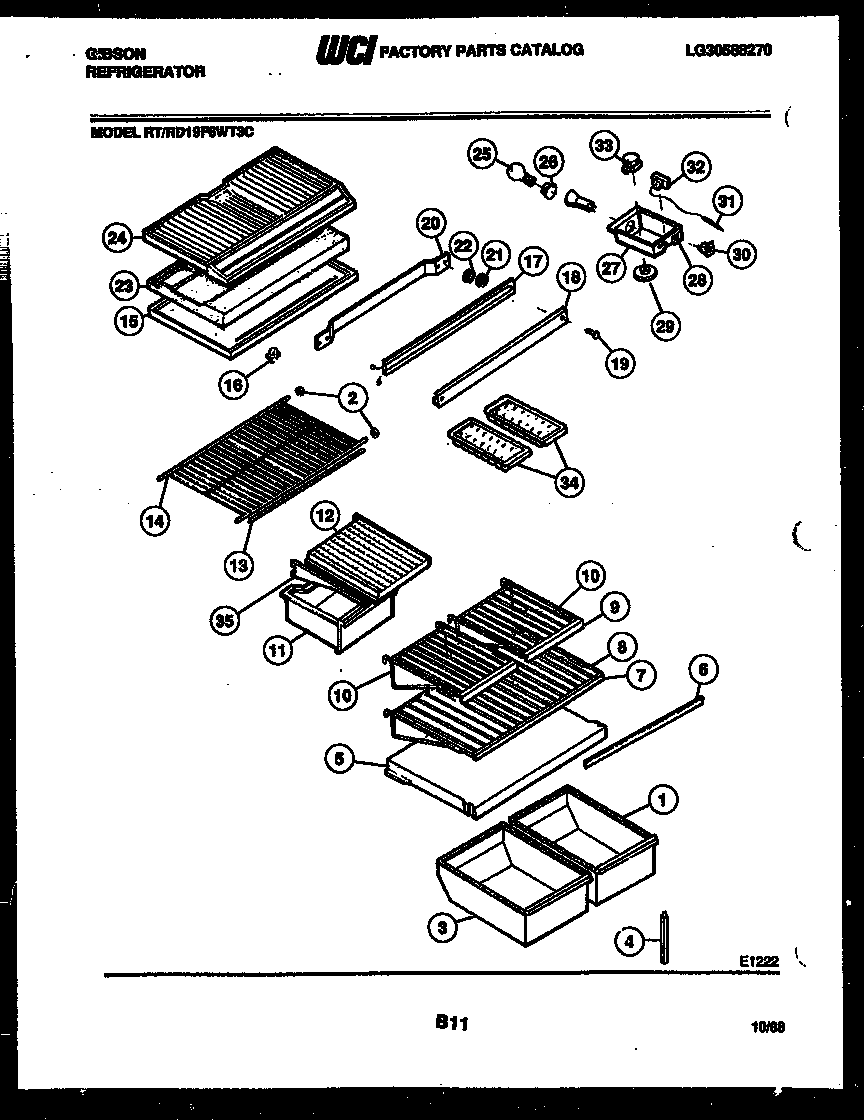

RD19F6WT3C 04 – SHELVES AND SUPPORTS

Products

Position	Product
*12958	RAIL-STRAIGHT (NON-ILLUSTRATED)
1	PAN-CRISPER-RS
2	END CAP-SHELF,PROTECTOR
3	PAN-CRISPER-LS
4	SUPPORT, CRISPER COVER
5	COVER, CRISPER
6	GASKET, COVER
7	TRIM
8	FRAME-FULL SHELF
9	TRIM (3)
10	FRAME-HALF (2)
11	WCI G187181-01
12	WCI G187195-01
13	TRIM
14	SHELF
15	TOP-REFRIGERATOR
15A	SCREW (5)
16	5309918806 Frigidaire Refrigerator Light Switch Door
17	WCI 3018916
18	MULLION-AVOC
18	WCI 3200368
18	WCI 3200370
18	WCI 3200366
18	WCI 3200369
19	SCREW, BRACKET MOUNTING (4)
20	STRAP, MULLION MOUNTING
21	WASHER (2)
22	SPACER, MULLION (2)
23	DIVIDER, CENTER
24	BOTTOM, FC
25	316538904 Frigidaire Oven Lamp Light
26	SOCKET LIGHT
27	CONTROL BOX
27A	5304455650 Frigidaire Refrigerator Screw
28	WCI G188379-02
29	KNOB
30	WCI G178402-02
31	TUBE
32	WCI 3200810
32A	WCI G107080
33	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
33A	5304455649 Frigidaire Refrigerator Screw
34	215667501 Frigidaire Refrigerator Ice Tray Primary
35	WCI G187213-03
