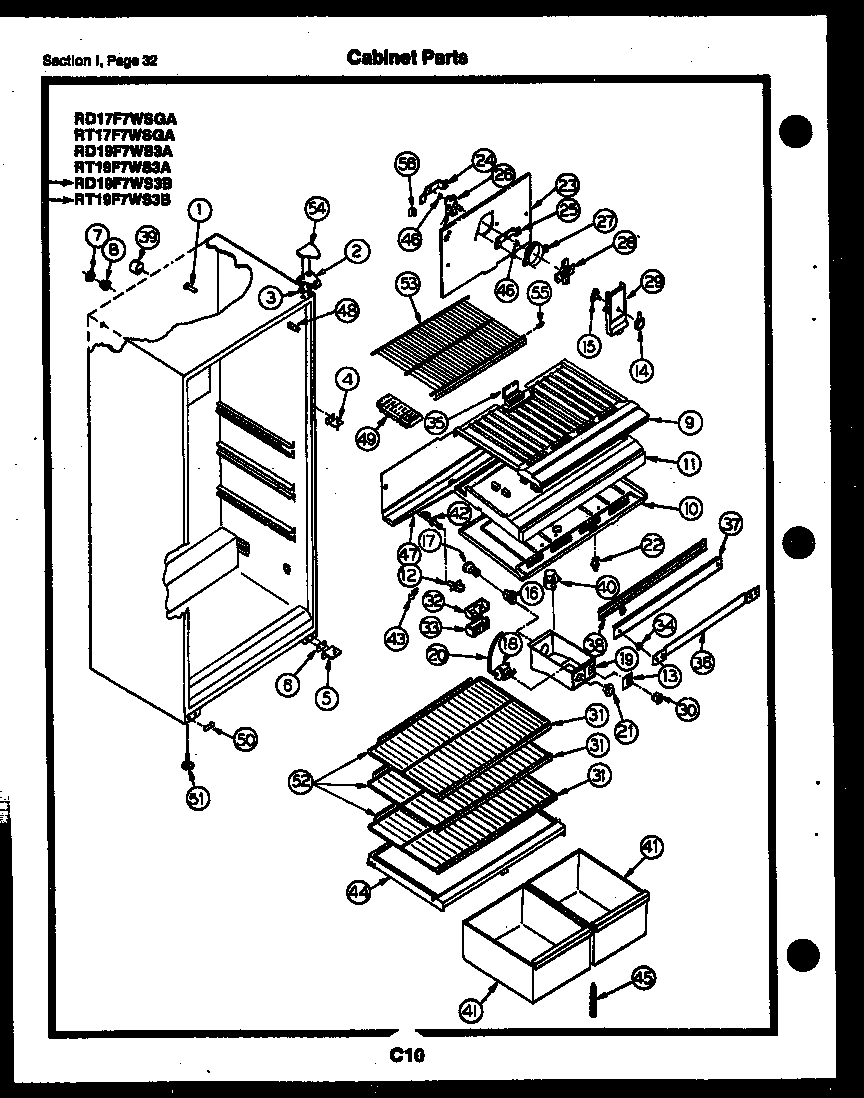

RD19F7WS3B 16 – CABINET PARTS

Products

Position	Product
1	WCI G163669
2C	WCI G174747--01
2B	WCI G103903
2	BRACKET, TOP HINGE
2D	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
2A	241710601 Frigidaire Refrigerator Screw
3	WCI G183861
4	BRACKET, HINGE CENTER
4A	SCREW, BRACKET MOUNTING (4)
4B	WCI G142220
5A	5303001321 Frigidaire Refrigerator Lower Hinge Pin
5C	TAPPING PLATE (2)
5	BRACKET, HINGE, LOWER
6	SHIM, HINGE
7	WCI G174733
8	WCI G174734
9	WCI G490022-02
10A	SCREW (5)
10	TOP, PC
11	DIVIDER, CENTER
12A	PIN PUSH SPOUT (2)
12	SPOUT DRAIN TUBE
13	LABEL - CONTROL BOX
14	WCI G162747-06
15A	NUT, DAMPER MOUNTING
15	DAMPER FAN COVER
16	SOCKET LIGHT
17	316538904 Frigidaire Oven Lamp Light
18	COLD CONTROL
18A	WCI G107080
19	WCI G174765-03
20	TUBE
21	KNOB-TEMP CONTROL
22	5309918806 Frigidaire Refrigerator Light Switch Door
23	WCI G177529
24	BRACKET, REAR MOTOR MOUNTING
25A	5304455650 Frigidaire Refrigerator Screw
25	BRACKET, FRONT MOTOR MOUNTING
26	5300158289 Frigidaire Evaporator Fan Motor
27A	NUT, ORIFICE (2)
27	RING, FAN ORIFICE
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	WCI G163061-76
