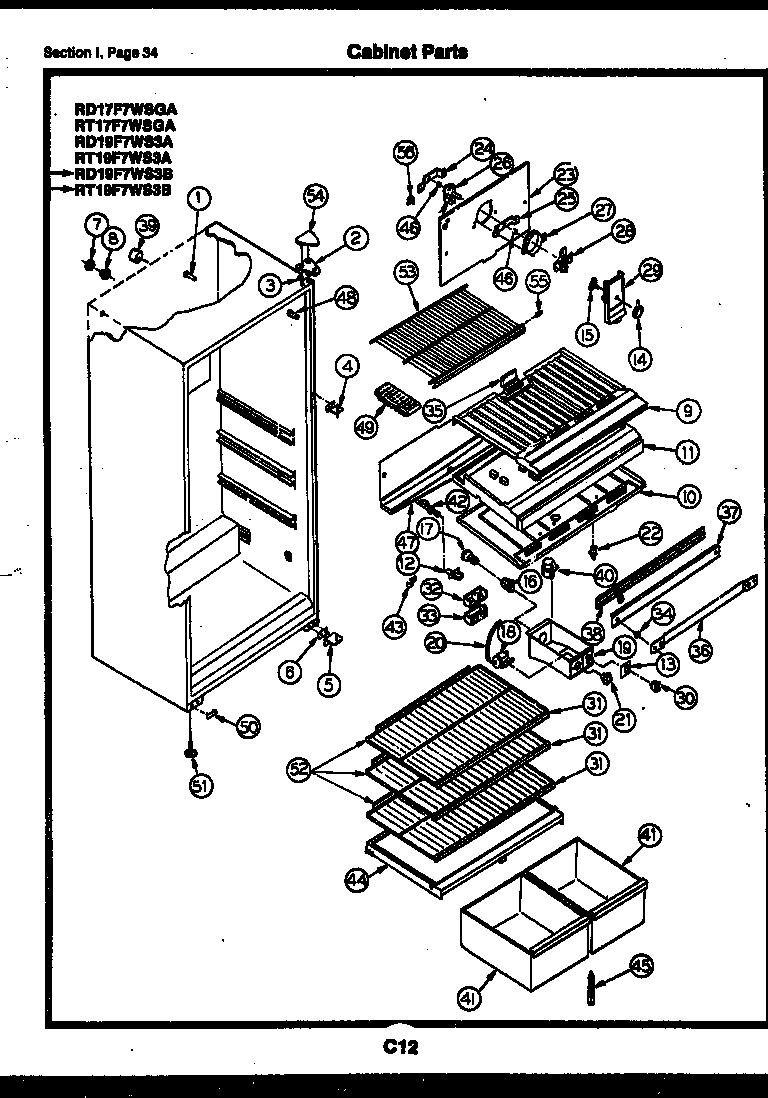

RD19F7WS3B 17 – CABINET PARTSadmin2025-04-26T08:42:22+00:00RD19F7WS3B 17 – CABINET PARTS
Products
| Position | Product |
|---|
| *21533 | WCI H162892-01 |
| *21530 | HARNESS, WIRING |
| *21540 | SERVICE DATA SHEET |
| *21543 | WCI G490004-02 |
| *21531 | BUTTON-DECORATIVE |
| *21535 | WCI G162659 (3) |
| *21541 | WCI G183100-54 |
| *21537 | BOOK, INSTRUCTION |
| 30 | SWITCH - SLIDE (NON-ILLUSTRATED) |
| 31A | CLIP - TRIM (12) |
| 31 | WCI G141727-44 |
| 32 | DEFLECTOR AIR |
| 33 | WCI G162178 |
| 34A | WASHER (2) |
| 34 | SPACER, MULLION (2) |
| 35 | PAD, FOAM (2) |
| 36 | STRAP, MULLION MOUNTING |
| 37 | MULLION-WHTE |
| 38 | WCI G177254 |
| 39 | TUBE, INSULATION (2) |
| 40A | 5304455649 Frigidaire Refrigerator Screw |
| 40 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 41 | PAN-LARGE RS |
| 41A | PAN-SMALL LS |
| 42A | RING, SEAL (NON-ILLUSTRATED) |
| 42 | TUBE, DRAIN |
| 43 | WCI G101747 |
| 44A | GASKET, COVER |
| 44 | COVER, CRISPER |
| 45 | SUPPORT, CRISPER COVER |
| 46 | G187559 Frigidaire Refrigerator Bushing |
| 47 | WCI G177534 |
| 48 | WCI G179684-01 |
| 49 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 50 | WCI G166912 |
| 51 | LEG-LEVELING (2) |
| 51A | NUT, ANCHOR (2) |
| 52 | WCI G179139-03 |
| 53 | WCI G184572-04 |
| 54 | COVER HINGE, WHITE |
| 55 | WCI G166495-01 |
| 56 | WCI G164571 |
| 56A | 5304455651 Frigidaire Refrigerator Screw |
