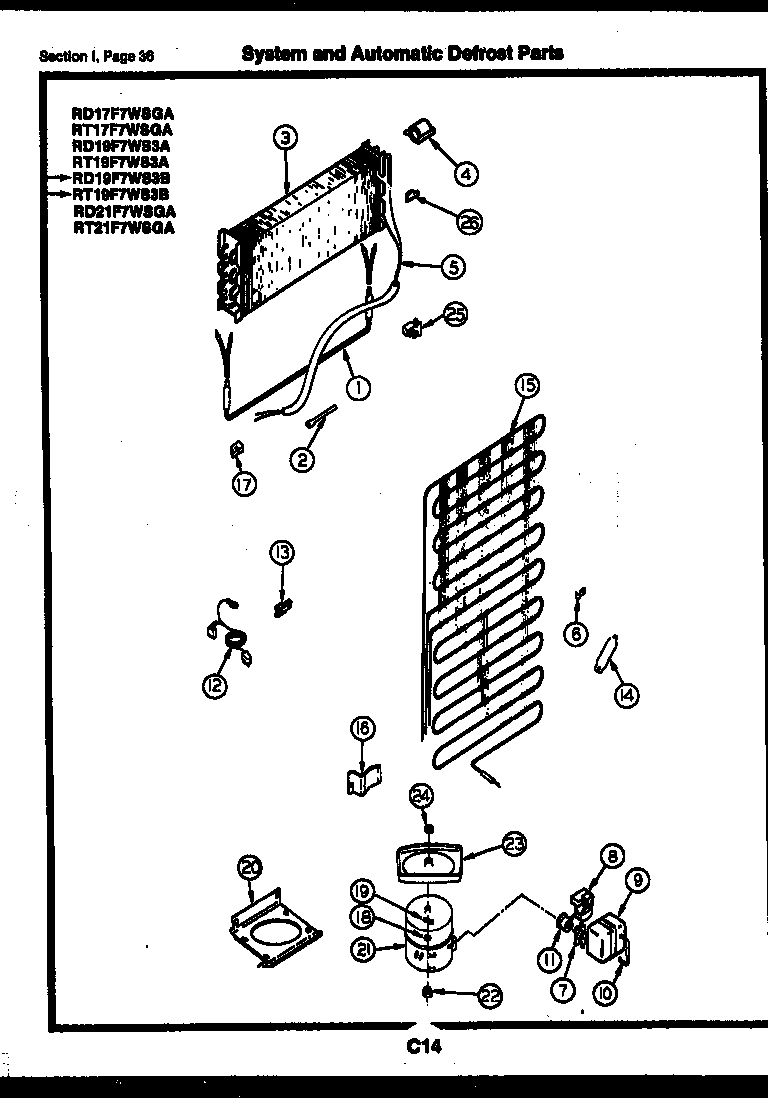

RD19F7WS3B 18 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*21606WCI G179024
15317842502 Frigidaire Defrost Heater
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5HEAT EXCHANGER
6WCI G101747
6AWCI G160578 (6)
8WCI G182225-12
9WCI G185792
10STRAP-COVER
11WCI G185797
12CORD, SERVICE
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145303305677 Frigidaire Replacement Filter Dryer Filters
14A5304455651 Frigidaire Refrigerator Screw
14BWASHER
15WCI G162739
16BRACKET-CONDENSER MOUNTING (4)
17BLOCK, EVAPORATOR, LH
18WASHER, COMPRESSOR MOUNTING (4)
19CLIP, COMPRESSOR MOUNTING (4)
20PLATE, COMPRESSOR MOUNTING
21COMPRESSOR
22218513300 Frigidaire Refrigerator Compressor Mount Grommet
23DEFROST PAN
24NUT, LOCK
25BLOCK, EVAPORATOR, RH
26PLUG, EVAPORATOR INSULATION BLOCK, R H
